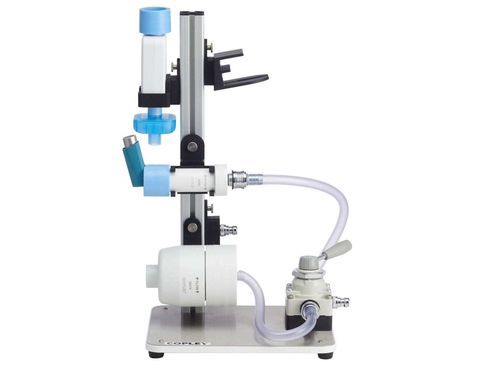

Particle size testing machine Workstation™ ITW – DDU

manualfor inhalersfor the pharmaceutical industry

Overview
The Inhaler Testing Workstation™ (ITW) is a purpose-built, modular workstation designed to support OINDP testing workflows for both Delivered Dose Uniformity (DDU) and Aerodynamic Particle Size Distribution (APSD) applications. It provides a configurable platform to secure and organise sampling apparatus and accessories, allowing analysts to assemble required attachments quickly and operate tests with improved ergonomics.

Main capabilities
The ITW secures the DUSA Collection Tube, Filter Support Cap, vacuum connection, flow meter and Waste Shot Collector (WSC2) during testing to maintain consistent positioning and connectivity.

Features

• Stable platform to hold test components in position
• Quick-slide attachments for rapid method changes
• Supplied with quick-release connectors for straightforward tubing and accessory interfacing
• Configurable for right- and left-handed operation
• Flexible attachment options to meet varied testing setups

Additional product details and attachments

• Rotatable DUSA holder for controlled manipulation of the sampling apparatus
• Holder for DUSA Filter Cap to secure filter assemblies
• Tubing attachment points to keep connections organised and routed
• Quick-release connectors included for fast assembly and disassembly

Related accessory

• Angled Nasal Device Holder: provides controlled firing angles (±45°) for nasal product testing to ensure consistent, repeatable conditions in DDU assessments

Multimedia
The product page includes a product video titled "The Inhaler Testing Workstation™ (ITW)" demonstrating the workstation and attachments.

Technical specifications

• Modular workstation design suitable for DDU and APSD testing
• Securely holds DUSA Collection Tube and Filter Support Cap
• Provides vacuum connection and flow meter integration
• Compatible with Waste Shot Collector (WSC2)
• Quick-slide attachments for rapid method changes
• Quick-release connectors for easy interfacing of tubing and accessories
• Configurable for right- or left-handed operation
• Supports additional attachments such as Angled Nasal Device Holder and rotatable DUSA holder
