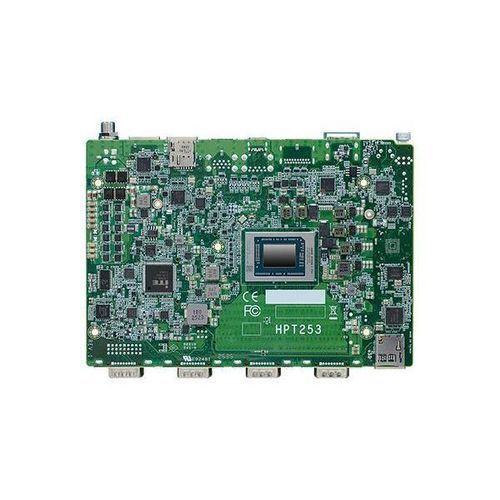

4" SBC HPT253

AMD Ryzen™M.2 Key MM.2 Key E

The HPT253 industrial motherboard is equipped with the powerful AMD® Ryzen™ Embedded 8000 Processor, offering exceptional performance for demanding applications. It supports dual DDR5-5600 SODIMM memory up to 96GB, ensuring fast and efficient data processing. The motherboard features quad display outputs including HDMI, LVDS, DP, and DP Type C Alt mode, providing versatile display options. - Multiple expansion slots: 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key - Rich I/O connectivity with 2.5GbE, USB 3.2, USB-C, and COM ports - Supports Out-of-Band (OOB) management for remote system control - Wide voltage input range of 9~36V DC and operating temperature from 0~60°C - Certified with RoHS, CE, and FCC standards - Dimensions: 165mm x 115mm, suitable for compact installations - Compatible with Windows 11 IoT Enterprise and Linux operating systems
