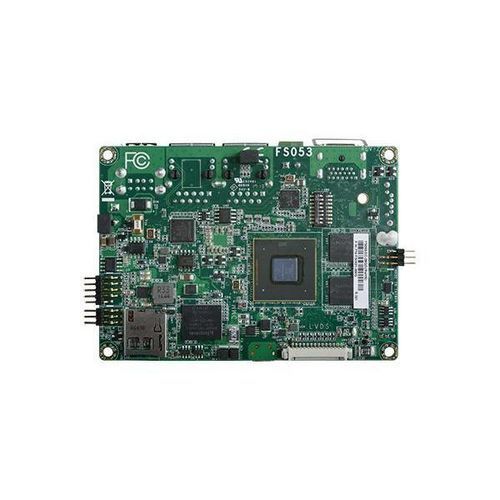

Pico-ITX / 2.5" motherboard FS053

NXP i.MX6Intel®DDR3L DRAM

Product Overview

• NXP i.MX6 Processor 2.5" Pico-ITX
• Expansion: 1 Mini PCIe, 1 SD
• DDR3L SDRAM memory down, up to 4GB
• Dual independent displays: HDMI + LVDS
• Rich I/O: 2 GbE, 2 COM, 4 USB 2.0

Status

• Launched

Features

• COM ESD Protection: Air Gap ±15kv
• Wide-temp: -20~70°C
• Wide Voltage: 9~36V DC-in
• Display: HDMI
• Mini PCIe

Certifications

• RoHS Certification
• CE Certification
• FCC Certification

Specifications
System
Processor: NXP i.MX6 Cortex-A9 Dual Lite, 1.0 GHz
NXP i.MX6 Cortex-A9 Quad, 1.0 GHz
Memory: 1GB/2GB SDRAM Memory Down (default), 4GB (available upon request)
Single Channel DDR3L 1600MHz/1866MHz
BIOS: 4MB NOR Flash

Graphics
Display: 1 x HDMI, 1 x LVDS
HDMI: resolution up to 1920x1080 @ 60 Hz
LVDS: single channel, resolution up to 1366x768 @ 60Hz
Single/Dual Displays: Yocto: HDMI or LVDS (Default), Android: HDMI + LVDS (available upon request)

Expansion
Interface: 1 x Full-size Mini PCIe (PCIe/USB)

Ethernet
Controller: 1 x ATHEROS AR8033 Ethernet (10/100/1000Mbps), 1 x LAN7500 Ethernet (10/100/1000Mbps)

Rear I/O
Ethernet: 2 x GbE (RJ-45)
Serial: 1 x RS-485 (2-wire)
USB: 2 x USB 2.0, 1 x USB 2.0 OTG Port
Display: 1 x HDMI

I/O
eMMC: Supports 8GB, 16GB and 32GB eMMC onboard

Internal I/O
Serial: 1 x RS-232/422/485 (8-wire)
USB: 1 x USB 2.0
Display: 1 x LVDS LCD Panel Connector
SATA: 1 x SATA 2.0 (up to 3Gb/s) (Quad processor only)
DIO: 1 x 8-bit DIO
SD: 1 x Micro SD Slot

Watchdog Timer
Output & Interval: System Reset, Programmable via Software from 1 to 255 Seconds

Power
Type: 9~36V DC
Connector: Terminal block (2-pin)
Consumption: Typical: 12V @ 0.355A (4.26Watt), Max.: 12V @ 0.631A (7.58Watt)

OS Support
Yocto (1.8, Default Preloaded on eMMC), Android (5.1.1)

Environment
Temperature: Operating: -20 to 70°C/0 to 60°C, Storage: -40 to 85°C
Humidity: Operating: 5 to 95% RH, Storage: 5 to 95% RH
MTBF: 486,335 hrs @ 25°C; 342,613 hrs @ 45°C ; 237,430 hrs @ 60°C

Mechanism
Dimensions: 2.5" Pico-ITX Form Factor 100mm (3.94") x 72mm (2.83")
Height: PCB: 1.6mm Top Side: 16.15mm, Bottom Side: 4mm

Standards and Certifications
Certifications: CE, FCC, RoHS

Packing List
1 FS053 board
1 terminal block for RS485 342-361021-000
1 Heat spreader (Height: 11mm) A71-808303-000G
Note: Please choose "FS053 product page > Download button" to download the Driver.

Country of Origin
Taiwan

Ordering Information

• FS053-EC-28QD: Fanless, i.MX6 Quad Lite 1.0GHz, 2GB DDR3L SDRAM, 8GB eMMC, 2 LAN, 2 COM, 4 USB, 9~36V DC in terminal block, -20 to 70°C
• FS053-EC-18DL: Fanless, i.MX6 Dual Lite 1.0GHz, 1GB DDR3L SDRAM, 8GB eMMC, 2 LAN, 2 COM, 4 USB, 9~36V DC in terminal block, -20 to 70°C
• FS053-BC-28QD: Fanless, i.MX6 Quad 1.0GHz, 2GB DDR3L SDRAM, 8GB eMMC, 2 LAN, 2 COM, 4 USB, 9~36V DC in terminal block, 0 to 60°C
• FS053-BC-18DL: Fanless, i.MX6 Dual Lite 1.0GHz, 1GB DDR3L SDRAM, 8GB Emmc, 2 LAN, 2 COM, 4 USB, 9~36V DC in terminal block, 0 to 60°C

Optional Items

• Heat sink: Height: 16.8mm
• COM cable: Length: 250mm, 1x COM ports
• USB 2.0 port cable: Length: 200mm, 1x USB ports
• Power cable for SATA and LCD backlight: Length: 155mm
• Power adapter: 60W, 12V, DC Jack

Technical Characteristics / Specifications

• Processor: NXP i.MX6 Cortex-A9 Dual Lite/Quad, 1.0 GHz
• Memory: 1GB/2GB/4GB DDR3L SDRAM
• BIOS: 4MB NOR Flash
• Display: HDMI up to 1920x1080 @ 60 Hz, LVDS up to 1366x768 @ 60Hz
• Expansion: 1 x Full-size Mini PCIe (PCIe/USB)
• Ethernet: 2 x GbE (RJ-45), ATHEROS AR8033, LAN7500
• USB: 4 x USB 2.0 (2 rear, 1 OTG, 1 internal)
• Serial: 1 x RS-485 (rear), 1 x RS-232/422/485 (internal)
• eMMC: 8GB/16GB/32GB onboard
• SATA: 1 x SATA 2.0 (Quad processor only)
• DIO: 1 x 8-bit DIO
• SD: 1 x Micro SD Slot
• Power: 9~36V DC, Terminal block (2-pin), Typical: 4.26W, Max: 7.58W
• OS: Yocto (1.8), Android (5.1.1)
• Operating Temp: -20 to 70°C/0 to 60°C
• Dimensions: 100mm x 72mm (2.5" Pico-ITX)
• Certifications: CE, FCC, RoHS
