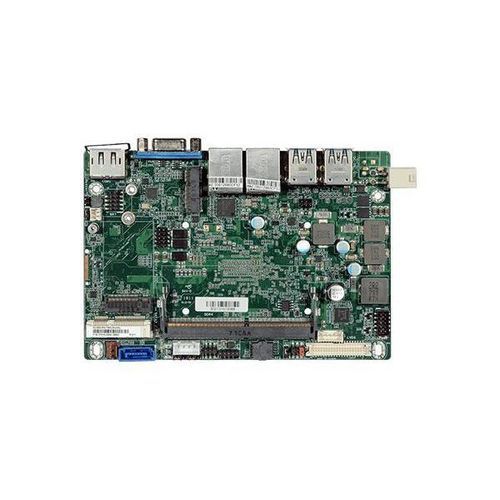

3.5" SBC KU553

Intel® Celeron® Processor 3965UIntel® Core™ i7-7600UIntel® Core™ i3-7100U

Product Overview

• 7th Gen Intel® Core™ 3.5" SBC
• 1 DDR4 SODIMM up to 16GB
• Three independent displays: VGA + LVDS + DP++
• Rich I/O: 2 Intel GbE, 4 USB 3.0, 2 USB 2.0, 1 M.2

Features

• COM ESD Protection: Air Gap ±15kv
• Wide Voltage: 9~36V DC-in
• Fanless Design
• 4K2K Display
• Triple Independent Display

Certifications

• RoHS Certification
• CE Certification
• FCC Certification

Tags

• #IoT
• #Intel
• #Mini PCIe
• #Fanless Design
• #4K2K Display
• #Windows
• #Linux
• #VGA
• #DP
• #DDR4
• #RoHS Certification
• #CE Certification
• #FCC Certification

Detailed Description

• DFI provides 3.5" SBC motherboard supported with 7th Gen Intel® Core™ processors and designed to support various interfaces including 1 DDR4 memory, 1 x M.2, 1 Mini PCIe, 1 VGA, 1 LVDS, 1 DP++ and more for using in different industrial grade applications.

System
Processor: 7th Generation Intel® Core™ Processors, BGA 1356
Intel® Core™ i7-7600U Processor, Dual Core, 4M Cache, 2.8GHz (3.9GHz), 15W
Intel® Core™ i5-7300U Processor, Dual Core, 3M Cache, 2.6GHz (3.5GHz), 15W
Intel® Core™ i3-7100U Processor, Dual Core, 3M Cache, 2.4GHz, 15W
Intel® Celeron® Processor 3965U, Dual Core, 2M Cache, 2.2GHz, 15W
Memory: One 260-pin SODIMM up to 16GB, Single Channel DDR4 1866/2133MHz
BIOS: Insyde SPI 128Mbit

Graphics
Controller: Intel® HD Graphics GT Series
Feature: OpenGL 5.0, DirectX 12, OpenCL 2.1; HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9; HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
Display: 1 x VGA, 1 x LVDS/eDP, 1 x DP++
VGA: resolution up to 1920x1200 @ 60Hz
LVDS: dual channel 48-bit, resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2304 @ 60Hz
Triple Displays: VGA + LVDS + DP++

Expansion
Interface: 1 x Full-size Mini PCIe (PCIe/USB2.0/USB3.1 Gen1 (option)) with SIM slot (option), 1 x M.2 B key 2242 (PCIe Gen3/USB2.0/SATA3.0), 1 x M.2 E key 2230 (PCIe/USB2.0)

Audio
Audio Codec: Realtek ALC888S

Ethernet
Core™ Processors: 1 x Intel® I210AT PCIe (10/100/1000Mbps) or 1 x Intel® I210IT PCIe (10/100/1000Mbps), 1 x Intel® I219LM PCIe with iAMT11.6 (10/100/1000Mbps)
Celeron® Processor: 1 x Intel® I210AT PCIe (10/100/1000Mbps) or 1 x Intel® I210IT PCIe (10/100/1000Mbps), 1 x Intel® I219V PCIe with iAMT11.6 (10/100/1000Mbps)

Rear I/O
Ethernet: 2 x GbE (RJ-45)
USB: 4 x USB 3.0
Display: 1 x VGA, 1 x DP++

Internal I/O
Serial: 1 x RS-232/422/485 (2.0mm pitch)
USB: 2 x USB 2.0 (2.0mm pitch)
Display: 1 x LVDS LCD Panel Connector, 1 x LCD/Inverter Power
Audio: 1 x Audio (Line-out/Mic-in)
SATA: 1 x SATA 3.0 (up to 6Gb/s), 1 x SATA Power
DIO: 1 x 8-bit DIO
SMBus: 1 x SMBus

Watchdog Timer
Output & Interval: System Reset, Programmable via Software from 1 to 255 Seconds

Security
TPM: fTPM 2.0

Power
Type: Wide Range 9~36VDC
Connector: Right Angle Connector (4-pin), DC Jack (available upon request), Vertical Type Connector (4-pin) (available upon request)
Consumption: Idle: i7-7600U: 12V @ 0.43A (5.16W), Max: i7-7600U: 12V @ 3.16A (37.92W)
RTC Battery: CR2032 Coin Cell

OS Support
Microsoft: Windows 10 IoT Enterprise 64-bit
Linux: Linux

Environment
Temperature: Operating: 0 to 60°C (Opt. -20 to 70°C), Storage: -40 to 85°C
Humidity: Operating: 5 to 90% RH, Storage: 5 to 90% RH
MTBF: 606,151 hrs @ 25°C; 394,265 @ 45°C; 267,894 @ 60°C

Mechanism
Dimensions: 3.5" SBC Form Factor, 146mm (5.75") x 102mm (4.02")
Height: PCB: 1.6mm, Top Side: 16.3mm, Bottom Side: 4.0 mm

Standards and Certifications
Certifications: CE, FCC, RoHS

Packing List
1 KU553 board, 1 COM port cable (Length: 300mm) 332-753040-000G, 1 Serial ATA data cable (Length: 500mm) 332-553001-205G, 1 Serial ATA power cable (Length: 250mm) A81-004041-016G, 1 Heat sink A71-011080-010G (Height: 26mm) or A71-011081-010G (Height: 31mm)

Country of Origin
Taiwan

Ordering Information
KU553-BN-7600U: Fanless, Intel® Core™ i7-7600U, 1 DDR4 SODIMM, 2 LAN, 1 COM, 6 USB, 9~36V (Right Angle), 0 to 60°C
KU553-BN-7300U: Fanless, Intel® Core™ i5-7300U, 1 DDR4 SODIMM, 2 LAN, 1 COM, 6 USB, 9~36V (Right Angle), 0 to 60°C
KU553-BN-7100U: Fanless, Intel® Core™ i3-7100U, 1 DDR4 SODIMM, 2 LAN, 1 COM, 6 USB, 9~36V (Right Angle), 0 to 60°C
KU553-BN-3965U: Fanless, Intel® Celeron® 3965U, 1 DDR4 SODIMM, 2 LAN, 1 COM, 6 USB, 9~36V (Right Angle), 0 to 60°C
KU553-EN-7600U: Fanless, Intel® Core™ i7-7600U, 1 DDR4 SODIMM, 2 LAN, 1 COM, 6 USB, 9~36V (Right Angle), -20 to 70°C

Optional Items
USB port cable (A81-001032-016G, Length: 200mm), Power adapter (671-106012-000G, 60W, 12V), 4 pin to DC jack cable (A81-004051-016G), Heat spreader (A71-011078-000G, Height: 11mm), Audio cable (A81-022007-016G, Length: 160mm)

Characteristics / Technical Specifications

• Form Factor: 3.5" SBC
• Processor: 7th Gen Intel® Core™ (i7-7600U, i5-7300U, i3-7100U) or Intel® Celeron® 3965U
• Memory: 1 DDR4 SODIMM up to 16GB
• Display: VGA, LVDS/eDP, DP++ (up to 3 independent displays)
• Ethernet: 2 x GbE (RJ-45)
• USB: 4 x USB 3.0, 2 x USB 2.0
• Expansion: 1 x Mini PCIe, 2 x M.2
• Audio: Realtek ALC888S
• Power: Wide Range 9~36VDC
• Operating Temperature: 0 to 60°C (option -20 to 70°C)
• Certifications: CE, FCC, RoHS
• Country of Origin: Taiwan
