Pico-ITX SBC AL553
mini-ITX3.5"COM Express

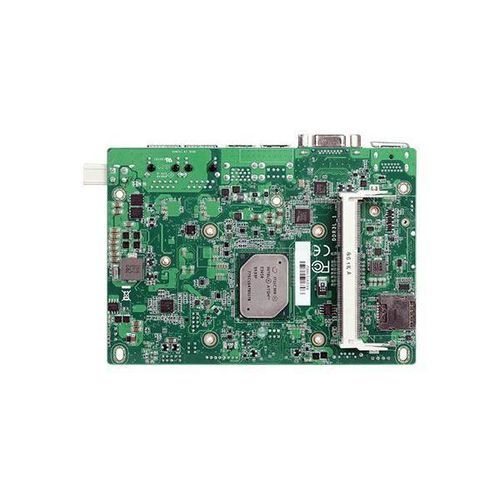

Pico-ITX SBC - AL553 - DFI - mini-ITX / 3.5" / COM Express
Pico-ITX SBC - AL553 - DFI - mini-ITX / 3.5" / COM Express
Pico-ITX SBC - AL553 - DFI - mini-ITX / 3.5" / COM Express - image - 2
Pico-ITX SBC - AL553 - DFI - mini-ITX / 3.5" / COM Express - image - 3
Pico-ITX SBC - AL553 - DFI - mini-ITX / 3.5" / COM Express - image - 4
Add to favorites
Compare this product
Go to the DFI website for more information

Characteristics

Form factor
3.5", pico-ITX, mini-ITX, COM Express
Processor
Intel® Atom E3900
Extension slot
SATA3, M.2 Key E, M.2 Key B, Mini PCIe
Operating system
Linux, Windows 10, Windows 10 IoT
Connectivity
LVDS, USB 2.0, USB 3.1, HDMI, RS-232, GbE, VGA
Memory
DDR3L SO-DIMM
Other characteristics
embedded, fanless
Memory size

Max.: 8 GB

Min.: 0 GB

Description

Product Overview
  • Intel® Atom® E3900 3.5" SBC
  • 1 DDR3L SODIMM up to 8GB
  • Three independent displays: VGA + LVDS + HDMI
  • Multiple expansion: 1 M.2 B Key, 1 M.2 E Key, Mini PCIe
  • Rich I/O: 2 Intel GbE, 1 COM, 2 USB 3.1 Gen1, 4 USB 2.0

Features
  • Wide-temp: -40~85°C
  • Wide Voltage: 9~36V DC-in
  • Fanless Design
  • Mini PCIe
  • Triple Independent Display

Certifications
  • RoHS Certification
  • CE Certification
  • FCC Certification
  • UKCA Certification

Rugged Design and Energy-Efficiency for Deeply Embedded Applications
  • Enhanced processing capability, low-power consumption, and brilliant graphic performance under Goldmont architecture with 14nm manufacturing node.
  • Small-sized, fanless, and supports extended temperature range from -40°C up to +85°C.
  • Ideal for space-constrained and thermally limited embedded applications.

Wide Operating Temperature with Fanless Design
  • Survives under a wide -40°C to +85°C operating temperature range.
  • Fanless design for system integration in harsh environments.

Energy Saving but High Performance
  • 30% improvement for processing and intense graphic performance (Gen9).
  • Saves an average of 9 watts TDP energy.

Experience Clarity with 4K UHD High-Resolution
  • Supports 4K high resolution (DP: 4096x2304 @ 60Hz).
  • Three independent displays for medical and multimedia solutions.

Multiple Storage Choice
  • Supports high speed SATA 3.0 drives, SSD and eMMC 5.0 options up to 128GB.
  • Advanced M.2 interface for Wi-Fi/LTE/mSATA.

Complete Product Line
  • Based on E3900 series processor, available in Mini-ITX, SBC, Pico-ITX, COM Express, Qseven R2.1.

Endless IoT Possibilities with Windows 10 Compatibility
  • Small-sized and rugged-design, ready for IoT demands.
  • Integration with Windows 10 platform for security and IoT device development.

Technical Specifications
  • Processor: Intel® Atom® Processor E3900 Family, BGA 1296; x7-E3950 (Quad Core, 2M Cache, 1.6GHz/2.0GHz, 12W), x5-E3940 (Quad Core, 2M Cache, 1.6GHz/1.8GHz, 9.5W, upon request), x5-E3930 (Dual Core, 2M Cache, 1.3GHz/1.8GHz, 6.5W), Pentium® N4200 (Quad Core, 2M Cache, 1.1GHz/2.5GHz, 6W, upon request), Celeron® N3350 (Dual Core, 2M Cache, 1.1GHz/2.4GHz, 6W), Celeron® J3455 (Quad Core, 2M Cache, 1.5GHz/2.3GHz, 10W)
  • Memory: One 204-pin SODIMM up to 8GB, Single Channel DDR3L 1866MHz
  • BIOS: Insyde SPI 128Mbit (UEFI boot only)
  • Graphics: Intel® HD Graphics; OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0; HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4; HW Encode: H.264, MPEG2, MPEG4
  • Display: 1 x VGA (up to 1920x1200 @ 60Hz), 1 x LVDS (dual channel 24-bit, up to 1920x1200 @ 60Hz), 1 x HDMI (up to 3840x2160 @ 30Hz); Triple display: VGA + LVDS + HDMI
  • Expansion: 1 x Full-size mini-PCIe (USB/PCIe) with SIM slot (option), 1 x M.2 B key 2242 (PCIe/USB 2.0/SATA 3.0), 1 x M.2 E key 2230 (USB/PCIe)
  • Audio: Realtek ALC888S
  • Ethernet: 2 x Intel® I210AT PCIe (10/100/1000Mbps), 2 x Intel® I210IT PCIe (10/100/1000Mbps, upon request)
  • Rear I/O: 2 x GbE (RJ-45), 2 x USB 3.1 Gen1, 2 x USB 2.0, 1 x VGA, 1 x HDMI, 1 x LVDS
  • Internal I/O: 1 x RS-232/422/485, 2 x USB 2.0, 1 x LVDS LCD Panel Connector, 1 x LCD/Inverter Power, 1 x Audio (Line-out/Mic-in), 1 x SATA 3.0 (up to 6Gb/s), 1 x SATA Power, 1 x 8-bit DIO, 1 x SMBus
  • Watchdog Timer: System Reset, Programmable via Software from 1 to 255 Seconds
  • Security: fTPM2.0
  • Power: Wide Range 9~36V DC; Right Angle Connector (4-pin), DC-in Jack (upon request), Vertical Type Connector (4-pin, upon request); Typical: 7W, Max: 24W; RTC Battery: CR2032 Coin Cell
  • OS Support: Windows 10 IoT Enterprise (64-bit), Linux (UEFI Only)
  • Environment: Operating: 0 to 60°C, -20 to 70°C, -40 to 85°C; Storage: -40 to 85°C; Humidity: Operating/Storage: 5 to 90% RH; MTBF: 618,325 hrs @ 25°C; 396,245 hrs @ 45°C; 267,106 hrs @ 60°C
  • Mechanism: 3.5" SBC Form Factor, 146mm x 102mm; PCB: 1.6mm; Top Side: 15.5mm; Bottom Side: 8.0mm
  • Certifications: CE, FCC Class B, RoHS, UKCA
  • Packing List: 1 AL553 board, 1 COM port cable (250mm), 1 SATA data cable (500mm), 1 SATA power cable (250mm), 1 Heat sink (for N series CPU: 25mm, for E series CPU 0 to 60℃: 35mm)
  • Country of Origin: Taiwan
