Pico-ITX / 2.5" motherboard EHL051
embeddedIntel® AtomIntel® Elkhart lake SoC

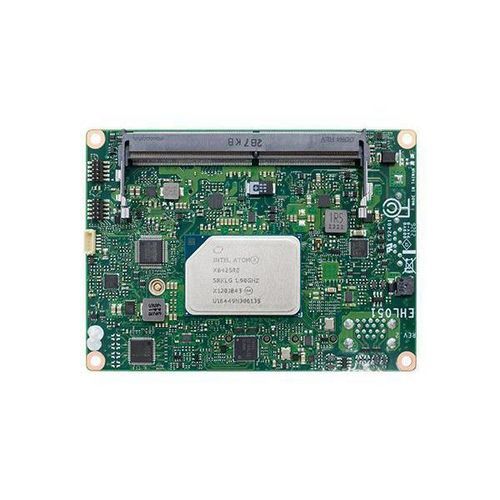

Pico-ITX / 2.5" motherboard - EHL051 - DFI - embedded / Intel® Atom / Intel® Elkhart lake SoC
Pico-ITX / 2.5" motherboard - EHL051 - DFI - embedded / Intel® Atom / Intel® Elkhart lake SoC
Pico-ITX / 2.5" motherboard - EHL051 - DFI - embedded / Intel® Atom / Intel® Elkhart lake SoC - image - 2
Pico-ITX / 2.5" motherboard - EHL051 - DFI - embedded / Intel® Atom / Intel® Elkhart lake SoC - image - 3
Pico-ITX / 2.5" motherboard - EHL051 - DFI - embedded / Intel® Atom / Intel® Elkhart lake SoC - image - 4
Add to favorites
Compare this product
Go to the DFI website for more information

Characteristics

Format
embedded, Pico-ITX / 2.5"
Processor
Intel® Atom, Intel® Elkhart lake SoC
Chipset
Intel® HD
Memory
DDR4 SO-DIMM
Extension slot
M.2 Key E, M.2 Key B, SATA
Applications
industrial, for digital signage
Operating system
Windows 10 IoT Enterprise
Connectivity
LVDS, USB 2.0, USB 3.2, HDMI, RS-485, RS-232, GbE, RS-422

Description

Product Overview
  • NextGen 2.5" PICO-ITX SBC (Single-Board Computer) designed for industrial applications such as Factory Automation, Retail POS, Digital Signage, and Edge AI Computing
  • Palm-sized SBC powered by Intel® Atom (Elkhart Lake) Processor
  • Supports up to 32GB DDR4 SODIMM memory at 3200MHz
  • Dynamic performance and compact form factor for seamless operation in diverse industrial environments

Visual Excellence
  • Supports 4K/2K resolution
  • Dual display outputs: HDMI + LVDS
  • Ideal for digital signage, kiosks, interactive retail experiences, and Human Machine Interface (HMI) applications

Expandability
  • Multiple expansion options: 1x M.2 E Key, 1x M.2 B Key, 1x SATA
  • Customizable hardware specs for industrial needs
  • Easy integration of additional storage, wireless connectivity, and expansion cards

Connectivity
  • Comprehensive I/O: 2x Intel GbE, 2x COM, 2x USB 3.2 Gen2, 2x USB 2.0
  • Seamless data transfer and peripheral connectivity
  • Compatible with industrial IoT infrastructure

Durability
  • Engineered for harsh industrial environments
  • Operating temperature: -40°C to 85°C
  • Industrial-grade durability for uninterrupted operation in demanding conditions

Key Features
  • Intel® Atom Processor (Elkhart Lake)
  • 1 DDR4 3200MHz SODIMM
  • Supports 4K/2K resolution
  • Dual Displays: HDMI + LVDS
  • Multiple Expansion: 1 M.2 E Key, 1 M.2 B Key, 1 SATA
  • Rich I/O: 2 Intel GbE, 2 COM, 2 USB 3.2 Gen2, 2 USB 2.0

Certifications
  • RoHS Certification
  • CE Certification
  • FCC Certification
  • KC Certification
  • UKCA Certification

Technical Specifications
  • Processor: Intel® Atom Processor, Elkhart Lake
    Industrial: x6425RE (4C, 1.9GHz, 12W), x6416RE (4C, 1.7GHz, 9W), x6214RE (2C, 1.4GHz, 6W)
    Embedded: x6425E (4C, 2.0GHz/3.0GHz, 12W), x6413E (4C, 1.5GHz/3.0GHz, 9W), x6211E (2C, 1.3GHz/3.0GHz, 6W)
    PC Client: Pentium J6412 (4C, 2.0GHz/2.6GHz, 10W), Celeron N6210 (2C, 1.2GHz/2.6GHz, 6.5W)
  • Memory: Single DDR4-3200 SODIMM up to 32GB (in-band ECC support in embedded/industrial SKU)
  • BIOS: AMI SPI 256Mbit
  • Graphics: Intel® HD Graphics
    Features: OpenGL 5.0, DirectX 12, OpenCL 2.1
    HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
    HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
  • Display: 1 x HDMI (up to 4096×2160 @24Hz), 1 x LVDS (dual channel 18/24-bit, up to 1920x1200 @60Hz), Dual Displays: HDMI + LVDS
  • Expansion: 1 x M.2 2230 E Key (PCIe/USB2.0 for Wi-Fi/BT), 1 x M.2 3042/2242 B Key (PCIe*/USB3.0/SATA, optional SIM slot for 4G/5G), 1 x SATA 3.0 (up to 6Gb/s)
  • Audio: Realtek ALC888S-VD2-GR
  • Ethernet: 2 x Intel® I226-V/IT (10/100/1000Mbps), 2 x GbE (RJ-45)
  • Rear I/O: 2 x USB 3.2 Gen2, 1 x HDMI
  • Internal I/O: 2 x RS-232/422/485, 2 x USB 2.0, 1 x LVDS LCD Panel Connector, 1 x LCD/Backlight Power (5V/12V), 1 x Audio (Line-out/Mic-in), 1 x 5V SATA Power, 1 x 8-bit DIO, 1 x SMBus/I2C (Opt.), 1 x front panel (power/reset, LEDs)
  • Watchdog Timer: System Reset, Programmable via Software from 1 to 255 Seconds
  • Security: dTPM2.0
  • Power: Single 12V +/-10% DC, 2-pin Terminal Block, 2-pin Vertical Type Connector (Opt.), Typical: J6426:12V @ 1.1A (13.2W), Max.: J6426:12V @ 1.6A (19.2W), RTC Battery: CR2032 Coin Cell
  • OS Support: (UEFI Only) Windows 10 IoT Enterprise (64-bit), Linux
  • Environment: Operating: -5 to 65°C, -40 to 85°C; Storage: -40 to 85°C; Humidity: 5 to 90% RH
  • MTBF: x6425RE: 563,338 hrs @ 25°C; 391,802 hrs @ 45°C; 278,646 hrs @ 60°C; 146,635 hrs @ 85°C (Telcordia Issue 4, GB, GC – Ground Benign, Controlled)
  • Dimensions: 2.5" Pico-ITX Form Factor, 100mm x 72mm
  • Height: PCB: 1.6 mm, Top Side: 15 mm, Bottom Side: 8 mm
  • Certifications: CE, FCC, RoHS, UKCA, KC
  • Packing List: 1 EHL051 board, 1 Serial ATA data cable (152mm), 1 Y cable for SATA and inverter power (155mm), 1 Heat spreader (11mm, x6000 series: A71-808359-000G, N/J series: A71-808359-010G)
  • Country of Origin: Taiwan
