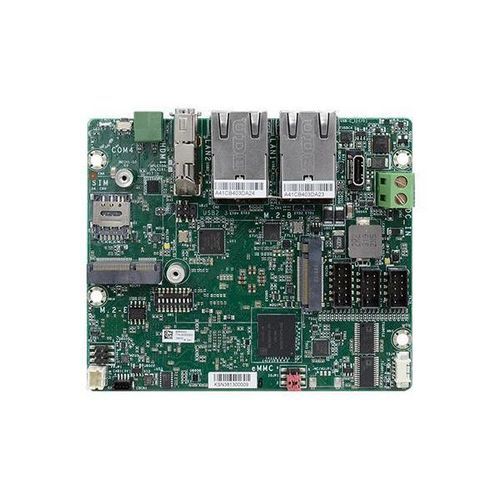

Pico-ITX / 2.5" motherboard 8MM053

NXP i.MX8M MiniIntel®LPDDR4

Product Overview

• NXP® i.MX 8M mini applications processors
• 1 LPDDR4 3200MHz memory down
• Support FHD High Resolution
• Multiple Expansion: 1 M.2 B Key, 1 M.2 E Key
• Rich I/O: 2 GbE, 2 USB 2.0, 1 RS-485, 2 RS-232, RS-422, DIO

Features

• Fanless Design
• Display: HDMI output, FHD resolution
• Multiple Expansion: M.2 B Key, M.2 E Key
• Rich I/O Connectivity
• LPDDR4 Memory
• FHD Resolution

Certifications

• RoHS Certification
• CE Certification
• FCC Certification

Tags

• 9~36V DC-in
• LPDDR4
• FHD Resolution
• NXP
• NXP® i.MX 8M mini Series
• ARM
• Fanless Design
• Multiple Expansion
• RoHS Certification
• CE Certification
• FCC Certification

Technical Specifications
System
Processor: NXP i.MX 8M mini applications processors
NXP i.MX 8M mini Quad Cortex-A53 1.8GHz (Consumer)
NXP i.MX 8M mini Quad Cortex-A53 1.6GHz (Industrial)
Memory: 4GB Memory Down (1GB/2GB by project support), Single Channel LPDDR4

Graphics
Controller: 2D-GC320, 3D-GC NanoULTRA
Feature: OpenGL® ES 2.1, VPU Decode: 1080p60 HEVC, H.264, VP9, VP8; VPU Encode: 1080p60 H.264, VP8
Display: 1 x HDMI (default), HDMI: resolution up to 1920x1080 @60Hz
Single Display: HDMI

Expansion
Interface: 1 x M.2 B key 3042/2242 (USB 2.0), Nano SIM slot support; 1 x M.2 E key 2230 (USB 2.0)

Ethernet
Controller: 1 x RTL8211 Ethernet (10/100/1000Mbps)

Rear I/O
Ethernet: 2 x GbE (RJ-45)
Serial: 1 x RS-485 (2 poles terminal block)
USB: 2 x USB 2.0, 1 x Reset Button
Display: 1 x HDMI

Internal I/O
Serial: 2 x RS-232 (2 x 5 header, 2mm pitch)
USB: 1 x USB 2.0 (2mm pitch)
SD: 1 x Micro SD Slot
I2C: 1 x I2C (1.25mm pitch)
Other I/O: DIO (4 DIO/PWR/GND) and RS-422 (4pin) (2 x 6 header, 2mm pitch)
eMMC: Support eMMC 5.1 8GB on board (default), Support up to 64GB (optional)

Watchdog Timer
Output & Interval: System Reset, Programmable via Software from 1 to 255 Seconds

Power
Type: DC 9V to 36V
Connector: 2-poles Terminal Block (default)
RTC Battery: CR2032 with cable

OS Support
Yocto 3.3 on eMMC (default)

Environment
Temperature: Operating: -5 to 65°C; -40 to 80°C, Storage: -40 to 85°C
Humidity: Operating: 5 to 90% RH, Storage: 5 to 90% RH

Mechanism
Dimensions: 100mm (3.94") x 85mm (3.35")
Height: PCB: 1.6mm, Top Side: 22.64mm, Bottom Side: 4mm

Standards and Certifications
Certifications: CE, FCC Class A, RoHS

Packing List
· 1 8MM053 MB
· 1 Heat Spreader (Height)
· 1 2-Pole Terminal Block for RS-485

Country of Origin: Taiwan

Ordering Information
Model Name: 8MM053
Part Number: 770-8MM0531-500G
Description: Quad Cortex-A53 1.6GHz, 4GB Memory Down, 8GB eMMC, -40 to 80°C, Yocto 3.3 (Kernel 5.10)

Optional Items

• 10 poles terminal for RS-422/4-bit DIO, L=100mm (Part Number: A81-009670-016G)
• 10-Pole Terminal Block for RS-422/4-bit DIO (Part Number: 342-361101-100G)
• Power Jack Cable, L=115mm (Part Number: A81-004013-000G)
• Power adapter 60W,12V, DC Jack (Part Number: 671-106012-000G)
• COM port cable (Part Number: A81-015019-004G)

Technical Characteristics / Specifications

• Processor: NXP i.MX 8M mini Quad Cortex-A53 1.6/1.8GHz
• Memory: 4GB LPDDR4 (1GB/2GB by project support)
• Storage: eMMC 5.1 8GB onboard (up to 64GB optional)
• Display: 1 x HDMI, up to 1920x1080 @60Hz
• Ethernet: 2 x GbE (RJ-45), 1 x RTL8211 Ethernet controller
• USB: 2 x USB 2.0 (rear), 1 x USB 2.0 (internal)
• Serial: 1 x RS-485, 2 x RS-232, RS-422
• Expansion: 1 x M.2 B key, 1 x M.2 E key, Nano SIM slot
• SD: 1 x Micro SD Slot
• I2C: 1 x I2C
• DIO: 4 DIO/PWR/GND
• Power: DC 9V to 36V, 2-poles Terminal Block
• Operating Temperature: -5 to 65°C; -40 to 80°C
• Storage Temperature: -40 to 85°C
• Humidity: 5 to 90% RH
• Dimensions: 100mm x 85mm
• Certifications: CE, FCC Class A, RoHS
• Country of Origin: Taiwan
