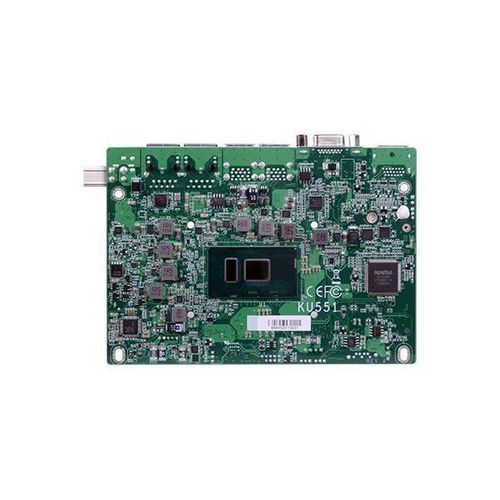

3.5" SBC KU551

Intel® Core™ i5-7300U ProcessorIntel® Celeron® Processor 3965UIntel® Core™ i7-7600U

Product Overview

• 7th Gen Intel® Core™ 3.5" SBC
• 1 DDR4 SODIMM up to 16GB
• Three independent displays: VGA + LVDS + DP++
• Wireless communication: Mini PCIe
• Rich I/O: 2 Intel GbE, 4 USB 3.0, 2 USB 2.0, 1 M.2

Features

• COM ESD Protection: Air Gap ±15kv
• Wide-temp: -40~85°C
• 4K2K Display
• DP
• DDR4

Certifications

• RoHS Certification
• UL Certification
• CE Certification
• FCC Certification

Product Details

• Best Budget 7th Generation Core™ Processor Based Motherboards: Robust design, advanced features, 7th Gen Intel® Core™ processors, multiple memory-on-board choices, high bandwidth interfaces, up-to-date M.2 interfaces. Delivers increased CPU performance, visual enhancement with lower power consumption, high speed transmission, and large storage capacity for harsh environments.
• M.2 with Intel® Optane™ Memory: Delivers unprecedented responsiveness and high speed performance without sacrificing HDD capacity.
• 4K UHD Technology: Allows sharper and more vivid images and video with 4K UHD technology. Up to 3 independent displays for flexible expansion designs.
• Wide Voltage Range: Compatible with 9~36V wide range power adapters for diverse environments.
• DFI Quality Promise: Undergoes strict testing (ESD, FloTHERMAL, HALT) for stability in harsh environments.
• Complete Industrial Motherboard Product Line: Includes ATX, microATX, Mini-ITX, Embedded SBC, and COM Express for diverse applications.

Technical Specifications

• Processor: 7th Generation Intel® Core™ Processors, BGA 1356 (i7-7600U, i5-7300U, i3-7100U, Celeron 3965U)
• Memory: One 260-pin SODIMM up to 16GB, Single Channel DDR4 1866/2133MHz
• BIOS: Insyde SPI 128Mbit
• Graphics: Intel® HD Graphics GT Series, OpenGL 5.0, DirectX 12, OpenCL 2.1, HW Decode/Encode support
• Display: 1 x VGA/DDI, 1 x LVDS/eDP, 1 x DP++/DDI; VGA up to 1920x1200@60Hz, LVDS up to 1920x1200@60Hz, DP++ up to 4096x2304@60Hz
• Triple Displays: VGA + LVDS + DP++
• Expansion: 1 x Full-size Mini PCIe (PCIe/USB), 1 x M.2 B key 2242 (PCIe/USB2.0/SATA3.0), 1 x Extension I/O connector (available upon request)
• Audio: Realtek ALC888
• Ethernet: 1 x Intel® I210AT PCIe (10/100/1000Mbps), 1 x Intel® I219LM PCIe with iAMT11.6 (10/100/1000Mbps)
• Rear I/O: 2 x GbE (RJ-45), 4 x USB 3.0, 1 x VGA, 1 x DP++
• Internal I/O: 2 x RS-232/422/485, 2 x USB 2.0, 1 x LVDS LCD Panel Connector, 1 x LCD/Inverter Power, 1 x Audio (Line-out/Mic-in), 1 x SATA 3.0, 1 x SATA Power, 1 x 8-bit DIO, 1 x SMBus
• Watchdog Timer: System Reset, Programmable via Software from 1 to 255 Seconds
• Security: fTPM 2.0
• Power: Single 12V +/-5% DC, Right Angle Connector (4-pin), DC Jack (available upon request), Vertical Type Connector (4-pin) (available upon request), Idle: i7-7600U:12V @ 0.9A (10.8Watt), Max.: i7-7600U:12V @ 3.2A (38.5Watt), RTC Battery: CR2032 Coin Cell
• OS Support: Windows 10 IoT Enterprise 64-bit, Linux, Yocto
• Environment: Operating: 0 to 60°C (Opt. -20 to 70°C), Storage: -40 to 85°C, Operating Humidity: 5 to 90% RH, Storage Humidity: 5 to 90% RH, MTBF: 477,146 hrs @ 25°C; 277,228 hrs @ 45°C; 172,875 hrs @ 60°C
• Mechanism: 3.5" SBC Form Factor 146mm (5.75") x 102mm (4.02"), PCB: 1.6mm, Top Side: 16.3mm, Bottom Side: 4.0 mm
• Certifications: CE, FCC, RoHS, UL
• Packing List: 1 KU551 board, 1 COM port cable (300mm, 2 x COM ports), 1 Serial ATA data cable (500mm), 1 Serial ATA power cable (250mm), 1 Heat sink (25.8mm)
• Country of Origin: Taiwan

Ordering Information
Model Name | Part Number | Description
KU551-BN-7600U | 770-KU5511-000G | Fanless, Intel® Core™ i7-7600U, 1 DDR4 SODIMM, 2 LAN, 2 COM, 6 USB, 0 to 60°C
KU551-BN-7300U | 770-KU5511-100G | Fanless, Intel® Core™ i5-7300U, 1 DDR4 SODIMM, 2 LAN, 2 COM, 6 USB, 0 to 60°C
KU551-BN-7100U | 770-KU5511-200G | Fanless, Intel® Core™ i3-7100U, 1 DDR4 SODIMM, 2 LAN, 2 COM, 6 USB, 0 to 60°C
KU551-BN-3965U | 770-KU5511-300G | Fanless, Intel® Celeron® 3965U, 1 DDR4 SODIMM, 2 LAN, 2 COM, 6 USB, 0 to 60°C
KU551-EN-7600U | 770-KU5511-400G | Fanless, Intel® Core™ i7-7600U, 1 DDR4 SODIMM, 2 LAN, 2 COM, 6 USB, -20 to 70°C
KU551-EN-7300U | 770-KU5511-500G | Fanless, Intel® Core™ i5-7300U, 1 DDR4 SODIMM, 2 LAN, 2 COM, 6 USB, -20 to 70°C
KU551-EN-7100U | 770-KU5511-600G | Fanless, Intel® Core™ i3-7100U, 1 DDR4 SODIMM, 2 LAN, 2 COM, 6 USB, -20 to 70°C
KU551-EN-3965U | 770-KU5511-700G | Fanless, Intel® Celeron® 3965U, 1 DDR4 SODIMM, 2 LAN, 2 COM, 6 USB, -20 to 70°C

Optional Items
USB port cable | A81-001032-016G | Length: 200mm
Power adapter | 671-106012-000G | 60W, 12V
Heat spreader | A71-011078-000G | Height: 11mm
Audio cable | A81-022007-016G | Length: 160mm
4 pin to DC jack cable | A81-004051-016G | Length: 100mm

Characteristics / Technical Specifications

• 7th Gen Intel® Core™ 3.5" SBC
• 1 DDR4 SODIMM up to 16GB
• Three independent displays: VGA + LVDS + DP++
• Wireless communication: Mini PCIe
• Rich I/O: 2 Intel GbE, 4 USB 3.0, 2 USB 2.0, 1 M.2
• COM ESD Protection: Air Gap ±15kv
• Wide-temp: -40~85°C
• 4K2K Display
• DP
• DDR4
• RoHS, UL, CE, FCC Certifications
