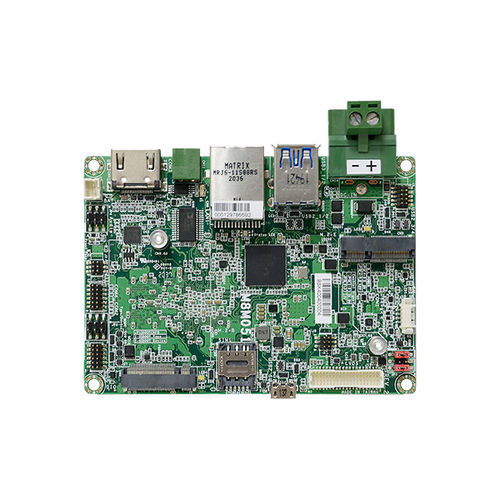

Pico-ITX / 2.5" motherboard M8M051

NXP i.MX8MIntel®LPDDR4

Product Overview

• NXP i.MX 8M Processors
• Single Channel LPDDR4 up to 3200 MHz
• Single Display: HDMI/LVDS
• HDMI: resolution up to 4096x2160 @60Hz / LVDS: resolution up to 1920x1080 @60Hz
• Multiple Expansion: 1 M.2 B Key, 1 M.2 E Key
• Rich I/O: 1 Intel GbE, 3 COM, 2 USB 3.1 Gen1, 3 USB 2.0

Features

• Low Power Consumption
• Compact Size
• Android support
• Multiple Expansion
• 12V DC-in

Certifications

• RoHS Certification
• CE Certification
• FCC Certification
• UKCA Certification

Technical Specifications
System
Processor
i.MX 8M applications processors
NXP i.MX 8M Quad Cortex-A53, 1.5GHz (Commercial)
NXP i.MX 8M Dual Cortex-A53, 1.5GHz (Commercial)
NXP i.MX 8M Quad Cortex-A53, 1.3GHz (Industrial)
NXP i.MX 8M Dual Cortex-A53, 1.3GHz (Industrial)
Memory
2GB/4GB Memory Down
Single Channel LPDDR4 up to 3200 MHz

Graphics
Controller
GC7000 Lite
Feature
OpenVG 1.1, OGL ES 3.1, Vulkan, OCL 1.2 FP
VPU Decode: 4Kp60 HEVC H.265, VP9, 4Kp60 H.264
Display
1 x HDMI (default)
1 x LVDS
HDMI: resolution up to 4096x2160 @60Hz
LVDS: resolution up to 1920x1080 @60Hz
Single Display
HDMI or LVDS

Expansion
Interface
1 x M.2 B key 3042/2242 (USB 3.1 Gen1), Nano SIM slot support
1 x M.2 E key 2230 (PCIe x1/USB 2.0)

Audio
Audio Codec
SGTL5000

Ethernet
Controller
1 x AR8035 Ethernet (10/100/1000Mbps)

Rear I/O
Ethernet
1 x GbE (RJ-45)
Serial
1 x RS485
USB
2 x USB 3.1 Gen1
1 x Micro USB 2.0 (Download mode)
Display
1 x HDMI

Internal I/O
Serial
1 x RS232
1 x RS-232/422/485 (2 x 6 pin header, 1.27mm pitch)
USB
2 x USB 2.0 (1.27mm pitch)
Display
1 x LVDS LCD Panel Connector
1 x Backlight Power
Audio
1 x Audio (Line-out/Mic-in, 2.00mm pitch)
DIO
1 x 8-bit DIO (2 x 6 header, 1.27mm pitch)
SD
1 x Micro SD Slot
CANBus
1 x CANBus 2.0
I2C
1 x I2C (1.27mm pitch)
eMMC
Support eMMC 5.1 16GB on board (default)
Support up to 64GB (opt.)

Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds

Power
Type
Single 12V +/-10% DC
Connector
2-poles Terminal Block (default)
DC Jack (available upon request)
Consumption
Typical: Quad:12V @ 0.2A (2.4Watt)
Max.: Quad:12V @ 0.38A (4.56Watt)
RTC Battery
CR2032 Coin Cell

OS Support
Yocto 2.5 on eMMC (default)
Android 9.0 (option)

Environment
Temperature
Operating: -5 to 65°C; -30 to 80 °C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
i.MX 8MQuad: 1,311,832 hrs @ 25°C; 637,427 hrs @ 45°C; 374,475 hrs @ 60°C; 189,510 hrs @ 80°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled

Mechanism
Dimensions
2.5" SBC Form Factor
100mm (3.94") x 72mm (2.83")
Height
PCB: 1.6mm
Top Side: 15mm
Bottom Side: 4mm

Standards and Certifications
Certifications
CE, FCC, RoHS, UKCA

Packing List
1 M8M051 board
1 Terminal block for RS485 (COM3) 342-361021-000G
1 Heat spreader (Height: 11mm) A71-808334-000G

Country of Origin
Taiwan

Ordering Information
Model Name | Part Number | Description
M8M051-BCC-41QDC | 770-M8M0511-000G | Quad core Processor, 4GB Memory, 16GB eMMC, 1 GbE, 1 RS-485, 1 RS-232, 1 RS-232/422/485, 2 USB 3.1 Gen1, 3 USB 2.0, 12VDC, Fanless Thermal, -5 to 65°C
M8M051-BCC-21DLC | 770-M8M0511-100G | Dual core Processor, 2GB Memory, 16GB eMMC, 1 GbE, 1 RS-485, 1 RS-232, 1 RS-232/422/485, 2 USB 3.1 Gen1, 3 USB 2.0, 12VDC, Fanless Thermal, -5 to 65°C
M8M051-ETC-41QDI | 770-M8M0511-200G | Quad core Processor, 4GB Memory, 16GB eMMC, 1 GbE, 1 RS-485, 1 RS-232, 1 RS-232/422/485, 2 USB 3.1 Gen1, 3 USB 2.0, 12VDC, Fanless Thermal, -30 to 80°C
M8M051-ETC-21DLI | 770-M8M0511-300G | Dual core Processor, 2GB Memory, 16GB eMMC, 1 GbE, 1 RS-485, 1 RS-232, 1 RS-232/422/485, 2 USB 3.1 Gen1, 3 USB 2.0, 12VDC, Fanless Thermal, -30 to 80°C
Optional Items
Item Name | Part Number | Description
2 pole terminal to DC jack cable | A81-004013-000G |
Power adapter | 671-106012-000G | 60W, 12V, DC Jack
Heat spreader | A71-008150-000G | Length: 19.4mm
USB 2.0 cable | A81-001084-016G | Length: 200mm
Audio cable | A81-022031-016G | Length: 300mm
COM port cable | A81-015088-016G | Length: 250mm, COM2/4 port
Debug console with cable | 770-IMX8M1-000G | Length: 500mm
Key Characteristics / Technical Specifications

• NXP i.MX 8M Quad/Dual Cortex-A53 processor (1.5GHz Commercial, 1.3GHz Industrial)
• 2GB/4GB LPDDR4 memory down, up to 3200 MHz
• HDMI up to 4096x2160 @60Hz, LVDS up to 1920x1080 @60Hz
• 1 x M.2 B key, 1 x M.2 E key, Nano SIM slot support
• 1 x GbE, 3 x COM, 2 x USB 3.1 Gen1, 3 x USB 2.0
• Support for Yocto 2.5 on eMMC, Android 9.0 (option)
• Operating temperature: -5 to 65°C (Commercial), -30 to 80°C (Industrial)
• CE, FCC, RoHS, UKCA certified
• Dimensions: 100mm x 72mm (2.5" SBC Form Factor)
