3.5" SBC GH551
AMD Ryzen™ Embedded V1000AMD Ryzen™ Embedded R1000Mini PCIe

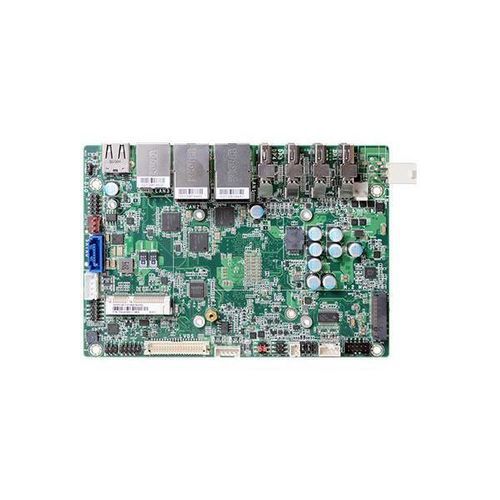

3.5" SBC - GH551 - DFI - AMD Ryzen™ Embedded V1000 / AMD Ryzen™ Embedded R1000 / Mini PCIe
3.5" SBC - GH551 - DFI - AMD Ryzen™ Embedded V1000 / AMD Ryzen™ Embedded R1000 / Mini PCIe
3.5" SBC - GH551 - DFI - AMD Ryzen™ Embedded V1000 / AMD Ryzen™ Embedded R1000 / Mini PCIe - image - 2
3.5" SBC - GH551 - DFI - AMD Ryzen™ Embedded V1000 / AMD Ryzen™ Embedded R1000 / Mini PCIe - image - 3
3.5" SBC - GH551 - DFI - AMD Ryzen™ Embedded V1000 / AMD Ryzen™ Embedded R1000 / Mini PCIe - image - 4
Add to favorites
Compare this product
Go to the DFI website for more information

Characteristics

Form factor
3.5"
Processor
AMD Ryzen™ Embedded R1000, AMD Ryzen™ Embedded V1000
Extension slot
SATA, M.2 Key M, Mini PCIe, nano SIM
Connectivity
LVDS, USB 2.0, USB 3.1, RS-232, DisplayPort
Memory
DDR4 SO-DIMM
Other characteristics
embedded, fanless, AI edge
Processor frequency

2,400 MHz

Memory size

16 GB

Description

Product Overview
  • AMD® Ryzen™ V1000/R2000/R1000 Series
  • 1 DDR4 2400MHz SODIMM up to 16GB
  • Multiple displays: max. 4 DP++/3 DP++ + LVDS
  • Multiple Expansion: 1 M.2 M Key, 1 Mini PCIe
  • Rich I/O: 3 GbE, 2 USB 3.1 Gen2, 1 USB 2.0

Features
  • Fanless Design
  • 4K2K Display
  • Mini PCIe
  • 12V DC-in
  • DDR4

Certifications
  • RoHS Certification
  • CE Certification
  • FCC Certification

Tags
  • Edge AI Computing
  • AMD
  • Fanless Design
  • 4K2K Display
  • DDR4
  • RoHS Certification
  • CPU Auto Warm-up

Technical Specifications
  • System
    Processor: AMD® Ryzen™ Embedded V1605B, 4C/8T, 2MB Cache, 8 CU, 2.0GHz (3.6GHz), 15W; AMD® Ryzen™ Embedded V1202B, 2C/4T, 1MB Cache, 3 CU, 2.3 GHz (3.2GHz), 15W; AMD® Ryzen™ Embedded V1404I, 4C/8T, 2MB Cache, 8 CU, 2.0GHz (3.6GHz), 15W; AMD® Ryzen™ Embedded R1606G, 2C/4T, 3 CU, 2.6GHz (3.5GHz), 15W; AMD® Ryzen™ Embedded R1505G, 2C/4T, 3 CU, 2.4GHz(3.3GHz), 15W; AMD® Ryzen™ Embedded R2514, 4C/8T, 8 CU, 2.1GHz (3.7GHz); AMD® Ryzen™ Embedded R2314, 4C/4T, 6 CU, 2.1GHz (3.5GHz); AMD® Ryzen™ Embedded R2312, 2C/4T, 3 CU, 2.7GHz (3.5GHz)
    Memory: 1 x 260-pin SODIMM up to 16GB, Single Channel DDR4 up to 2400MHz (ECC/non ECC support)
    BIOS: AMI SPI 64Mbit
  • Graphics
    Controller: AMD® Radeon™ Vega Graphics
    Feature: OpenGL 4.5, DirectX 12, OpenCL 2.1; HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9; HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
    Display: V1000/R2514/R2314: 4 x DP++ (1 x LVDS opt.); R2312/R1000: 3 x DP++(1 x LVDS opt.); DP++: resolution up to 4096x2160 @ 60Hz; LVDS: resolution up to 1920x1200 @ 60Hz
    Quad Displays: V1000/R2514/R2314: 4 DP++ (1 x LVDS opt.); R2312/R1000: 3 DP++(1 x LVDS opt.)
  • Expansion
    Interface: 1 x Full-size mini-PCIe (PCIe/USB 2.0, opt.: USB 3.1 Gen 1); 1 x M.2 2280/2242 M key (Support SATA/PCIe SSD); 1 x Nano SIM slot (opt.)
  • Audio
    Audio Codec: Realtek ALC888S
  • Ethernet
    Controller: 3 x Realtek® RTL8111HN/RTL8119I (10/100/1000Mbps)
  • Rear I/O
    Ethernet: 3 x GbE (RJ-45)
    USB: 2 x USB 3.1 Gen2, 1 x USB 2.0
    Display: V1000/R2514/R2314: 4 x DP++; R2312/R1000: 3 x DP++
  • Internal I/O
    Serial: 1 x RS-232/422/485 (2.0mm pitch), RS485 support auto flow control
    USB: 1 x USB 2.0 (2.0mm pitch)
    Display: 1 x LVDS LCD Panel Connector, 1 x Backlight Power
    Audio: 1 x Mic-in, 1 x Line-out, 1 x Speaker-out (2 x 3W, 8ohm)
    SATA: 1 x SATA 3.0 (up to 6Gb/s), 1 x SATA Power
    DIO: 1 x 8-bit DIO
    SMBus: 1 x SMBus
  • Watchdog Timer
    Output & Interval: System Reset, Programmable via Software from 1 to 255 Seconds
  • Security
    TPM: fTPM2.0 (default), dTPM2.0 (opt.)
  • Power
    Type: Single 12V DC
    Connector: 4-pin Right Angle Type Connector (default), DC Jack (available upon request), 4-pin Vertical Type Connector (available upon request)
    Consumption: Typical: V1605B:12V @ 1.35A (16.2Watt); Max.: V1605B:12V @ 2.37A (28.44Watt)
    RTC Battery: CR2032 coin cell
  • Environment
    Temperature: Operating: -5 to 65°C, -30 to 80°C; Storage: -40 to 85°C
    Humidity: Operating: 10 to 90% RH; Storage: 10 to 90% RH
    MTBF: R1505: 612,770 hrs @ 25°C; 392,061 hrs @ 45°C ; 229,134 hrs @ 65°C; V1605: 622,707 hrs @ 25°C; 408,558 hrs @ 45°C ; 246,634 hrs @ 65°C; Calculation Model: Telcordia Issue 4; Environment: GB, GC - Ground Benign, Controlled
  • Mechanism
    Dimensions: 3.5" SBC Form Factor, 146mm (5.75") x 102mm (4.02")
    Height: PCB: 1.6mm; Top Side: 15.5mm, Bottom Side: 4.0mm
  • Packing List
    1 GH551 board; 1 COM cable (2P ports, Length: 250mm) 332-753040-000G; SATA cable (Length: 500mm) 332-553001-005G; SATA power cable (Length: 250mm) A81-004041-016G; Heatsink for -5~65℃ (Height: 35.0mm) A71-008136-030G / for -30~80℃ (Height: 44.9mm) A71-008136-040G
  • Country of Origin
    Taiwan
