3.5" SBC EHL556
Intel® AtomIntel® Elkhart lake SoCMini PCIe

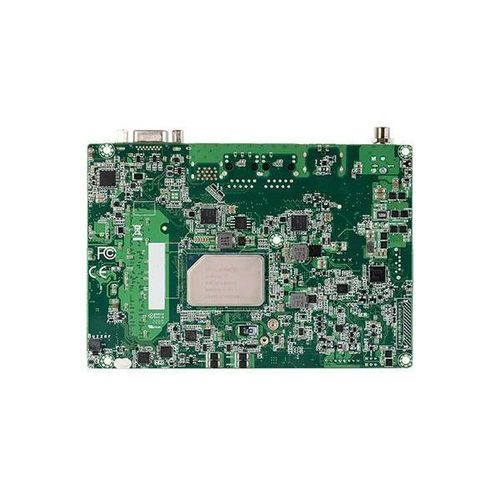

3.5" SBC - EHL556 - DFI - Intel® Atom / Intel® Elkhart lake SoC / Mini PCIe
3.5" SBC - EHL556 - DFI - Intel® Atom / Intel® Elkhart lake SoC / Mini PCIe
3.5" SBC - EHL556 - DFI - Intel® Atom / Intel® Elkhart lake SoC / Mini PCIe - image - 2
3.5" SBC - EHL556 - DFI - Intel® Atom / Intel® Elkhart lake SoC / Mini PCIe - image - 3
3.5" SBC - EHL556 - DFI - Intel® Atom / Intel® Elkhart lake SoC / Mini PCIe - image - 4
3.5" SBC - EHL556 - DFI - Intel® Atom / Intel® Elkhart lake SoC / Mini PCIe - image - 5
3.5" SBC - EHL556 - DFI - Intel® Atom / Intel® Elkhart lake SoC / Mini PCIe - image - 6
3.5" SBC - EHL556 - DFI - Intel® Atom / Intel® Elkhart lake SoC / Mini PCIe - image - 7
3.5" SBC - EHL556 - DFI - Intel® Atom / Intel® Elkhart lake SoC / Mini PCIe - image - 8
Add to favorites
Compare this product
Go to the DFI website for more information

Characteristics

Form factor
3.5"
Processor
Intel® Elkhart lake SoC, Intel® Atom
Extension slot
SATA, M.2 Key E, Mini PCIe
Operating system
Windows 10 IoT
Connectivity
WiFi, LVDS, RS232, USB 2.0, USB 3.1, HDMI, VGA, RS-485, RS-422, DisplayPort, GbE, eDP
Applications
for IoT applications
Memory
DDR4 SO-DIMM, DDR4 3200 MHz
Other characteristics
embedded, industrial, fanless, AI edge
Memory size

32 GB

Description

Product Overview
  • Intel® Atom® X Series Processor 3.5" SBC
  • 1 DDR4-3200 SODIMM up to 32GB
  • 4K High Resolution: Supports 4K/2K resolution
  • Triple Independent Displays: 1 HDMI, 1 DP++, 1 LVDS/eDP
  • Multiple Expansion: 1 M.2 E Key, 1 Mini-PCIe, 1 I2C
  • Rich I/O: 2 LAN, 2 USB 3.1 Gen2, 2 USB 2.0, 2 COM, 1 SATA 3.0

Key Features
  • Wide-temp: -40~85°C
  • Wide Voltage: 9~36V DC-in
  • Fanless Design
  • 4K2K Display
  • Mini PCIe
  • Multiple Expansion
  • Triple Independent Display

Certifications
  • RoHS Certification
  • CE Certification
  • FCC Certification
  • UKCA Certification

System Specifications
  • Processor: Intel Atom Elkhart Lake
    • Industrial: Atom x6425RE, 4C, 1.9GHz, 12W; Atom x6414RE, 4C, 1.5GHz, 9W
    • Embedded: Atom x6425E, 4C, 2.0GHz(3.0GHz), 12W; Atom x6413E, 4C, 1.5GHz(3.0GHz), 9W
    • PC Client: Celeron N6210, 2C 1.2GHz(2.6GHz), 6.5W
  • Memory: Single DDR4-3200 SODIMM Up to 32GB (in-band ECC support in embedded/industrial SKU)
  • BIOS: AMI SPI 256Mbit

Graphics
  • Controller: Intel® HD Graphics
  • Feature: OpenGL 5.0, DirectX 12, OpenCL 2.1; HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC; HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
  • Display: 1 x HDMI (or BOM option change to VGA), 1 x DP++, 1 x LVDS or eDP + Backlight; HDMI: up to 1920x1080 @60Hz; DP++: up to 4096x2304 @60Hz; LVDS: up to 1920x1200 @60Hz
  • Triple Displays: HDMI + DP++ + LVDS/eDP

Expansion
  • 1 x M.2 2230 E key (USB/PCIe) (Support WiFi 5 & WiFi 6)
  • 1 x mini-PCIe (USB/PCIe)
  • I2C

Audio
  • Audio Codec: Realtek ALC888

Ethernet
  • Controller: 2 x Intel® I225-IT PCIe

Rear I/O
  • Ethernet: 2 x GbE (RJ-45)
  • USB: 2 x USB 3.1 Gen2 10Gbps
  • Display: 1 x DP++, 1 x VGA

Internal I/O
  • Serial: 1 x RS232/422/485 + 1 x RS232, or 1 x RS232/422/485 + 8bit DIO (BIOS select)
  • USB: 4 x USB 2.0
  • Display: 1 x LVDS or eDP + Backlight
  • Audio: 1 x Audio (Line-out/Mic-in)
  • SATA: 1 x SATA 3.0, 1 x 5V SATA Power (support SATA HDD LED via front panel)
  • Front Panel: 1 x front panel (power button/reset button, power LED, HDD act LED)

Watchdog Timer
  • System Reset, Programmable via Software from 1 to 255 Seconds

Security
  • TPM 2.0

Power
  • Type: Wide Range 9~36VDC
  • Connector: DC Jack (or vertical type 4pin connector)
  • Consumption: TBD
  • RTC Battery: CR2032 Coin Cell

OS Support
  • Microsoft: Windows 10 IoT 2019 LTSC, Windows 10 IoT 2021 LTSC
  • Linux

Environment
  • Temperature: Operating: -40 to 85°C; Storage: -40 to 85°C
  • Humidity: Operating: 5 to 90% RH; Storage: 5 to 90% RH
  • MTBF: 532,533 hrs @25°C; 362,324 hrs @45°C; 253,192 hrs @60°C; 194,923 hrs @70°C; 129,169 hrs @85°C; Calculation Model: Telcordia Issue 4; Environment: GB, GC - Ground Benign, Controlled

Mechanism
  • Dimensions: 3.5" SBC Form Factor, 146mm (5.75") x 102mm (4.02")

Standards and Certifications
  • CE, FCC Class B (TBD in later stage), RoHS, UKCA

Packing List
  • 1 EHL556 board
  • 1 SATA cable (Length: 300mm), 332-553001-205G
  • 1 SATA power cable (Length: 250mm), A81-004041-016G
  • 1 COM cable (Length: 250mm), 332-753040-000G
  • 1 Heatsink -20 to 70°C (Height: 29mm), A71-008357-010G (PC client CPU)
  • 1 Heatsink -40 to 80°C (Height: 29mm), A71-008357-000G (Industry CPU)

Country of Origin
  • Taiwan

Ordering Information
  • EHL556, Celeron N6210, HDMI+DP, eDP, 2LAN, 1COM+DIO, mSATA, I2C, TPM2.0, Heat sink, Wide Temp. -20~70°C
  • EHL556, Celeron N6210, eDP+VGA, 2LAN, I2C, TPM2.0, Wide Temp. -20~70°C
  • EHL556, Atom x6413E, LVDS+VGA, 2LAN, TPM2.0, Wide Temp. -40~85°C
  • EHL556, Atom x6425E, HDMI+DP, LVDS, 2LAN, 2COM, mSATA, I2C, TPM2.0, Heat sink, Wide Temp. -40~85°C
  • EHL556, Atom x6425E, LVDS+VGA, 2LAN, TPM2.0, Wide Temp. -40~85°C
  • EHL556, Atom x6425E, HDMI+DP, LVDS, 2LAN, 1COM+DIO, mPCIe, I2C, TPM2.0, Heat sink, Wide Temp. -40~85°C

Optional Items
  • Power adapter: 60W, 12V, DC Jack, 0°C ~ 40°C or -30°C ~ 70°C
  • USB 2.0 cable: Length 200mm
  • Heat spreader: AL1050 146*102*7.5mm, for EHL556 BAREDIE CPU (J6413, J6412, J646, N621, N6210, N6415) or EHL556 IHS CPU (x6211E, x6413E, x6425E, x6414RE, x6425RE)

Technical Specifications
  • Processor: Intel Atom Elkhart Lake (various SKUs)
  • Memory: Single DDR4-3200 SODIMM up to 32GB
  • Graphics: Intel HD Graphics, triple display support
  • Expansion: 1 x M.2 2230 E key, 1 x mini-PCIe, I2C
  • Audio: Realtek ALC888
  • Ethernet: 2 x Intel I225-IT PCIe
  • Rear I/O: 2 x GbE, 2 x USB 3.1 Gen2, 1 x DP++, 1 x VGA
  • Internal I/O: Serial, USB 2.0, LVDS/eDP, Audio, SATA, Front Panel
  • Watchdog Timer: Programmable 1-255s
  • Security: TPM 2.0
  • Power: 9~36VDC, DC Jack/4pin
  • OS: Windows 10 IoT, Linux
  • Environment: -40~85°C, 5-90% RH
  • Dimensions: 146mm x 102mm
  • Certifications: CE, FCC, RoHS, UKCA
  • Country of Origin: Taiwan
