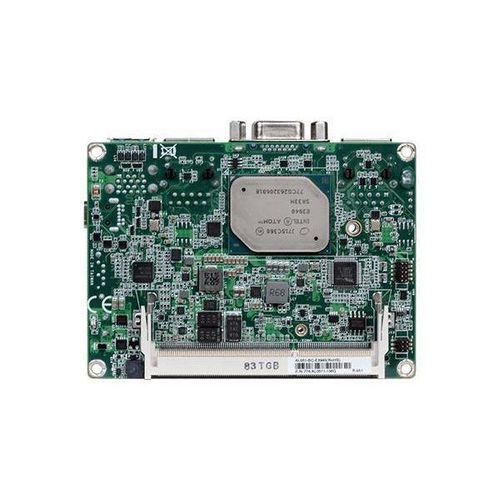

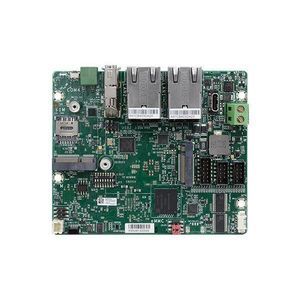

Pico-ITX / 2.5" motherboard AL051
embeddedIntel® Atom E3900Intel® HD

Pico-ITX / 2.5" motherboard - AL051 - DFI - embedded / Intel® Atom E3900 / Intel® HD
Pico-ITX / 2.5" motherboard - AL051 - DFI - embedded / Intel® Atom E3900 / Intel® HD
Pico-ITX / 2.5" motherboard - AL051 - DFI - embedded / Intel® Atom E3900 / Intel® HD - image - 2
Pico-ITX / 2.5" motherboard - AL051 - DFI - embedded / Intel® Atom E3900 / Intel® HD - image - 3
Pico-ITX / 2.5" motherboard - AL051 - DFI - embedded / Intel® Atom E3900 / Intel® HD - image - 4
Add to favorites
Compare this product
Go to the DFI website for more information

Characteristics

Format
embedded, Pico-ITX / 2.5"
Processor
Intel® Atom E3900
Chipset
Intel® HD
Memory
DDR3L SO-DIMM
Extension slot
Mini PCIe
Applications
industrial
Operating system
Linux
Connectivity
LVDS, USB 2.0, USB 3.1, VGA, RS-485, RS-232, RS-422, DisplayPort

Description

Product Overview
  • Intel® Atom™/Pentium®/Celeron® Processor E3900
  • 1 DDR3L SODIMM up to 8GB
  • Triple independent displays: VGA + Mini DP++ + LVDS
  • Expansion and Storage: 1 Mini PCIe, 1 M.2, 1 SMBus
  • Rich I/O: 2 Intel GbE, 1 COM, 2 USB 3.1 Gen 1, 2 USB 2.0

Key Features
  • 2.5" Pico-ITX with Intel Atom®/Pentium®/Celeron®
  • Designed with low power consumption
  • Rich I/O, ideal for industrial control, data collection, industrial digital signage, IoT applications
  • Fanless, small-sized, supports extended temperature range from -40°C up to +85°C
  • Rugged design and energy-efficiency for deeply embedded applications
  • Supports 4K UHD high-resolution (DP: 4096x2304 @ 60Hz) and three independent displays
  • Multiple storage choices: eMMC, SSD, M.2 Module, SATA 3.0 drives
  • Windows 10 IoT Enterprise (64-bit) and Linux support (UEFI only)

System Specifications
  • Processor: Intel® Atom™ Processor E3900 Family, BGA 1296
    - x7-E3950: Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W
    - x5-E3940: Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W
    - x5-E3930: Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W
    - Pentium® N4200: Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W
    - Celeron® N3350: Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W
  • Memory: One 204-pin SODIMM up to 8GB, Single Channel DDR3L 1866MHz
  • BIOS: Insyde SPI 64Mbit (UEFI boot only)

Graphics
  • Controller: Intel® HD Graphics
  • Features: OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
    HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4
    HW Encode: H.264, MPEG2, MPEG4
  • Display Outputs:
    - 1 x Mini DP++ (up to 4096x2160 @ 60Hz)
    - 1 x VGA (up to 2048x1536 @ 50Hz)
    - 1 x LVDS (dual channel 18/24-bit, up to 1920x1200 @ 60Hz)
  • Triple Displays: VGA + Mini DP++ + LVDS

Expansion
  • 1 x Full-size Mini PCIe (PCIe/USB 2.0, optional USB 3.1 Gen1/USB 2.0)
  • 1 x M.2 B key 2242 (PCIe/USB 2.0/SATA 3.0)

Audio
  • Audio Codec: Realtek ALC888S-VD2-GR

Ethernet
  • 2 x Intel® I210AT PCIe (10/100/1000Mbps)
  • 2 x Intel® I210IT PCIe (10/100/1000Mbps) (available upon request)

Rear I/O
  • 2 x GbE (RJ-45)
  • 2 x USB 3.1 Gen 1
  • 1 x Mini DP++
  • 1 x VGA
  • 1 x LVDS

Internal I/O
  • 1 x RS-232/422/485 (1.27mm pitch)
  • 2 x USB 2.0 (1.27mm pitch)
  • 1 x LVDS LCD Panel Connector
  • 1 x Audio (Line-out/Mic-in)
  • 1 x SATA 3.0 (up to 6Gb/s)
  • 1 x 8-bit DIO
  • 1 x SMBus

Watchdog Timer
  • System Reset, Programmable via Software from 1 to 255 Seconds

Security
  • fTPM2.0

Power
  • Single 12V +/-10% DC
  • 2-pin Terminal Block, 2-pin Vertical Type Connector (optional)
  • Typical: E3950:12V @ 0.51A (6.12Watt)
  • Max.: E3950:12V @ 2.00A (24.00Watt)
  • RTC Battery: CR2032 Coin Cell

OS Support
  • Windows 10 IoT Enterprise (64-bit)
  • Linux

Environment
  • Operating Temperature: 0 to 60°C, -40 to 85°C
  • Storage Temperature: -40 to 85°C
  • Operating Humidity: 5 to 90% RH
  • Storage Humidity: 5 to 90% RH
  • MTBF: 497,857 hrs @ 25°C; 318,774 hrs @ 45°C; 213,436 hrs @ 60°C

Mechanism
  • 2.5" Pico-ITX Form Factor 100mm (3.94") x 72mm (2.83")
  • PCB Height: 1.6 mm
  • Top Side: 7.9 mm
  • Bottom Side: 16.34 mm

Certifications
  • CE, FCC, RoHS

Packing List
  • 1 AL051 board
  • 1 Serial ATA data cable (Length: 152mm) A81-002000-000G
  • 1 Y cable for SATA and inverter power (Length: 155mm) A81-020016-018G
  • 1 Heat spreader (Height: 11mm) E Series CPU: A71-808308-010G, N Series CPU: A71-808309-010G

Country of Origin
  • Taiwan

Optional Items
  • Audio cable (160mm)
  • Power adapter (60W, 12V, DC Jack)
  • COM port cable (300mm)
  • USB port cable (200mm)
  • 2 pole terminal to DC Jack cable
  • Heat sink for E series CPU 0 to 60°C/wide temp (22.6mm)
  • Heat sink for N series CPU 0 to 60°C (19mm)

Technical Specifications (Summary)
  • Processor: Intel® Atom™/Pentium®/Celeron® E3900 Series
  • Memory: 1 DDR3L SODIMM up to 8GB
  • Triple independent displays: VGA + Mini DP++ + LVDS
  • Expansion: 1 Mini PCIe, 1 M.2, 1 SMBus
  • I/O: 2 Intel GbE, 1 COM, 2 USB 3.1 Gen 1, 2 USB 2.0
  • Form Factor: 2.5" Pico-ITX
  • Operating Temp: -40°C to +85°C (model dependent)
  • Certifications: CE, FCC, RoHS

Catalogs

No catalogs are available for this product.

See all of DFI‘s catalogs
Go to the DFI website for more information

Other DFI products

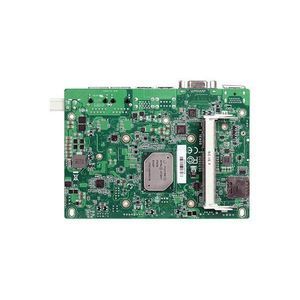

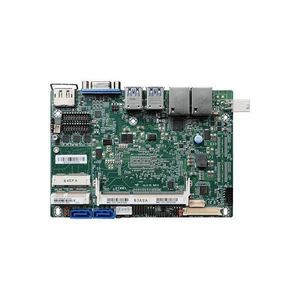

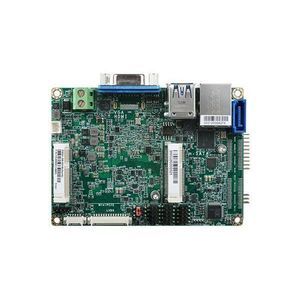

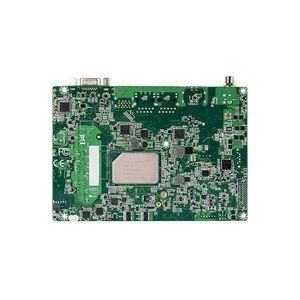

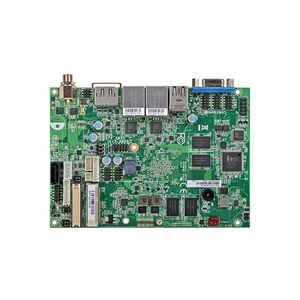

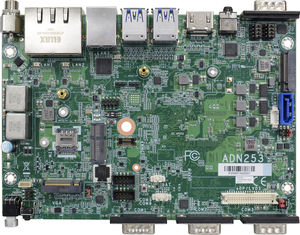

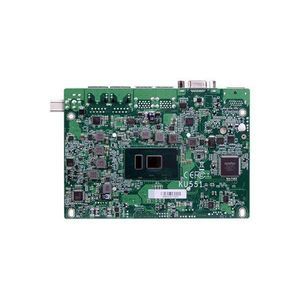

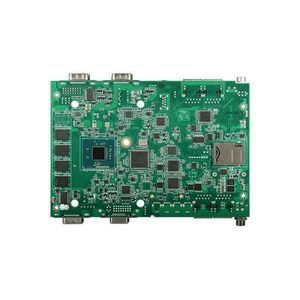

Single Board Computer
