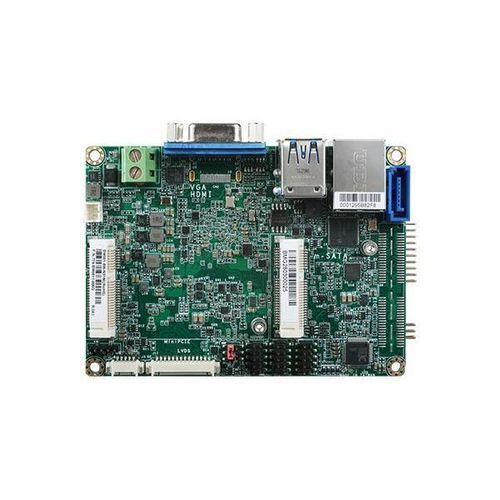

Pico-ITX / 2.5" motherboard BW051

Intel® PentiumIntel® Celeron N3000Intel® HD

Product Overview

• Intel® Pentium®/Celeron® N3000 2.5" Pico-ITX
• 1 DDR3L SODIMM up to 8GB
• Dual independent displays: VGA*/HDMI + LVDS
• Expansion and Storage: 1 Mini PCIe, 1 mSATA, 1 SATA 3.0
• Rich I/O: 1 Intel GbE, 2 COM, 2 USB 3.0, 2 USB 2.0

Key Features

• COM ESD Protection: Air Gap ±15kv
• Display: HDMI, VGA, LVDS
• Mini PCIe expansion
• 12V DC-in
• DDR3L memory support

Certifications

• RoHS Certification
• CE Certification
• FCC Certification

Tags

• #IoT
• #Intel
• #Mini PCIe
• #Windows
• #Linux
• #VGA
• #DDR3L
• #RoHS Certification

Technical Specifications
System
Processor: Intel® Pentium®/Celeron® Processor N3000 Family, BGA 1170; Intel Atom® Processor x5-E8000, Quad Core, 2M Cache, 1.04GHz, 5W; Intel® Pentium® Processor N3710, Quad Core, 2M Cache, 1.6GHz (2.56GHz), 6W; Intel® Celeron® Processor N3160, Quad Core, 2M Cache, 1.6GHz (2.24GHz), 6W; Intel® Celeron® Processor N3060, Dual Core, 2M Cache, 1.6GHz (2.48GHz), 6W; Intel® Celeron® Processor N3010, Dual Core, 2M Cache, 1.04GHz (2.24GHz), 4W
Memory: One 204-pin SODIMM up to 8GB, Single Channel DDR3L 1600MHz
BIOS: Insyde SPI 64Mbit

Graphics
Controller: Intel® HD Graphics
Feature: OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0; HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4; HW Encode: H.264, MPEG2, MPEG4
Display: 1 x VGA/HDMI, 1 x LVDS; VGA: up to 1920x1200 @ 60Hz; HDMI: up to 1920x1080 @ 60Hz; LVDS: single channel 24-bit, up to 1366x768 @ 60Hz
Dual Displays: VGA + LVDS, HDMI + LVDS

Expansion
Interface: 1 x Half-size mSATA (SATA), 1 x Full-size Mini PCIe (PCIe/USB), 1 x Extension I/O connector (available upon request)

Audio
Audio Codec: Realtek ALC888S-VD2-GR

Ethernet
Controller: 1 x Intel® I211AT PCIe (10/100/1000Mbps)

Rear I/O
Ethernet: 1 x GbE (RJ-45)
USB: 2 x USB 3.0
Display: 1 x VGA/HDMI

Internal I/O
Serial: 1 x RS-232/422/485 (2.0mm pitch, right angle type), 1 x RS-232 (2.0mm pitch, right angle type)
USB: 2 x USB 2.0 (2.0mm pitch)
Display: 1 x LVDS LCD Panel Connector
Audio: 1 x Audio (Line-out/Mic-in)
SATA: 1 x SATA 3.0 (up to 6Gb/s)
DIO: 1 x 8-bit DIO
SMBus: 1 x SMBus

Watchdog Timer
Output & Interval: System Reset, Programmable via Software from 1 to 255 Seconds

Security
TPM: Available Upon Request

Power
Type: Single 12V +/-10% DC
Connector: 2-pin Terminal Block
Consumption: BW051 Typical: N3710:12V @ 0.47A (5.64Watt); Max.: N3710:12V @ 1.0864A (13.037Watt)
RTC Battery: Lithium 3V (210mAH)

OS Support
Windows 7 (WES7) 32/64-bit; Windows 8.1 (64-bit); Windows 10 IoT Enterprise 32/64-bit; Debian 8 (with VESA graphic driver); CentOS 7 (with VESA graphic driver); Linux

Environment
Temperature: Operating: 0 to 60°C; Storage: -40 to 85°C
Humidity: Operating: 5 to 90% RH; Storage: 5 to 90% RH

Mechanism
Dimensions: 2.5" Pico-ITX Form Factor, 100mm (3.94") x 72mm (2.83")
Height: PCB: 1.6mm; Top Side: 15.5mm; Bottom Side: 8.0mm

Packing List
1 BW051 board; 1 COM port cable (Length: 300mm, 2 x COM ports) A81-015020-001G; 1 Serial ATA data cable (Length: 152mm) A81-002000-000G; 1 Y cable for SATA and inverter power (Length: 155mm) A81-020016-018G; 1 Heat sink (Height: 19mm) A71-011065-000G

Country of Origin
Taiwan

Ordering Information

• BW051-BB-N3060: 770-BW0512-200G - Fanless, Intel® Pentium®/Celeron® N3060, 1 DDR3L SODIMM, 1VGA, 1 LAN, 2 COM, 4 USB, 0 to 60°C
• BW051-BB-N3160: 770-BW0512-000G - Fanless, Intel® Pentium®/Celeron® N3160, 1 DDR3L SODIMM, 1VGA, 1 LAN, 2 COM, 4 USB, 0 to 60°C
• BW051-BB-E8000: 770-BW0512-100G - Fanless, Intel Atom® x5-E8000, 1 DDR3L SODIMM, 1VGA, 1 LAN, 2 COM, 4 USB, 0 to 60°C
• BW051-BB-N3160: 770-BW0512-300G - Fanless, Intel Atom® N3160, 1 DDR3L SODIMM, 1HDMI, 1 LAN, 2 COM, 4 USB, 0 to 60°C

Optional Items

• 1 Audio cable: A81-022007-016G, Length: 160mm
• Power adapter: 671-106012-000G, 60W, 12V, DC jack
• USB port cable: A81-001032-016G, Length: 200mm
• Heat spreader: A71-808301-000G, Height: 11mm
• 2-pole terminal to DC Jack cable: A81-004013-000G

Characteristics / Technical Specifications

• Form Factor: 2.5" Pico-ITX
• Processor: Intel® Pentium®/Celeron® N3000 Family, Intel Atom® x5-E8000
• Memory: 1 DDR3L SODIMM up to 8GB
• Display: VGA/HDMI + LVDS, dual independent displays
• Expansion: 1 Mini PCIe, 1 mSATA, 1 SATA 3.0
• I/O: 1 Intel GbE, 2 COM, 2 USB 3.0, 2 USB 2.0
• Audio: Realtek ALC888S-VD2-GR
• Power: Single 12V +/-10% DC
• Operating Temperature: 0 to 60°C
• Certifications: RoHS, CE, FCC
