Pico-ITX / 2.5" motherboard AL05P
embeddedIntel® Atom E3900Intel® Celeron® N3350

Pico-ITX / 2.5" motherboard - AL05P - DFI - embedded / Intel® Atom E3900 / Intel® Celeron® N3350

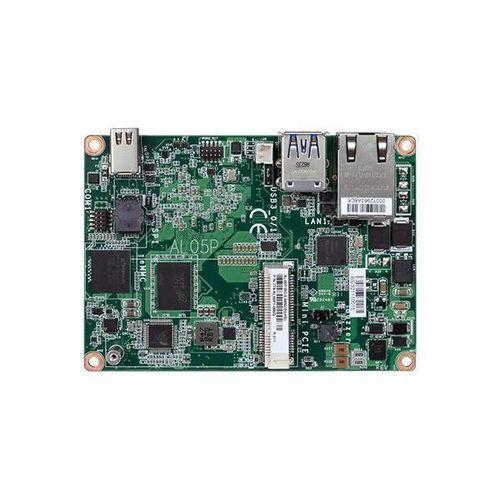

Pico-ITX / 2.5" motherboard - AL05P - DFI - embedded / Intel® Atom E3900 / Intel® Celeron® N3350
Pico-ITX / 2.5" motherboard - AL05P - DFI - embedded / Intel® Atom E3900 / Intel® Celeron® N3350 - image - 2
Pico-ITX / 2.5" motherboard - AL05P - DFI - embedded / Intel® Atom E3900 / Intel® Celeron® N3350 - image - 3
Pico-ITX / 2.5" motherboard - AL05P - DFI - embedded / Intel® Atom E3900 / Intel® Celeron® N3350 - image - 4
Add to favorites
Compare this product
Go to the DFI website for more information

Characteristics

Format
embedded, Pico-ITX / 2.5"
Processor
Intel® Celeron® N3350, Intel® Atom E3900
Chipset
Intel® HD
Memory
LPDDR4
Extension slot
Mini PCIe
Applications
industrial
Operating system
Linux, Windows 10 IoT Enterprise
Connectivity
USB 2.0, USB 3.0, USB 3.1, RJ45, RS-232, GbE, Ethernet

Description

Product Overview
  • DFI AL05P is a 2.5" Pico-ITX industrial solution with PoE (Power over Ethernet) designed for building automation, resource detection, weather detection, continuous automatic monitoring and AI edge computing.
  • Supports 2.5" Pico-ITX, Intel® Pentium® / Celeron® / Intel Atom® processor E3900, 1 DDR4, 1 Mini PCIe, 1 Mini DP++.

Key Features
  • Intel® Pentium®/Celeron®/Intel Atom® Processor E3900
  • Support LPDDR4 memory down up to 4GB
  • Rich I/O: 1 LAN, 1 COM, 2 USB 3.0, 2 USB 2.0
  • Expansion and Storage: 1 Mini PCIe, 1 SMBus, 1 eMMC
  • PoE single board solution support PoE PD 48VDC

Certifications
  • RoHS Certification
  • CE Certification
  • FCC Certification

Detailed Description
  • First Industrial Specialized Pi + PoE AL05P – Pioneer PoE SBC for Edge Applications: AL05P replaces traditional DC power cable with PoE cable, filling in gaps of equipment setup in remote locations, reducing cabling space and eliminating the cost of additional power supplies, improving the ease and flexibility of device deployment without power limitations.
  • Powered by Intel Atom® Processor E3900 Series: High-performance, low-power (9W) processing capabilities, extends real-time computing at the edge to real-time response to edge events, handling image recognition and data streaming analysis.
  • Fewer Cables for More Flexibilities: One of the rarest 2.5-inch (100mm x 72mm) Pico-ITX embedded motherboards that directly supports PoE. Optimized for powering away from sockets or reducing cabling. Small size and low power consumption for narrow environments lacking power distribution.
  • Powering and Expansions – All In One Board: PoE LAN, I/O, and expansion interfaces all configured on the single board. Includes 1 ±15kv electrostatic-protected COM, 2 USB 3.1 Gen1, 2 USB 2.0, and Mini PCIe.
  • 4K UHD for Added Values: Built-in HEVC hardware decoding and VP9 codec display enhancement engine, supports 4K high-resolution DP++ output (4096x2304@60Hz), suitable for service applications, advertising, and multimedia.
  • Comprehensive Development Environment: Supports both Linux and Windows operating systems, product life cycle up to 15 years.

Technical Specifications
  • Processor: Intel Atom® Processor E3900 Series, BGA 1296; Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W; Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W; Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W; Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W
  • Memory: SDRAM Memory Down up to 4GB; Single Channel DDR4 2400MHz
  • BIOS: Insyde SPI 128Mbit (supports UEFI boot only)
  • Graphics: Intel® HD Graphics; OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0; HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4; HW Encode: H.264, MPEG2, MPEG4
  • Display: 1 x Mini DP++; Mini DP++: resolution up to 4096x2160 @ 60Hz
  • Storage: 1 x 16GB/32GB/64GB eMMC
  • Expansion: 1 x Full-size Mini PCIe (PCIe/USB 2.0, optional USB 3.1 Gen1/USB 2.0)
  • Ethernet: 1 x Intel® I210AT PCIe (10/100/1000Mbps); 1 x Intel® I210IT PCIe (10/100/1000Mbps) (available upon request)
  • Rear I/O: 1 x GbE (RJ-45); 2 x USB 3.1 Gen1; 1 x Mini DP++
  • Internal I/O: 1 x RS-232/422/485 (1.27mm pitch); 2 x USB 2.0 (1.27mm pitch); 1 x 8-bit DIO; 1 x SMBus
  • Watchdog Timer: System Reset, Programmable via Software from 1 to 255 Seconds
  • Security: fTPM 2.0
  • Power: 48VDC PoE; PoE LAN; Typical: E3950:12V @ 0.33A (3.96Watt); Max.: E3950:12V @ 1.76A (21.12Watt); RTC Battery: CR2032 Coin Cell
  • OS Support: Windows 10 IoT Enterprise (64-bit), Linux
  • Environment: Operating: 0 to 60°C, -20 to 70°C; Storage: -40 to 85°C; Humidity: Operating: 5 to 90% RH; Storage: 5 to 90% RH
  • Mechanism: 2.5" Pico-ITX Form Factor; 100mm (3.94") x 72mm (2.83"); PCB: 1.6mm; Top Side: 15mm, Bottom Side: 8mm
  • Packing List: 1 AL05P board; 1 Heat spreader (Height: 15mm) E Series CPU: A71-808315-000G, N Series CPU: A71-808315-010G
  • Country of Origin: Taiwan

Ordering Information
  • AL05P-BC-23E30: Fanless, Intel Atom® X5-E3930, DDR4 2GB, eMMC 32GB, 1 Mini DP++, 1 LAN, 1 COM, 4 USB, PoE PD 48V, 0 to 60°C
  • AL05P-BC-23E40: Fanless, Intel Atom® X5-E3940, DDR4 2GB, eMMC 32GB, 1 Mini DP++, 1 LAN, 1 COM, 4 USB, PoE PD 48V, 0 to 60°C
  • AL05P-BC-23N50: Fanless, Intel® Celeron® N3350, DDR4 2GB, eMMC 32GB, 1 Mini DP++, 1 LAN, 1 COM, 4 USB, PoE PD 48V, 0 to 60°C
  • AL05P-EC-23E30: Fanless, Intel Atom® X5-E3930, DDR4 2GB, eMMC 32GB, 1 Mini DP++, 1 LAN, 1 COM, 4 USB, PoE PD 48V, -20 to 70°C
  • AL05P-EC-23E40: Fanless, Intel Atom® X5-E3940, DDR4 2GB, eMMC 32GB, 1 Mini DP++, 1 LAN, 1 COM, 4 USB, PoE PD 48V, -20 to 70°C

Optional Items
  • USB port cable, Length: 200mm
  • 1 COM port cable, Length: 300mm
  • Heat sink for E series CPU, 0 to 60°C /Wide temp., Height: 28mm
  • Heat sink for N series CPU, 0 to 60°C, Height: 28.1mm

Tags
  • #IoT
  • #Intel
  • #Industrial Specialized Pi
  • #PoE
  • #Mini PCIe
  • #4K2K Display
  • #Windows
  • #Linux
  • #DDR4
  • #RoHS Certification

Characteristics / Technical Specifications
  • Form Factor: 2.5" Pico-ITX (100mm x 72mm)
  • Processor: Intel Atom® E3900 Series, Pentium® N4200, Celeron® N3350
  • Memory: Up to 4GB DDR4
  • Storage: eMMC 16GB/32GB/64GB
  • Expansion: 1 x Mini PCIe
  • LAN: 1 x GbE (RJ-45), PoE support
  • USB: 2 x USB 3.1 Gen1, 2 x USB 2.0
  • Display: 1 x Mini DP++ (up to 4096x2160 @ 60Hz)
  • Operating Temperature: 0 to 60°C, -20 to 70°C (model dependent)
  • Certifications: RoHS, CE, FCC
  • OS Support: Windows 10 IoT Enterprise (64-bit), Linux
