Pico-ITX / 2.5" motherboard AL053
embeddedIntel® Atom E3900Intel® Pentium® N4200

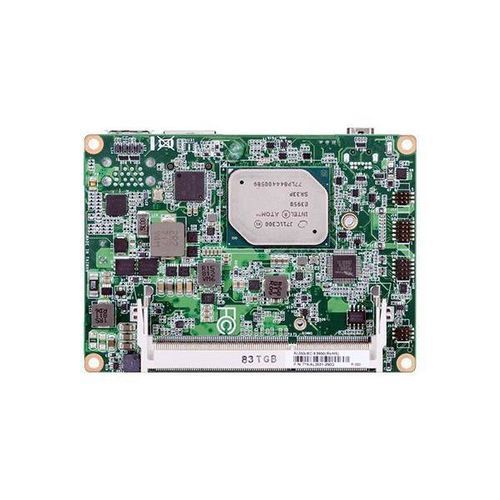

Pico-ITX / 2.5" motherboard - AL053 - DFI - embedded / Intel® Atom E3900 / Intel® Pentium® N4200
Pico-ITX / 2.5" motherboard - AL053 - DFI - embedded / Intel® Atom E3900 / Intel® Pentium® N4200
Pico-ITX / 2.5" motherboard - AL053 - DFI - embedded / Intel® Atom E3900 / Intel® Pentium® N4200 - image - 2
Pico-ITX / 2.5" motherboard - AL053 - DFI - embedded / Intel® Atom E3900 / Intel® Pentium® N4200 - image - 3
Pico-ITX / 2.5" motherboard - AL053 - DFI - embedded / Intel® Atom E3900 / Intel® Pentium® N4200 - image - 4
Add to favorites
Compare this product
Go to the DFI website for more information

Characteristics

Format
embedded, Pico-ITX / 2.5"
Processor
Intel® Celeron® N3350, Intel® Pentium® N4200, Intel® Atom E3900
Chipset
Intel®
Memory
DDR3L SO-DIMM
Extension slot
M.2, Mini PCI
Applications
industrial, embedded
Operating system
Linux, Windows 10
Memory frequency
DDR3L 1866 MHz
Connectivity
LVDS, USB 2.0, USB 3.0, USB 3.1, HDMI, RJ45, DisplayPort

Description

Product Overview
  • 2.5" Pico-ITX with Intel Atom®/Pentium®/Celeron®
  • Designed with low power, rich I/O, wide voltage
  • Ideal for industrial control, data collection, industrial digital signage, IoT applications

Key Features
  • Intel Atom® Processor E3900
  • 1 DDR3L SODIMM up to 8GB
  • Two independent displays: LVDS + Mini DP++
  • Expansion and Storage: 1 Mini PCIe, 1 M.2, 1 SMBus
  • Rich I/O: 1 Intel GbE, 1 COM, 2 USB 3.1 Gen1, 2 USB 2.0
  • Status: Launched

Certifications
  • RoHS Certification
  • CE Certification
  • FCC Certification

Product Details
  • Rugged Design and Energy-Efficiency for Deeply Embedded Applications: Enhanced processing capability, low-power consumption, brilliant graphic performance under Goldmont architecture with 14nm manufacturing node. Small-sized, fanless, supports extended temperature range from -40°C up to +85°C, ideal for space-constrained and thermally limited embedded applications.
  • Wide Operating Temperature with Fanless Design: Survives -40°C to +85°C operating temperature range. Outstanding fanless design for system integration.
  • Energy Saving but High Performance: 30% improvement for processing and intense graphic performance (Gen9), saves an average of 9 watts TDP energy.
  • Experience Clarity with 4K UHD High-Resolution: Enhanced graphic engine supports 4K high resolution (DP: 4096x2304 @ 60Hz) and three independent displays for medical and multimedia solutions.
  • Multiple Storage Choice: Supports high speed SATA 3.0 drives, SSD and eMMC 5.0 up to 128GB. Advanced M.2 interface for Wi-Fi/LTE/mSATA, ideal for automation, storage, and IoT appliances.
  • Complete Product Line: Based on E3900 series processor, includes Mini-ITX, SBC, Pico-ITX, COM Express, Qseven R2.1.
  • Endless IoT Possibilities with Windows 10 Compatibility: Small-sized, rugged-design, ready for IoT demands, simplifies development of IoT-connected devices.

Technical Specifications
  • Processor: Intel Atom® Processor E3900 Series, BGA 1296; x7-E3950 (Quad Core, 2M Cache, 1.6GHz/2.0GHz, 12W), x5-E3940 (Quad Core, 2M Cache, 1.6GHz/1.8GHz, 9.5W), x5-E3930 (Dual Core, 2M Cache, 1.3GHz/1.8GHz, 6.5W), Pentium® N4200 (Quad Core, 2M Cache, 1.1GHz/2.5GHz, 6W), Celeron® N3350 (Dual Core, 2M Cache, 1.1GHz/2.4GHz, 6W)
  • Memory: One 204-pin SODIMM up to 8GB, Single Channel DDR3L 1866MHz
  • BIOS: Insyde SPI 128Mbit (UEFI boot only)
  • Graphics: Intel® HD Graphics; OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0; HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4; HW Encode: H.264, MPEG2, MPEG4
  • Display: 1 x Mini DP++ (up to 4096x2160 @ 60Hz), 1 x LVDS (dual channel 18/24-bit, up to 1920x1200 @ 60Hz), Dual Displays: LVDS + Mini DP++
  • Storage: 1 x M.2 B key 2242 (PCIe/USB 2.0/SATA 3.0)
  • Expansion: 1 x Full-size Mini PCIe (PCIe/USB 2.0, optional USB 3.1 Gen1/USB 2.0)
  • Audio: Realtek ALC888S-VD2-GR
  • Ethernet: 1 x Intel® I210AT PCIe (10/100/1000Mbps), 1 x Intel® I210IT PCIe (10/100/1000Mbps, on request)
  • Rear I/O: 1 x GbE (RJ-45), 2 x USB 3.1 Gen1, 1 x Mini DP++
  • Internal I/O: 1 x RS-232/422/485, 2 x USB 2.0, 1 x LVDS LCD Panel Connector, 1 x LCD/Inverter Power, 1 x Audio (Line-out/Mic-in), 1 x 8-bit DIO, 1 x SMBus
  • Watchdog Timer: System Reset, Programmable via Software from 1 to 255 Seconds
  • Security: fTPM 2.0
  • Power: 9~36V DC, 2-pin Terminal Block; Typical: E3950:12V @ 0.35A (4.20Watt); Max.: E3950:12V @ 1.90A (22.8Watt); RTC Battery: CR2032 Coin Cell
  • OS Support: Windows 10 IoT Enterprise (64-bit), Linux (UEFI Only)
  • Environment: Operating: 0 to 60°C, -20 to 70°C, -40 to 85°C; Storage: -40 to 85°C; Humidity: Operating/Storage: 5 to 90% RH; MTBF: 715,458 hrs @ 25°C; 482,964 hrs @ 45°C; 335,469 hrs @ 60°C
  • Mechanism: 2.5" Pico-ITX Form Factor, 100mm x 72mm; PCB: 1.6mm; Top Side: 15mm; Bottom Side: 8mm
  • Certifications: CE, FCC, RoHS
  • Packing List: 1 AL053 board, 1 Heat spreader (Height: 11mm) E Series CPU: A71-808308-010G / N Series CPU: A71-808309-010G
  • Country of Origin: Taiwan
