3.5" SBC CS551
8th Generation Intel® Core™9th Generation Intel® Core™Mini PCIe

3.5" SBC - CS551 - DFI - 8th Generation Intel® Core™ / 9th Generation Intel® Core™ / Mini PCIe

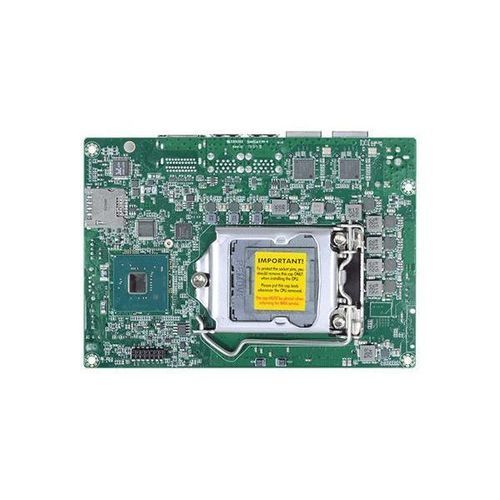

3.5" SBC - CS551 - DFI - 8th Generation Intel® Core™ / 9th Generation Intel® Core™ / Mini PCIe
3.5" SBC - CS551 - DFI - 8th Generation Intel® Core™ / 9th Generation Intel® Core™ / Mini PCIe - image - 2
3.5" SBC - CS551 - DFI - 8th Generation Intel® Core™ / 9th Generation Intel® Core™ / Mini PCIe - image - 3
3.5" SBC - CS551 - DFI - 8th Generation Intel® Core™ / 9th Generation Intel® Core™ / Mini PCIe - image - 4
Add to favorites
Compare this product
Go to the DFI website for more information

Characteristics

Form factor
3.5"
Processor
8th Generation Intel® Core™, 9th Generation Intel® Core™
Extension slot
M.2 Key M, Mini PCIe
Operating system
Linux, Windows 10 IoT
Connectivity
LVDS, USB 2.0, USB 3.1, RS-232, DisplayPort, GbE
Memory
DDR4 SO-DIMM
Other characteristics
fanless
Memory size

Max.: 32 GB

Min.: 0 GB

Description

Product Overview
  • World’s first compact-sized AI motherboard with auto warm-up function for processor to withstand extreme cold weather at -30°C
  • 3.5" SBC powered by 8th/9th Gen Intel® Core™ i3/i5/i7 or Pentium®/Celeron® processors
  • Supports dynamic performance adjustment of CPU and GPU, high-speed image analysis and transmission
  • All required expansion interfaces for edge AI computing
  • Ideal for traffic flow analysis, harsh environments, AI vision, IoT applications

Key Features
  • 9th/8th Gen Intel® Core™ with Intel® C246
  • 1 DDR4 SODIMM up to 32GB
  • Three independent displays: LVDS + DP++ + DP++
  • DP++ resolution up to 4096x2304 @ 60Hz
  • Multiple expansion: 1 M.2 M Key, 1 Mini PCIe
  • Rich I/O: 2 Intel GbE, 4 USB 3.1, 2 USB 2.0
  • Fanless design
  • 4K2K display support
  • Triple independent display

Certifications
  • RoHS Certification
  • CE Certification
  • FCC Certification
  • UKCA Certification

Detailed Specifications
  • Processor: 8th/9th Gen Intel® Core™ (LGA 1151 Socket), including i7-8700T, i5-8500T, i3-8100T, Pentium G5400T, Celeron G4900T, i7-9700TE, i5-9500TE, i3-9100TE
  • Memory: One 260-pin SODIMM up to 32GB, Single Channel DDR4 2666MHz, ECC support with C246 chipset
  • BIOS: Insyde SPI 128Mbit
  • Graphics: Intel® UHD 630 Graphics GT Series, OpenGL 4.6, DirectX 12, OpenCL 2.1, HW Decode/Encode support for multiple codecs
  • Display: 1 x LVDS (dual channel 48-bit, up to 1920x1200 @ 60Hz), 2 x DP++ (up to 4096x2304), triple display support
  • Expansion: 1 x Full-size Mini PCIe, 1 x M.2 2280 M key, 1 x SIM slot (optional for 3G/4G module)
  • Audio: Realtek ALC262
  • Ethernet: Intel® I211AT PCIe or Intel® I210IT PCIe (10/100/1000Mbps), 2 x GbE (RJ-45)
  • Rear I/O: 2 x GbE, 4 x USB 3.1 Gen2 (C246/Q370) or Gen1 (H310), 2 x DP++
  • Internal I/O: 1 x RS-232/422/485, 2 x USB 2.0, 1 x LVDS LCD Panel Connector, 1 x LVDS Backlight, 1 x Audio (Line-out/Mic-in), 1 x SATA 3.0, 1 x SATA Power, 1 x 8-bit DIO, 1 x SMBus, 1 x 12V header (wide temp. only)
  • Watchdog Timer: System Reset, Programmable via Software from 1 to 255 Seconds
  • Security: fTPM 2.0
  • Power: 12VDC, Vertical Type Connector (4-pin) (default), DC Jack (available upon request), Typical: i7-8700T: 12V @ 0.86A (10.32W), Max: i7-8700T: 12V @ 5.38A (64.56W), RTC Battery: CR2032 Coin Cell
  • OS Support: Windows 10 IoT Enterprise 64-bit RS5, Linux
  • Environment: Operating: -5 to 65°C for 35W/100C CPU (fanless); -30 to 80°C for 15W TDP down/100C CPU (fanless); Storage: -40 to 85°C; Humidity: 5 to 90% RH
  • MTBF: CS551-H310-BCA: 740,203 hrs @ 25°C; CS551-H310-ECA: 742,388 hrs @ 25°C (Telcordia Issue 4)
  • Mechanism: 3.5" SBC Form Factor, 146mm x 102mm, PCB: 1.6mm, Top Side: 25.27mm, Bottom Side: 7.68 mm
  • Packing List: 1 CS551 board, 1 COM port cable (250mm), 1 Serial ATA data cable (500mm), 1 Serial ATA power cable (250mm), 1 Heat sink (43.2mm)
  • Country of Origin: Taiwan

Ordering Information
  • CS551-C246-BCA: 1 SODIMM, 2 LAN, 1 COM, 4 USB 3.1 Gen2, 2 USB 2.0, 12V, -5 to 65°C
  • CS551-H310-BCA: 1 SODIMM, 2 LAN, 1 COM, 4 USB 3.1 Gen1, 2 USB 2.0, 12V, -5 to 65°C
  • CS551-Q370-BCA: 1 SODIMM, 2 LAN, 1 COM, 4 USB 3.1 Gen2, 2 USB 2.0, 12V, -5 to 65°C
  • CS551-C246-ECA: 1 SODIMM, 2 LAN, 1 COM, 4 USB 3.1 Gen2, 2 USB 2.0, 12V, -30 to 80°C
  • CS551-H310-ECA: 1 SODIMM, 2 LAN, 1 COM, 4 USB 3.1 Gen1, 2 USB 2.0, 12V, -30 to 80°C
  • CS551-Q370-ECA: 1 SODIMM, 2 LAN, 1 COM, 4 USB 3.1 Gen2, 2 USB 2.0, 12V, -30 to 80°C

Optional Items
  • USB port cable (A81-001032-016G, 200mm)
  • Power adapter (671-110006-100G: 100W, 12V, TDP 35W; 671-106012-000G: 60W, 12V, DC Jack, TDP 15W)
  • 4 pin to DC jack cable (A81-004051-016G, 100mm)
  • Audio cable (A81-022007-016G, 160mm)
  • Cooler fan (A71-101303-010G, Height: 34.6mm)
  • Heater (612-KP4040-000G)

Characteristics / Technical Specifications
  • Form Factor: 3.5" SBC
  • Processor: 8th/9th Gen Intel® Core™ i3/i5/i7, Pentium®, Celeron®
  • Chipset: Intel® C246
  • Memory: 1 DDR4 SODIMM up to 32GB
  • Display: LVDS + 2 x DP++ (up to 4096x2304 @ 60Hz)
  • Expansion: 1 x M.2 M Key, 1 x Mini PCIe
  • I/O: 2 Intel GbE, 4 USB 3.1, 2 USB 2.0
  • Operating Temp: -30°C to 80°C (model dependent)
  • Certifications: RoHS, CE, FCC, UKCA
  • Country of Origin: Taiwan
