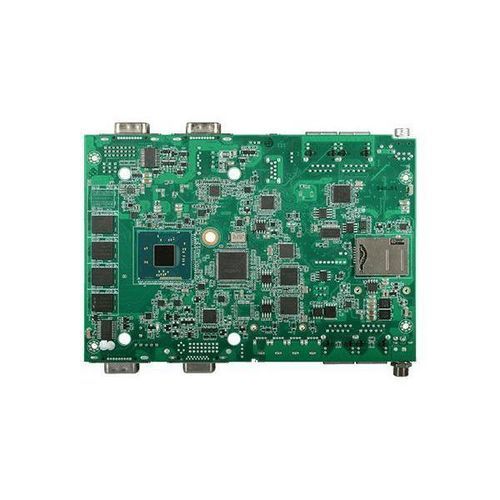

4" motherboard BT259

Intel® Atom E3845Intel® Celeron J1900DDR3L DRAM

Product Overview

• Intel Atom® Processor E3800 4" SBC
• 2GB/4GB DDR3L memory down
• 1 VGA or 1 DVI-I (option)
• Expansion: 2 Mini PCIe
• Rich I/O: 4 Intel GbE, 3 COM, 1 USB 3.0, 5 USB 2.0

Features

• COM ESD Protection: Air Gap ±15kv
• DVI-I
• VGA
• Mini PCIe
• DDR3L

Certifications

• RoHS Certification
• CE Certification
• FCC Certification

System Specifications
System
Processor: Intel® Atom™ E3845, Quad Core, 2M Cache, 1.91GHz, 10W
Intel® Celeron® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W
BGA 1170 packaging technology
22nm process technology
Memory: 4GB Memory onboard (E3845), Single Channel DDR3L 1333MHz; 2GB Memory onboard (J1900), Single Channel DDR3L 1066MHz
BIOS: AMI SPI 64Mbit

Graphics
Controller: Intel® HD Graphics 4600
Display: 1 VGA/1 DVI-I (available upon request); DVI: resolution up to 1920x1080 @ 60Hz; VGA: 24-bit, resolution up to 2560x1600 @ 60Hz

Expansion
Interface: 2 x Full-size Mini PCIe (PCIe, USB, and 3G signals for 3G or GPRS module)

Ethernet
Controller: 4 x Intel® I210 PCI Express (10/100/1000Mbps)

LED
Indicators: 1 x status LED, 1 x HDD LED

Front I/O
Ethernet: 2 x GbE (RJ-45)
Serial: 1 x RS232/422/485
USB: 1 x USB 3.0 (Type A)
DIO: 1 x 8-bit DIO
Buttons: 1 x reset button, 1 x power button

Rear I/O
Ethernet: 2 x GbE (RJ45)
Serial: 1 x RS232/422/485
USB: 4 x USB 2.0
Display: 1 VGA/1 DVI-I (available upon request)

Internal I/O
USB: 2 x USB 2.0
SATA: 1 x SATA 2.0, 1 x SATA Power
DIO: 1 x 8-bit DIO

Watchdog Timer
Output & Interval: Watchdog timeout programmable via software from 1 to 255 seconds

Security
TPM: Available Upon Request

Power
Type: 16~24V
Connector: DC-in jack
Consumption: BT259-45-I-B-4: 21.8W with E3845 at 1.91GHz and 4GB DDR3L memory down

OS Support
Windows 7, WES 7, Windows 8.1, WES 8, Linux
Note: Windows 10 will be available upon request.

Environment
Temperature: Operating: 0°C~60°C; Storage: -20°C~85°C
Humidity: Operating: 5% to 90%; Storage: 5 to 90% RH

Mechanism
Dimensions: 4" board; 165mm (6.49") x 115mm (4.53")
Height: PCB: 1.6mm; Top Side: 16.5mm; Bottom Side: 2mm

Standards and Certifications
Certifications: CE, FCC Class B, RoHS

Packing List
1 BT259 board; 1 Serial ATA data with power cable: A81-002008-000G; 1 Heat spreader: A31-030022-200G

Country of Origin
Taiwan

Ordering Information

• BT259-45-I-B-4: Fanless, Intel® Atom™ E3845, 4GB DDR3L SODIMM, 3 COM, 0°C to 60°C
• BT259-19-I-B-2: Fanless, Intel® Celeron® J1900, 2GB DDR3L SODIMM, 3 COM, 0°C to 60°C

Optional Items

• USB port cable (A81-001032-016G)
• Power adapter (671-112009-100G): 120W, 19V

Technical Specifications

• Processor: Intel® Atom™ E3845 or Intel® Celeron® J1900
• Memory: 2GB/4GB DDR3L onboard
• Expansion: 2 x Mini PCIe
• Display: 1 VGA or 1 DVI-I (option)
• Ethernet: 4 x Intel GbE
• COM: 3 ports
• USB: 1 x USB 3.0, 5 x USB 2.0
• Certifications: CE, FCC Class B, RoHS
• Operating Temperature: 0°C~60°C
• Dimensions: 165mm x 115mm
