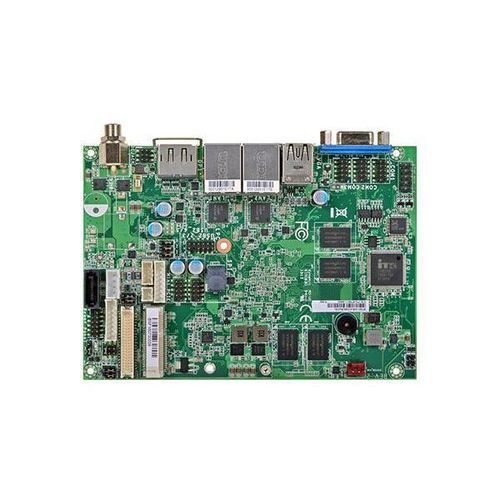

3.5" SBC BT553

Intel® Atom E3800x86NXP

Product Overview

• 2GB/4GB DDR3L memory down
• 1 VGA, 1 LVDS, 1 DP
• Expansion: 1 Mini PCIe
• Rich I/O: 2 Intel GbE, 3 COM, 1 USB 3.0, 5 USB 2.0
• Intel Atom® Processor E3800

Features

• COM ESD Protection: Air Gap ±15kv
• Wide-temp: -40~85°C
• Fanless Design
• DP
• DDR3L

Certifications

• RoHS Certification
• CE Certification
• FCC Certification

System Specifications
Processor
Intel® Atom™ E3826, Dual Core, 1M Cache, 1.46GHz, 7W
Intel® Atom™ E3845, Quad Core, 2M Cache, 1.91GHz, 10W
Intel® Celeron® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W

Memory
2GB/4GB DDR3L memory down
Dual channel DDR3L 1066/1333MHz

BIOS
AMI SPI 64Mbit

Graphics
Controller: Intel® HD Graphics
Feature: Supports hardware acceleration for DirectX 11, OCL 1.2, OGL 4.0, H.264, MPEG2, MVC, VC-1, WMV9 and VP8 (supported version dependent on OS)
Display:
1 x VGA
1 x LVDS
1 x DP
VGA: 24-bit, resolution up to 2560x1600 @ 60Hz
LVDS: NXP PTN3460, 24-bit, dual channel, resolution up to 1920x1200 @ 60Hz
DP: supports DP++, resolution up to 2560x1600 @ 60Hz

Expansion
Interface: 1 x Mini PCIe

Audio
Audio Codec: Realtek ALC888

Ethernet
Controller: 2 x Intel® I210 PCIe (10/100/1000Mbps)

Rear I/O
Ethernet: 2 x GbE (RJ45)
USB: 1 x USB 3.0, 1 x USB 2.0
Display: 1 x DP, 1 x VGA

Internal I/O
Serial: 1 x RS485 (2.0mm pitch), 2 x RS232 (2.0mm pitch)
USB: 4 x USB 2.0
Display: 1 x LVDS
Audio: 1 x Line-out, 1 x Mic-in
SATA: 1 x SATA 2.0 (up to 3Gb/s)
DIO: 8-bit DIO
CANBus: 1 x SMBus

Watchdog Timer
Output & Interval: System Reset, Programmable via Software from 1 to 255 Seconds

Security
TPM: Available Upon Request

Power
Type: Wide Range 15~36V
Connector: DC-in Jack, Vertical Type Connector (4-pin) (available upon request)
Consumption: Idle: E3845 10W: 15V @ 0.413A (6.195W), Max: E3845 10W: 15V @ 0.986A (14.790W)

OS Support
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8.1 Embedded Pro x86 (32-bit)
Windows 8.1 Embedded Pro x64 (64-bit)
Windows 10 IoT Enterprise (64-bit)

Environment
Temperature:
Operating: 0°C to 60°C - Atom, Celeron (Fanless)
-20°C to 70°C - Celeron (Fanless)
-40°C to 85°C - Atom (Fanless)
Storage: -40°C to 85°C
Humidity: Operating: 5% to 90% RH, Storage: 5 to 90% RH
MTBF: 373,288 hrs @ 25°C; 218,452 hrs @ 45°C
Calculation model: Telcordia Issue 2, Method I Case 3
Environment: GB, GC – Ground Benign, Controlled

Mechanism
Dimensions: 3.5" board, 146mm (5.75") x 102mm (4.02")
Height: PCB: 1.6mm, Top Side: 16.5mm, Bottom Side: 3mm

Packing List
1 BT553 board
1 Serial ATA data with power cable: A81-002013-000G
1 Heat spreader with heat sink: 761-BT5511-000G

Country of Origin
Taiwan

Ordering Information

• BT553-NB-21E26: Fanless, Intel® Atom™ E3826, 2 GB DDR3L SODIMM, 16GB eMMC, 3 COM, 0 to 60°C
• BT553-NB-41E45: Fanless, Intel® Atom™ E3845, 4 GB DDR3L SODIMM, 16GB eMMC, 3 COM, 0 to 60°C
• BT553-NB-41J00: Fanless, Intel® Celeron® J1900, 4 GB DDR3L SODIMM, 16GB eMMC, 3 COM, 0 to 60°C
• BT553-NT-41E45: Fanless, Intel® Atom™ E3845, 4 GB DDR3L SODIMM, 16GB eMMC, 3 COM, -40 to 85°C

Optional Items

• USB port cable (A81-001032-016G)
• COM port cable (332-753040-000G)
• Power adapter (671-112009-100G): 120W, 19V

Technical Specifications

• Processor: Intel® Atom™ E3826/E3845, Intel® Celeron® J1900
• Memory: 2GB/4GB DDR3L, Dual channel DDR3L 1066/1333MHz
• Graphics: Intel® HD Graphics, 1 x VGA, 1 x LVDS, 1 x DP
• Expansion: 1 x Mini PCIe
• Audio: Realtek ALC888
• Ethernet: 2 x Intel® I210 PCIe (10/100/1000Mbps)
• Rear I/O: 2 x GbE (RJ45), 1 x USB 3.0, 1 x USB 2.0, 1 x DP, 1 x VGA
• Internal I/O: 1 x RS485, 2 x RS232, 4 x USB 2.0, 1 x LVDS, 1 x Line-out, 1 x Mic-in, 1 x SATA 2.0, 8-bit DIO, 1 x SMBus
• Watchdog Timer: System Reset, Programmable via Software from 1 to 255 Seconds
• Security: TPM (Available Upon Request)
• Power: Wide Range 15~36V, DC-in Jack, Vertical Type Connector (4-pin)
• OS Support: Windows 7/8.1/10
• Operating Temperature: 0°C to 60°C (Atom, Celeron Fanless), -20°C to 70°C (Celeron Fanless), -40°C to 85°C (Atom Fanless)
• Storage Temperature: -40°C to 85°C
• Humidity: 5% to 90% RH
• MTBF: 373,288 hrs @ 25°C; 218,452 hrs @ 45°C
• Dimensions: 146mm x 102mm
• Height: PCB 1.6mm, Top Side 16.5mm, Bottom Side 3mm
• Packing List: 1 BT553 board, 1 Serial ATA data with power cable, 1 Heat spreader with heat sink
• Country of Origin: Taiwan
