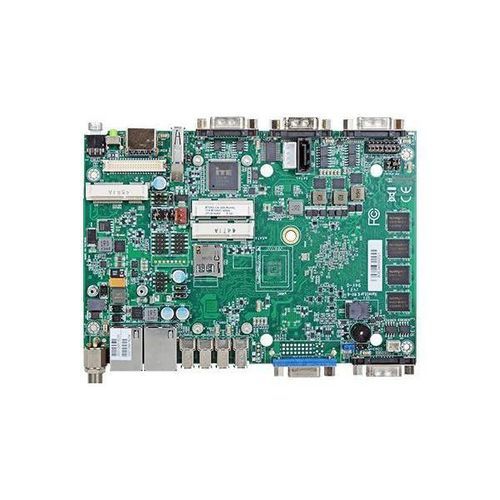

4" SBC BT253

Intel® Atom E3800x86Intel® Celeron N2807

Product Overview

• Intel Atom® Processor E3800 4" SBC
• 2GB/4GB DDR3L ECC memory down
• 1 VGA, 1 LVDS, 1 HDMI
• Expansion: 3 Mini PCIe
• Rich I/O: 2 Intel GbE, 6 COM, 1 USB 3.0, 5 USB 2.0

Features

• COM ESD Protection: Air Gap ±15kv
• Fanless Design
• Display: HDMI, VGA
• Mini PCIe expansion

Certifications

• RoHS Certification
• UL Certification
• CE Certification
• FCC Certification

System
Processor: Intel Atom® E3845, Quad Core, 2M Cache, 1.91GHz, 10W
Intel Atom® E3825, Dual Core, 1M Cache, 1.33GHz, 6W
Intel® Celeron® N2807, Dual Core, 1M Cache, 1.58GHz (2.16GHz), 4.3W
Intel® Celeron® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W
Memory: 2GB/4GB DDR3L ECC memory down (-E45/-E25), 2GB/4GB DDR3L memory down (-J00/-N07), Single channel DDR3L 1333MHz (-E45/-J00/-N07), Single channel DDR3L 1066MHz (-E25)
BIOS: AMI SPI 64Mbit

Graphics
Controller: Intel® HD Graphics
Feature: Supports hardware acceleration for DirectX 11, OCL 1.2, OGL 4.0, H.264, MPEG2, MVC, VC-1, WMV9 and VP8 (supported version dependent on OS)
Display: 1 x LVDS, 1 x HDMI, 1 x VGA
LVDS: NXP PTN3460, 24-bit, dual channel, resolution up to 1920x1200 @ 60Hz
HDMI, DVI: resolution up to 1920x1080 @ 60Hz
VGA: 24-bit, resolution up to 2560x1600 @ 60Hz

Expansion
Interface: 3 x Mini PCIe, 1 x SIM

Audio
Audio Codec: Realtek ALC888 (Optional)

Ethernet
Controller: 2 x Intel® I210 PCIe (10/100/1000Mbps)

Front I/O
Serial: 3 x RS232/422/485 (DP-9)
USB: 1 x USB 3.0
Display: 1 x HDMI

Rear I/O
Ethernet: 2 x GbE (RJ45)
Serial: 1 x RS232/422/485 (DP-9)
USB: 4 x USB 2.0
Display: 1 x VGA

Internal I/O
Serial: 2 x RS232 (2.0mm pitch)
USB: 1 x USB 2.0
Display: 1 x LVDS
Audio: 1 x Mic-in (Optional)
SATA: 1 x SATA 2.0 (up to 3Gb/s)

Watchdog Timer
Output & Interval: System Reset, Programmable via Software from 1 to 255 Seconds

Security
TPM: Available Upon Request

Power
Type: Wide Range 16~24V
Connector: DC-in
Consumption: BT253-C4-E45: 18.12W with E3845 at 1.91GHz and 4GB DDR3L ECC memory down

OS Support
Windows 10 IoT Enterprise (64-bit)
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8.1 Enterprise x86 (32-bit)
Windows 8.1 Enterprise x64 (64-bit)
Linux

Environment
Temperature: Operating: 0°C to 60°C - Atom, Celeron (Fanless); 0°C to 85°C - Celeron (Fanless), upon request; -20°C to 85°C - Atom (Fanless), upon request. Storage: -40°C to 85°C
Humidity: Operating: 5% to 90% RH; Storage: 5% to 90% RH

Mechanism
Dimensions: 4" board, 165mm x 115mm (6.49" x 4.53")
Height: PCB: 1.6mm; Top Side: 14.31mm; Bottom Side: 2mm

Standards and Certifications
Certifications: CE, FCC, RoHS, UL

Packing List
1 BT253 board
1 Serial ATA data with power cable: A81-002008-000G
1 Heat spreader: A31-030022-200G

Country of Origin
Taiwan

Ordering Information

• BT253-C4-E45: Fanless, Intel® Atom™ E3845, 4GB DDR3L ECC memory down, 6 COM, 0 to 60°C
• BT253-C2-N07: Fanless, Intel® Celeron® N2807, 2GB DDR3L ECC memory down, 6 COM, 0 to 60°C
• BT253-C4-J00: Fanless, Intel® Celeron® J1900, 4GB DDR3L ECC memory down, 6 COM, 0 to 60°C
• BT253-C2-E25: Fanless, Intel® Atom™ E3825, 2GB DDR3L ECC memory down, 6 COM, 0 to 60°C

Optional Items

• USB port cable (A81-001032-016G)
• COM port cable (332-753040-000G)
• Power adapter (671-112009-100G): 120W, 19V

Technical Specifications

• Processor: Intel Atom® E3845/E3825, Intel® Celeron® N2807/J1900
• Memory: 2GB/4GB DDR3L ECC or DDR3L
• Graphics: Intel® HD Graphics, 1 x LVDS, 1 x HDMI, 1 x VGA
• Expansion: 3 x Mini PCIe, 1 x SIM
• Ethernet: 2 x Intel® I210 PCIe (10/100/1000Mbps)
• I/O: 6 COM, 1 USB 3.0, 5 USB 2.0
• Audio: Realtek ALC888 (Optional)
• Power: Wide Range 16~24V DC-in
• Dimensions: 165mm x 115mm
• Certifications: CE, FCC, RoHS, UL
