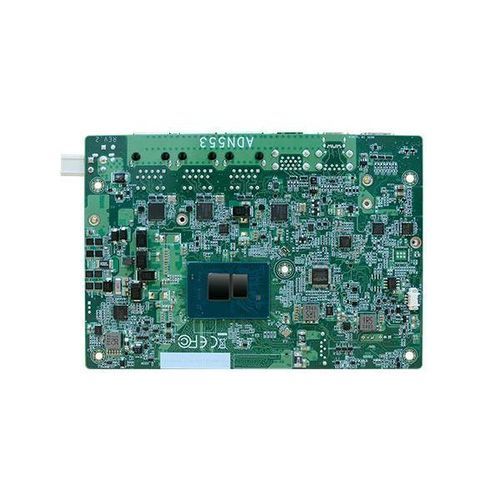

3.5" SBC ADN553

Intel® Core™ i3-N305Intel Atom® x7425EIntel® Processor N97

Product Overview

• Intel® Atom® Alder Lake-N Processors 3.5" SBC
• 1 DDR5 SO-DIMM
• 4K High Resolution: Supports 4K/2K resolution
• Triple Display: 1 HDMI, 1 Type-C DP Alt. Mode, 1 LVDS/eDP
• Rich I/O Connectivity: 3 2.5GbE LAN, 4 USB 3.2, 2 USB 2.0, 1 SATA
• Multiple Expansion: 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key

Features

• 4K2K Display
• Multiple Expansion
• Triple Independent Display
• DDR5 Memory
• Rich I/O

Certifications

• RoHS Certification
• CE Certification
• FCC Certification
• KC Certification
• UKCA Certification

Technical Specifications
System
Processor: Intel® Atom® Alder Lake-N Processors, TDP up to 15W. Embedded: Intel Atom® x7425E (4 cores, 6M Cache, up to 3.40 GHz, 12W), x7213E (2 cores, 6M Cache, up to 3.20 GHz, 10W), x7211E (2 cores, 6M Cache, up to 3.20 GHz, 6W). PC Client: Intel® Core™ i3-N305 (8 cores, 6M Cache, up to 3.80 GHz, 15W), Intel® Processor N200 (4 cores, 6M Cache, up to 3.70 GHz, 6W), N97 (4 cores, 6M Cache, up to 3.60 GHz, 12W), N50 (2 cores, 6M Cache, up to 3.40 GHz, 6W).
Memory: One 262-pin SODIMM up to 16GB, Single Channel DDR5 4800MHz
BIOS: AMI SPI 256Mbit

Graphics
Controller: Intel® UHD Graphics
Feature: OpenGL 4.6, Direct X 12.1, OpenCL 3.0; HW Decode: HEVC, VP9, AV1, AVC; HW Encode: HEVC, VP9, AVC
Display: 1 x HDMI, 1 x Type-C DP Alt. Mode, 1 x LVDS/eDP. HDMI: up to 4096x2160@24Hz; DP: up to 3840x2160@60Hz; LVDS: dual channel 24-bit, up to 1920x1200@60Hz; eDP: up to 4096x2160@60Hz
Triple Displays: HDMI + Type-C DP Alt. Mode + LVDS/eDP

Expansion
Interface: 1 x M.2 M key 2280/2242 (PCIe Gen3 x1/SATA3.0), 1 x M.2 B key 3052/3042 (USB3.0/USB2.0, optional PCIe x1), 1 x SIM slot for 4G/5G, 1 x M.2 E key 2230 (USB/PCIe x1, support CNVi)

Audio
Audio Codec: Realtek ALC888S

Ethernet
Controller: 3 x Intel® I226V (10/100/1000/2500Mbps). LAN3 option with M.2 3052 PCIe x1.

Rear I/O
Ethernet: 3 x 2.5GbE (RJ-45)
USB: 4 x USB 3.2
Display: 1 x HDMI, 1 x Type-C DP Alt. Mode

Internal I/O
Serial: 1 x RS-232/422/485 (2.0mm pitch)
USB: 2 x USB 2.0 (2.0mm pitch)
Display: 1 x LVDS LCD Panel Connector and 1 x LCD/Inverter Power or 1 x eDP Connector
Audio: 1 x Audio (Line-out/Mic-in)
SATA: 1 x SATA 3.0 (up to 6Gb/s), 1 x SATA Power
DIO: 1 x 8-bit DIO

Watchdog Timer
Output & Interval: System Reset, Programmable via Software from 1 to 255 Seconds

Security
TPM: dTPM2.0

Power
Type: Wide Range 9~36V DC
Connector: Right Angle Connector (4-pin), DC-in Jack (available upon request), Vertical Type Connector (4-pin) (available upon request)
Consumption: Typical: i3-N305, 19V @ 0.45A (8.55W); Max: i3-N305, 19V @ 2.7A (51.3W)
RTC Battery: CR2032 Coin Cell

OS Support
OS Support (UEFI Only): Windows 10 IoT Enterprise (64-bit), Windows 11, Linux

Environment
Temperature: Operating: -5 to 65°C; Storage: -40 to 85°C
Humidity: Operating: 5 to 90% RH; Storage: 5 to 90% RH
MTBF: 593,096 hrs @ 25°C; 398,330 hrs @ 45°C; 276,293 hrs @ 60°C. Calculation Model: Telcordia Issue 4. Environment: GB, GC - Ground Benign, Controlled

Mechanism
Dimensions: 3.5" SBC Form Factor, 146mm (5.75") x 102mm (4.02")
Height: PCB: 1.6mm; Top Side: 15.0mm; Bottom Side: 4.0mm

Standards and Certifications
Certifications: CE, FCC Class B, RoHS, UKCA, KC

Packing List
• 1 ADN553 board
• 1 COM port cable (Length: 250mm, 1x COM port), A81-015115-018G
• 1 SATA DATA/Power cable (Length: 300mm), A81-002144-018G
• 1 Heat sink (Height: 29 mm), A71-008353-020G

Country of Origin: Taiwan

Ordering Information

• ADN553-BN-x7425E: Intel Atom® x7425E, 4C, 12W. 1 DDR5 SO-DIMM, HDMI + Type-C DP Alt. Mode + LVDS, 3 2.5G LAN, 1 RS232/422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -5 to 65°C
• ADN553-BN-x7211E: Intel Atom® x7211E, 2C, 6W. 1 DDR5 SO-DIMM, HDMI + Type-C DP Alt. Mode + eDP, 3 2.5G LAN, 1 RS232/422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -5 to 65°C
• ADN553-BN-N305: Intel® Core™ i3-N305, 8 cores, 15W. 1 DDR5 SO-DIMM, HDMI + Type-C DP Alt. Mode + eDP, 3 2.5G LAN, 1 RS232/422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -5 to 65°C
• ADN553-BN-N200: Intel® Processor N200, 4 cores, 6W. 1 DDR5 SO-DIMM, HDMI + Type-C DP Alt. Mode + LVDS, 3 2.5G LAN, 1 RS232/422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -5 to 65°C
• ADN553-BN-N97: Intel® Processor N97, 4C, 12W. 1 DDR5 SO-DIMM, HDMI + Type-C DP Alt. Mode + eDP, 3 2.5G LAN, 1 RS232/422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -5 to 65°C
• ADN553-BN-N50: Intel® Processor N50, 2 cores, 6W. 1 DDR5 SO-DIMM, HDMI + Type-C DP Alt. Mode + eDP, 3 2.5G LAN, 1 RS232/422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -5 to 65°C
• ADN553-BN-x7213E: Intel Atom® x7213E, 2C, 10W. 1 DDR5 SO-DIMM, HDMI + Type-C DP Alt. Mode + LVDS, 3 2.5G LAN, 1 RS232/422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -5 to 65°C

Optional Items

• Power adapter: 60W, 12V
• USB 2.0 cable: Length 200mm, 2 USB ports
• Front panel cable: Length 250mm
• Audio cable: Length 160mm
• Heat spreader: Height 7mm
• 4-pin power to DC jack cable: Length 100mm
