Chip drum vac Model 6293

industrialdrydust

Overview

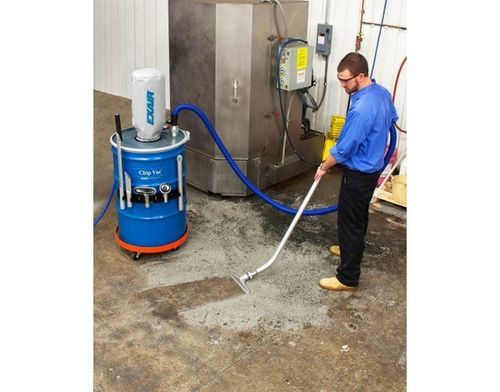

EXAIR's Deluxe Chip Vac System adds features that make the Chip Vac™ easy to use for everyday tasks. EXAIR's compressed air operated Chip Vac is an industrial duty vacuum designed specifically for vacuuming chips. It creates a powerful direct flow action that vacuums metal, wood or plastic chips into an ordinary drum. Designed for occasional use with dusty materials, the included filter bag keeps the surrounding air clean. Warning: Do not use with any material that has a low flash point or with flammable liquids such as fuel oil, alcohol, mineral spirits, gasoline or kerosene.

Applications

• CNCs
• Lathes
• Saws
• Mills
• Drills
• Grinders
• Routers
• Molding machines
• Absorbent pick-up

Advantages

• No moving parts
• Low cost
• No motors to clog or wear out
• No electricity required
• Chips go directly into a drum
• Powerful direct flow action
• Includes accessories
• 50% quieter than electric vacs

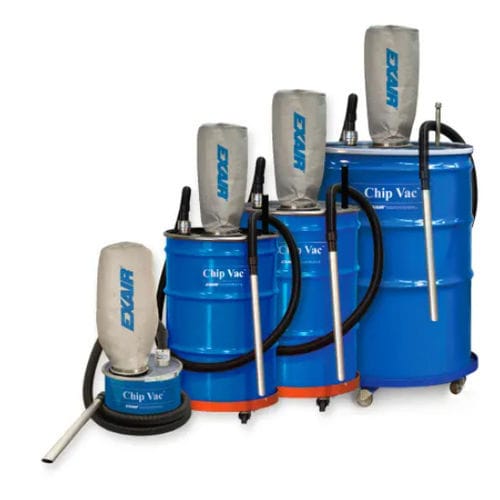

Styles

• Chip Vac (standard) – general purpose chip cleanup and transfer; includes Chip Vac vacuum, lever lock drum lid, auto-safety shutoff valve, filter bag, 10' (3 m) of flexible vacuum hose at 1-1/2" (38 mm) I.D., chip wand, two extension wands, crevice tool, brush and skimmer.
• Deluxe Chip Vac System – includes everything that comes with the Chip Vac plus a drum dolly and a tool holder; components sized to fit closed head drum (30, 55 or 110 gallons).
• Premium Chip Vac System – upgrades the Deluxe by adding a 30, 55 or 110 gallon drum, heavy duty aluminum tools, static resistant hose, and 20' (6.1 m) compressed air hose with quick connect fittings.
• 5 Gallon Mini Chip Vac – same features as Chip Vac but sized for a 5 gallon drum; includes 5 gallon drum with lid and locking ring and aluminum chip wand.
• 5 Gallon Deluxe Mini Chip Vac – makes the Mini easier to use in multiple locations by adding a drum dolly.

What's Included?

• Chip Vac vacuum assembly
• Lever lock drum lid
• Manual shutoff valve
• Filter bag
• 10' (3 m) flexible vacuum hose at 1-1/2" (38 mm) I.D.
• Chip wand
• Two extension wands
• Crevice tool
• Brush
• Skimmer
• Tool holder (not included with Deluxe Mini Chip Vac System)
• Drum dolly

Performance (Chip Vac System Performance)
Drum Size | Pressure Supply (PSIG / BAR) | Air Consumption (SCFM / SLPM) | Inlet (NPT) | Sound Level (dBA)
30, 55 & 110 | 80 PSIG / 5.5 BAR | 40 SCFM / 1,132 SLPM | 3/8 | 77 dBA
5 | 80 PSIG / 5.5 BAR | 33 SCFM / 934 SLPM | 3/8 | 77 dBA

How It Works
Compressed air, normally 80-100 PSIG (5.5 - 6.9 BAR), flows through the inlet into an annular plenum chamber. It is injected into the throat through directed nozzles. These jets of air create a vacuum at the intake which draws material in, accelerates it through the unit, and directs it to the bottom of the drum. The airflow exhausts through the port in the drum lid. Airborne particles are trapped by the filter bag. Warning: Do not use with combustible dust.

Technical specifications

• Brand: EXAIR
• Model / SKU: P6293
• Commercial name: Deluxe Chip Vac™ System
• Drum sizes available: 5, 30, 55 and 110 gallons
• Recommended pressure supply: typically 80 PSIG (5.5 BAR)
• Air consumption: 40 SCFM (1,132 SLPM) for 30/55/110 gal; 33 SCFM (934 SLPM) for 5 gal
• Air inlet: 3/8" NPT
• Sound level: approximately 77 dBA
• Includes filter bag (for dusty materials)
• Included accessories: 10' (3 m) 1-1/2" I.D. flexible hose, chip wand, two extension wands, crevice tool, brush, skimmer, lever lock drum lid, manual shutoff valve; Deluxe adds drum dolly and tool holder
• Power: compressed air operated (no electricity)
• Safety note: Not for use with low flash point or flammable liquids and avoid use with combustible dust
• Price (site): displayed $1,170.00 (see product price field)
