Reversible drum vac Model 6395

industrialwetliquids

Overview

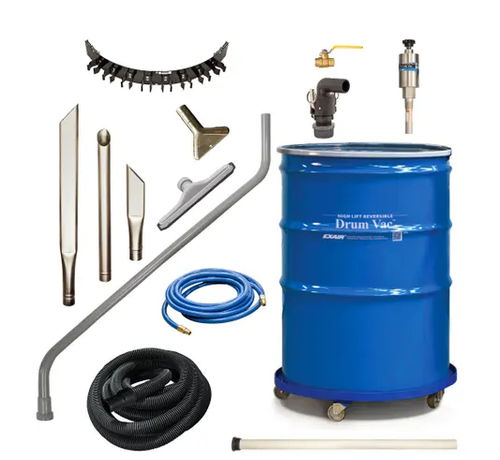

The EXAIR Premium High Lift Reversible Drum Vac™ System (model P6395) attaches to closed-head 30, 55 or 110 gallon drums to vacuum and transfer liquids. The stainless-steel, compressed-air two-way pump lifts liquids up to 15 feet and typically fills a 55 gallon drum in under 85 seconds. A simple knob reverses the pump to quickly empty the drum. The Premium configuration adds a drum, lid with locking ring, heavy-duty aluminum tools and a 20' compressed air hose to the Deluxe kit for faster startup.

Warning
Do not use with low flash point or flammable liquids (fuel oil, alcohol, mineral spirits, gasoline, kerosene, etc.).

Applications

• Below-grade coolant sumps
• Deep wells and pits
• Underground storage tanks
• Drains and cisterns
• Deep-hole broaching and machining
• Bulk storage tank transfer

Advantages

• No moving parts in the pump mechanism
• Maintenance-free operation
• Stainless steel pump construction
• No electrical power required for operation
• Built-in pressure/vacuum relief
• Compact, portable and quick to install
• Automatic spill-free safety shutoff
• Fits standard closed-head drums (30, 55, 110 gal)

Styles

• High Lift Reversible Drum Vac (standard): compressed-air powered stainless-steel two-way pump with 1/4 NPT shutoff valve, 20' (6.1 m) of 1-1/2" (38 mm) I.D. vacuum hose with 90° quick-release elbow, and an aluminum wand sized for closed-head drums (30, 55 or 110 gallons).
• Deluxe High Lift Reversible Drum Vac System: adds a drum dolly, ABS spill recovery kit, two extension wands, crevice and skimmer tools, and a tool holder to the standard unit; sized for closed-head drums (30, 55 or 110 gallons).
• Premium High Lift Reversible Drum Vac System: includes everything in the Deluxe system plus a 30, 55 or 110 gallon drum, lid with locking ring and 20' (6.1 m) compressed air hose for easier startup.
• High Lift Reversible Drum Vac Only: pump assembly without accessories.

What's Included?

• Two-way pump assembly (1/4 NPT)
• Automatic safety shutoff valve
• 20' (6.1 m) flexible vacuum hose, 1-1/2" (38 mm) I.D.
• 90° quick-release elbow for 1-1/2" (38 mm) vacuum hose
• ABS spill recovery kit
• One aluminum wand
• Two aluminum extension wands
• Aluminum crevice tool
• Aluminum skimmer tool
• Tool holder
• Drum dolly
• 30, 55, or 110 gallon drum (depending on configuration)
• 20' (6.1 m) compressed air hose (Premium system)

Performance
Pressure supply: 80 PSIG (5.5 BAR)
Air consumption: 43 SCFM (1,218 SLPM)
Maximum lift: 15 ft (180" H2O / 336 mm Hg)
Water flow rate (example): 30 GPM (114 LPM)
Fill time: fills a 55 gal drum in under 85 seconds (typical, at recommended supply)
Sound level (example): 83 dBA

Specifications

• Brand: EXAIR
• Model / SKU shown on page: P6395
• Denomination: Premium High Lift Reversible Drum Vac™ System
• Available drum capacities: 30, 55, 110 gallon
• Pump: compressed-air powered stainless-steel two-way reversible pump
• Maximum lift capability: up to 15 feet
• Vacuum hose: 20' (6.1 m) flexible hose, 1-1/2" (38 mm) I.D.
• Compressed air hose: 20' (6.1 m) included with Premium system
• Air consumption (typical): 43 SCFM (1,218 SLPM) at 80 PSIG
• Water flow rate (example): 30 GPM (114 LPM)
• Sound level (example): 83 dBA
• Construction: stainless steel pump; heavy-duty aluminum tools
• Safety features: automatic safety shutoff, built-in pressure/vacuum relief
• Operation: no electrical power required; knob selects fill or empty
