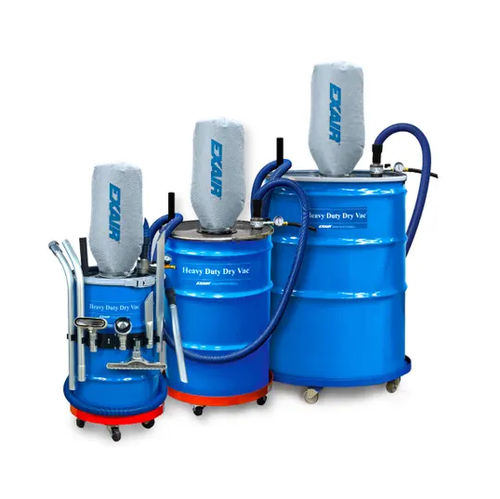

Heavy-duty drum vac Model 6197

industrialdrychip

Description
The Heavy Duty Dry Vac™ System (model P6197) converts a 30, 55 or 110 gallon open-top drum into an industrial dry vacuum. Engineered to move more dry material with less wear, the unit features hardened alloy construction and a high-flow design. It requires no electricity and has no moving parts for maintenance-free operation. Drum not included. Warning: Do not use with low flash point materials, flammable liquids (fuel oil, alcohol, mineral spirits, gasoline, kerosene) or combustible dust.

Applications

• Work surfaces
• Abrasive tumbling media
• Industrial machinery
• Shop floors
• Sand blasting equipment
• Grinders
• Punch presses
• Absorbent pick-up
• Building maintenance/remodeling
• Saws
• Gravel

Advantages

• Higher throughput for dry materials
• Hardened alloy resists premature wear
• No moving parts — maintenance free
• No motors to clog or wear
• No electricity required
• Continuous duty and high capacity
• Static-resistant vacuum hose
• Quiet operation
• Powerful direct flow action
• Heavy-duty accessories

Styles
Standard Heavy Duty Dry Vac: Includes the Heavy Duty Dry Vac vacuum, lever lock drum lid, automatic safety shutoff valve, filter bag, 10' (3 m) polyethylene static-resistant vacuum hose 1-1/2" (38 mm) I.D., hose hanger, 1/2 NPT quick connect couplings, 20' (6.1 m) compressed air hose with swivel fitting, pressure gauge and aluminum chip wand.

Deluxe Heavy Duty Dry Vac System: Adds drum dolly, heavy-duty aluminum tools (2-piece double bend wand, 12" (305 mm) floor tool, 11" (279 mm) crevice tool, 24" (610 mm) crevice tool, skimmer tool with detachable brush, tool holder) and a 3-1/2" (89 mm) diameter dust brush with conductive bristles.

Premium Heavy Duty Dry Vac System: Adds a 30, 55, or 110 gallon drum to the Deluxe system.

What's Included?

• Heavy Duty Dry Vac unit
• Lever lock drum lid
• Automatic safety shutoff valve
• Filter bag
• 10' (3 m) polyethylene static-resistant vacuum hose (1-1/2" / 38 mm I.D.)
• Hose hanger
• 1/2 NPT quick connect couplings
• 20' (6.1 m) compressed air hose with swivel fittings
• Pressure gauge
• Aluminum chip wand

Performance
Drum sizes: 30, 55 & 110 gal
Recommended pressure supply: 80 PSIG (5.5 BAR)
Air consumption: 68 SCFM (1,924 SLPM)
Inlet: 3/8" NPT (exhaust through drum lid)
Sound level: 82 dBA

How it works (summary)
Compressed air (typically 80–100 PSIG / 5.5–6.9 BAR) is injected through directed nozzles into an annular plenum. Jets create a vacuum at the intake, drawing material in and accelerating it into the drum. Airborne particles are captured by the filter bag. The unit and tools are designed for rugged industrial use.

Specifications

• Model (SKU): P6197
• Commercial name: Heavy Duty Dry Vac™ System
• Drum capacities available: 30, 55, 110 gallons
• Recommended pressure supply: 80 PSIG (5.5 BAR)
• Air consumption: 68 SCFM (1,924 SLPM)
• Air inlet: 3/8" NPT
• Sound level: 82 dBA
• Vacuum hose: 10' (3 m) static-resistant polyethylene, 1-1/2" (38 mm) I.D.
• Compressed air hose: 20' (6.1 m) with swivel fitting
• Included accessories: lever lock drum lid, automatic safety shutoff valve, filter bag, hose hanger, 1/2 NPT quick connect couplings, pressure gauge, aluminum chip wand
• Construction: hardened alloy to resist wear
• Operation: no electricity, no moving parts (maintenance free)
• Additional options: Deluxe and Premium system upgrades (Deluxe adds tools and dolly; Premium adds drum)
• Warnings: Not for use with flammable liquids, low flash point materials, or combustible dust
