Industrial vacuum cleaner 6201 EasySwitch®

wetdrydust

Overview
The Deluxe EasySwitch® Wet-Dry Vac System (Model P6201) is a pneumatic vacuum that mounts on a standard 55 gallon open-top drum. EXAIR’s patented EasySwitch® design allows fast conversion between dry and liquid vacuuming by removing a single filter element. The unit delivers high vacuum performance using minimal compressed air and operates without electricity, minimizing moving parts and motor failure risks. Patent No. 11,969,134

Applications

• Coolant recovery
• Metal chips and shavings
• Workshop and factory floor cleanup
• Drain and sump maintenance
• Sawdust and wood waste
• Absorbent materials
• Mold, dust and allergen removal

Advantages

• Quick one-latch conversion between dry and wet modes
• High performance with low compressed air consumption
• Low operating sound (~79 dBA)
• Maintenance-free vacuum generator with no moving parts
• Safe operation — no electricity required
• Automatic float shutoff for spill protection
• No motors or filters that can clog during liquid handling
• Continuous-duty capable
• Fits standard 55 gallon open-top drums

EasySwitch Wet-Dry Vac Styles

• Standard: EasySwitch unit, drum lid, standard filter (or HEPA & pre-filter), 1/2" compressed air hose assembly, pressure gauge, 10' of 1.5" vacuum hose, crevice tool, 19" straight wand, skimmer tool and dust brush. (drum not included)

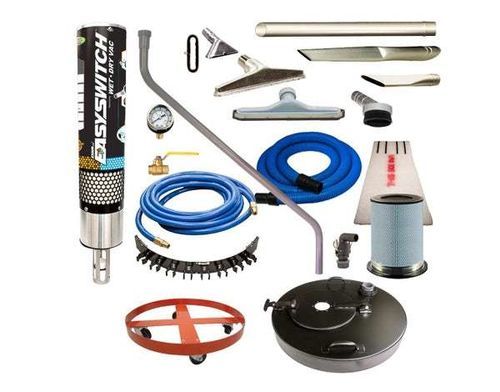

• Deluxe (P6201): Upgraded with drum dolly, 10' antistatic 1.5" hose, spill recovery kit, extension wand, round dust brush, 24" and 11" crevice tools, 12" floor tool and tool holder. (drum not included)
• Premium: Same as Deluxe but includes a 55 gallon drum.

What’s Included?

• EasySwitch Vac unit
• EasySwitch drum lid
• Standard filter or HEPA filter with pre-filter
• 10' of 1-1/2" (38 mm) antistatic vacuum hose
• Drum dolly
• 1/2" compressed air hose assembly
• Pressure gauge
• Spill recovery kit
• Extension wand
• Round dust brush
• Skimmer tool
• 24" crevice tool
• 11" crevice tool
• 12" wide floor tool
• Tool holder

Performance - EasySwitch Wet-Dry Vac Performance
Pressure Supply | Air Consumption | Lift | Vacuum Flow | Sound Level
Units: PSIG / BAR | SCFM / SLPM | inches H2O / mm Hg | CFM / LPM | dBA
80 PSIG (5.5 BAR) | 53 SCFM (1,500 SLPM) | -168 in H2O (-314 mm Hg) | 90 CFM (2,548 LPM) | 79 dBA
90 PSIG (6.2 BAR) | 59 SCFM (1,670 SLPM) | -190 in H2O (-355 mm Hg) | 92 CFM (2,605 LPM) | 80 dBA
100 PSIG (6.9 BAR) | 65 SCFM (1,840 SLPM) | -210 in H2O (-392 mm Hg) | 94 CFM (2,661 LPM) | 82 dBA

Conveying Rate Comparison for EasySwitch Wet-Dry Vac
Pressure Supply | Water | Plastic Tumbling Media | Steel Shot
Units: PSIG / BAR | GPM / LPM | lbs/min / kg/min | lbs/min / kg/min
80 PSIG (5.5 BAR) | 36 GPM (136 LPM) | 68 lbs/min (31 kg/min) | 54 lbs/min (24 kg/min)

How It Works (summary)
The EasySwitch uses a single-latch filter hatch and rubber handle for rapid filter removal. With the filter installed it vacuums dry media; remove the filter to vacuum liquids. A float shutoff in the drum automatically stops the vacuum when the drum fills with liquid.

Warnings
Do not use with flammable liquids or materials with low flash points (fuel oil, alcohol, mineral spirits, gasoline, kerosene) or with combustible dust.

Specifications

• Model / SKU: P6201
• Commercial name: Deluxe EasySwitch® Wet-Dry Vac System
• Patent: No. 11,969,134
• Sound level: ~79 dBA (conditions shown)
• Air consumption (example at 80 PSIG): 53 SCFM (~1,500 SLPM)
• Vacuum flow (example at 80 PSIG): ~90 CFM (~2,548 LPM)
• Lift (example at 80 PSIG): approx. -168 in H2O (-314 mm Hg)
• Hoses/connections: 1/2" compressed air hose assembly; 10' of 1-1/2" (38 mm) antistatic vacuum hose (Deluxe upgraded to antistatic)
• Includes drum dolly and spill recovery kit (Deluxe)
• Fits standard 55 gallon open-top drums (drum not included for Standard and Deluxe)
• Filter options: Standard Filter or HEPA Filter with pre-filter
• No electric motor; pneumatic vacuum generator with no moving parts
