Drum vac with HEPA filter Model 6399

industrialdrydust

Description
EXAIR compressed-air Heavy Duty HEPA Vac™ converts a standard open-top drum (30, 55 or 110 gal) into an industrial-grade HEPA-quality vacuum. The unit uses compressed air (typical supply 80 PSIG / 5.5 BAR) to create vacuum flow and is engineered for frequent use in dusty environments. The Premium system ships complete with HEPA (0.3 micron) filter, pre-filter, static-resistant vacuum hose, compressed air hose, shutoff valve, gauge, heavy-duty tools, tool holder, drum dolly and a selected drum (30, 55 or 110 gal). 110 gal option available for Premium system only.
Warning: Do not use with low flash point materials or flammable liquids (fuel oil, alcohols, mineral spirits, gasoline, kerosene) or combustible dust.

Applications

• Critical dust removal
• Cleanup around grit- and dust-producing equipment
• Abrasive media handling
• Shop and factory floors
• Drywall refinishing and construction cleanup
• Industrial contaminants collection
• Mold and allergen removal
• Trapping airborne irritants
• Removing exhaust debris

Advantages

• Designed for frequent use in dusty environments
• Hardened construction to resist wear
• No moving parts — minimal maintenance
• No motors to clog or fail
• Operates without electricity
• Static-resistant vacuum hose
• Dust-free operation reduces worker exposure
• Includes industrial-grade accessories
• Quiet operation

Styles

• Heavy Duty HEPA Vac: Base model for heavy dry cleanup and transfer. Includes Heavy Duty Dry Vac vacuum, lever-lock drum lid, automatic safety shutoff valve, pre-filter, HEPA filter (0.3 micron), 10' (3 m) static-resistant polyethylene vacuum hose 1-1/2" (38 mm) I.D., hose hanger, 1/2 NPT quick-connect, 20' (6.1 m) compressed air hose with swivel fitting, pressure gauge and aluminum chip wand (drum not included).
• Deluxe Heavy Duty HEPA Vac System: Adds usability accessories to the base model: drum dolly, heavy-duty aluminum tools (2-piece double-bend wand, 12" floor tool, 11" crevice tool, 24" crevice tool, skimmer tool with detachable brush), tool holder, and a 3-1/2" diameter conductive dust brush (drum not included).
• Premium Heavy Duty HEPA Vac System: Deluxe system plus a 30, 55, or 110 gallon drum included.

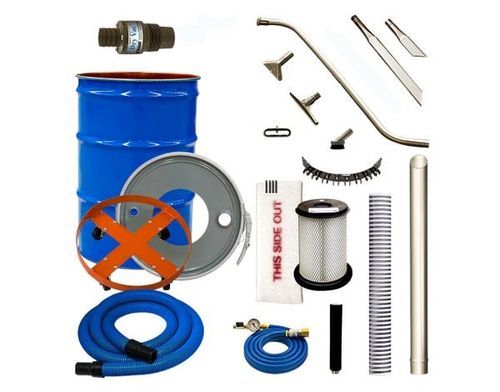

What’s Included?

• Heavy Duty Dry Vac
• Lever-lock drum lid
• Automatic safety shutoff valve
• Pre-filter
• HEPA filter (0.3 micron)
• 10' (3 m) polyethylene static-resistant vacuum hose, 1-1/2" (38 mm) I.D.
• Hose hanger
• 1/2 NPT quick-connect couplings
• 20' (6.1 m) compressed air hose with swivel fitting
• Pressure gauge
• Aluminum chip wand

Performance
Drum sizes: 30, 55, 110 gal
Pressure supply: 80 PSIG / 5.5 BAR (typical operation 80–100 PSIG / 5.5–6.9 BAR)
Air consumption: 68 SCFM / 1,924 SLPM
Inlet: 3/8 NPT
Sound level: ~82 dBA

How It Works
Compressed air enters an annular plenum and is ejected through directed nozzles to create vacuum at the intake. Material is drawn in, accelerated through the unit and deposited into the drum. Airflow passes through the pre-filter, then the 0.3 micron HEPA filter which traps airborne particulates, and exhausts via the drum lid vent. The vacuum and tools are built for wear resistance.

Technical specifications

• Brand: EXAIR
• Model / SKU: P6399
• Commercial name: Premium Heavy Duty HEPA Vac™ System
• Drum capacities: 30, 55, 110 gallons
• Pressure supply: 80 PSIG (5.5 BAR); typical operation 80–100 PSIG (5.5–6.9 BAR)
• Air consumption: 68 SCFM (1,924 SLPM)
• Inlet: 3/8 NPT
• Includes: HEPA filter (0.3 micron), pre-filter, 10' (3 m) static-resistant vacuum hose (1-1/2" I.D.), 20' (6.1 m) compressed air hose with swivel fitting, automatic safety shutoff valve, pressure gauge, aluminum chip wand, hose hanger, lever-lock drum lid, heavy-duty tools, tool holder, drum dolly (Premium system)
• Noise level: ~82 dBA
• Hose: static-resistant polyethylene (1-1/2" / 38 mm I.D.)
