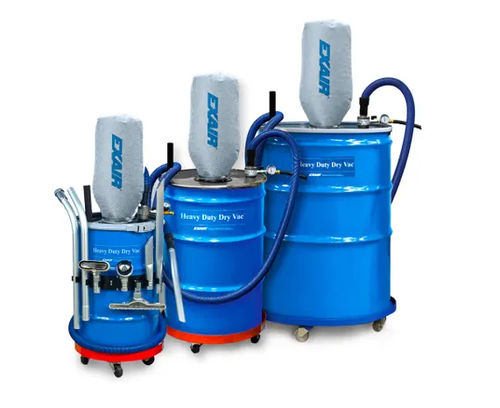

Dry drum vac Model 6297

industrialchipdust

Description
EXAIR's Deluxe Heavy Duty Dry Vac™ System converts a 30, 55 or 110 gallon open-top drum into a compressed-air industrial vacuum. Built with hardened alloy components and without moving parts, the system vacuums large volumes of dry material while minimising wear and maintenance. It requires no electricity and is designed for heavy industrial environments. Warning: Do not use with low flash point materials, flammable liquids, or combustible dust.

Applications

• Work surfaces
• Abrasive tumbling media
• Industrial machinery
• Shop floors
• Sand blasting equipment
• Grinders
• Punch presses
• Absorbent pick-up
• Building maintenance and remodeling
• Saws
• Gravel and bulk dry material

Advantages

• High throughput—moves more material in less time
• Hardened alloy construction resists abrasive wear
• No moving parts — maintenance free operation
• No motors to clog or fail
• Operates without electricity
• Continuous-duty capability with high capacity
• Static-resistant polyethylene vacuum hose
• Low noise level compared to motorized vacuums
• Direct-flow vacuum action for effective pick-up
• Heavy-duty aluminum tools and accessories

Styles

• Standard Heavy Duty Dry Vac: vacuum unit, lever-lock drum lid, auto-safety shutoff valve, filter bag, 10' (3 m) polyethylene static-resistant vacuum hose (1-1/2" I.D.), hose hanger, 1/2 NPT quick-connect couplings, 20' (6.1 m) compressed air hose with swivel fitting, pressure gauge and aluminum chip wand.
• Deluxe Heavy Duty Dry Vac System: adds drum dolly, heavy-duty aluminum tools (2-piece double-bend wand, 12" floor tool, 11" crevice tool, 24" crevice tool, skimmer tool with detachable brush, tool holder), and a 3-1/2" diameter dust brush with conductive bristles.
• Premium Heavy Duty Dry Vac System: includes the Deluxe system plus a 30, 55, or 110 gallon drum (drum included only with Premium version).

What's Included?

• Heavy Duty Dry Vac unit
• Lever-lock drum lid
• Automatic safety shutoff valve
• Filter bag
• 10' (3 m) polyethylene static-resistant vacuum hose (1-1/2" I.D.)
• Hose hanger
• 1/2 NPT quick-connect couplings
• 20' (6.1 m) compressed air hose with swivel fittings
• Pressure gauge
• Aluminum chip wand
• 2-piece double-bend aluminum wand
• 12" (305 mm) aluminum floor tool
• 11" (279 mm) aluminum crevice tool
• 24" (610 mm) aluminum crevice tool
• Aluminum skimmer tool with detachable brush
• 3-1/2" (89 mm) diameter dust brush with conductive bristles
• Tool holder

Performance (Heavy Duty Dry Vac System)
Drum Size | Pressure Supply | Air Consumption | Inlet | Sound Level
30, 55 & 110 gallon | 80 PSIG (5.5 BAR) | 68 SCFM (1,924 SLPM) | 3/8 NPT | 82 dBA

How It Works
Compressed air (typically 80–100 PSIG / 5.5–6.9 BAR) enters an annular plenum and is ejected through directed nozzles. These air jets create a vacuum at the intake that draws material into and through the unit, directing solids to the bottom of the drum. Airborne dust is captured by the filter bag. The simple, rugged design provides reliable operation in demanding industrial conditions.

Technical specifications

• Brand: EXAIR
• Product: Deluxe Heavy Duty Dry Vac™ System
• Model designation / SKU: P6297
• Compatible drum capacities: 30, 55, 110 gallons (open-top drums)
• Recommended compressed air supply: 80 PSIG (5.5 BAR)
• Air consumption: 68 SCFM (1,924 SLPM)
• Air inlet: 3/8 NPT
• Sound level: 82 dBA
• Construction: hardened alloy for wear resistance
• Operation: no electricity, no moving parts (maintenance free)
• Includes heavy-duty aluminum tools and accessories as listed above
• Warning: Not for use with low flash point materials, flammable liquids, or combustible dust
