Chip drum vac Model 6393

industrialdrycompressed air

Overview

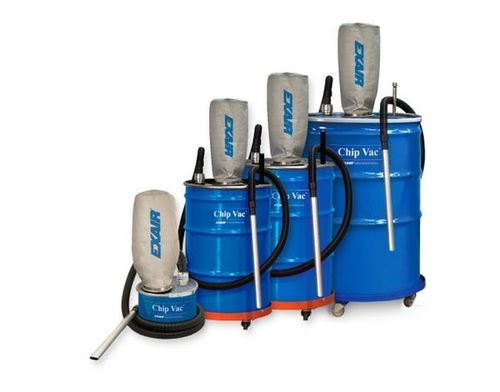

The EXAIR Premium Chip Vac™ System P6393 is a compressed-air-operated industrial vacuum engineered for efficient pickup of metal, wood and plastic chips. The system uses a direct-flow nozzle assembly to convey chips into a standard drum and includes a filter bag for dusty materials. Premium systems are supplied with a 30, 55 or 110 gallon drum and heavy-duty aluminum tools.

Warning
Do not use with low flash point materials, flammable liquids (fuel oil, alcohol, mineral spirits, gasoline, kerosene) or combustible dust. Not suitable for explosive environments.

Applications

• CNC machines
• Lathes
• Saws
• Milling machines
• Drills
• Grinders
• Routers
• Molding machines
• Absorbent pick-up

Advantages

• No moving parts
• Low acquisition and maintenance cost
• No motors to clog or wear out
• No electricity required
• Chips deposit directly into drum
• Powerful direct-flow action
• Includes complete accessory set
• Approximately 50% quieter than comparable electric vacuums

Chip Vac Styles
Five styles are available. The Premium Chip Vac System upgrades the Deluxe by adding a 30, 55 or 110 gallon drum, replacing standard tools with heavy-duty aluminum tools, and providing a 10' (3 m) static-resistant vacuum hose. A 20' (6.1 m) compressed air hose with quick-connect fittings is included.

What's Included?

• Chip Vac vacuum assembly
• Lever-lock drum lid
• Manual shutoff valve
• Filter bag
• 10' (3 m) static-resistant vacuum hose, 1-1/2" (38 mm) I.D.
• 20' (6.1 m) compressed air hose with quick-connect fittings
• Heavy-duty aluminum chip wand
• Two aluminum extension wands
• Aluminum crevice tool
• Round dust brush
• Aluminum skimmer
• Aluminum floor tool
• Tool holder
• 30, 55, or 110 gallon drum (Premium systems)
• Drum dolly

Performance — Chip Vac System Performance
Drum Size | Pressure Supply (PSIG / BAR) | Air Consumption (SCFM / SLPM) | Inlet | Sound Level (dBA)
30, 55, & 110 | 80 PSIG / 5.5 BAR | 40 SCFM / 1,132 SLPM | 3/8 NPT | 77 dBA
5 Gallon | 80 PSIG / 5.5 BAR | 33 SCFM / 934 SLPM | 3/8 NPT | 77 dBA

How It Works
Compressed air (typically 80–100 PSIG / 5.5–6.9 BAR) enters an annular plenum and is injected through directed nozzles into the throat. The jets create a vacuum at the intake, drawing chips into and through the unit into the drum. Exhaust air leaves via the drum lid port; airborne particles are captured by the filter bag.

Technical specifications

• Brand: EXAIR
• Model / SKU: P6393
• Commercial name: Premium Chip Vac™ System
• Available drum capacities: 5, 30, 55, or 110 gallons (Premium includes 30, 55 or 110)
• Recommended supply pressure: 80 PSIG (5.5 BAR)
• Air consumption: 40 SCFM (1,132 SLPM) for 30/55/110; 33 SCFM (934 SLPM) for 5 gal
• Air inlet: 3/8" NPT
• Sound level: approx. 77 dBA
• Vacuum hose: 10' (3 m) static-resistant, 1-1/2" (38 mm) I.D.
• Compressed air hose: 20' (6.1 m) with quick-connect fittings
• Filter: filter bag included for dusty materials
• Construction/tools: heavy-duty aluminum tools (Premium)
• Operating principle: compressed-air-operated vacuum, no moving parts, no electricity required
• Intended use: vacuuming metal, wood, or plastic chips; general chip cleanup
• Restrictions: not for flammable liquids, low flash point materials, or combustible dust
