Industrial vacuum cleaner 6192

drywetliquids

Description
EXAIR's Model 6192 Vac-u-Gun Collection System is a portable, lightweight, easy-to-use small-job vacuum tool that also functions as a transfer tool or blow gun. It provides a low-cost solution for a variety of industrial housekeeping tasks. The Vac-u-Gun features durable die-cast construction with no moving parts to wear out.

Applications

• Vacuum shavings
• Vacuum absorbent
• Vacuum sawdust
• Vacuum spills
• Transfer small parts
• Transfer pellets
• Transfer trim
• Blow chips
• Blow water
• Blow coolant
• Blow scrap

Advantages

• Low cost
• No moving parts – maintenance free
• Durable – die cast construction
• Switch from vacuum to blow mode in seconds
• Safe – no electricity
• Meets OSHA pressure requirements
• Vacuum or blowoff
• Lightweight and portable
• Versatile

Styles

• Model 6192 Collection System: designed to make your Vac-u-Gun a lightweight, easy-to-use vacuum tool. Includes the Vac-u-Gun, reusable bag, brush, crevice tool, skimmer tool and two extension wands.
• Model 6292 Transfer System: designed to turn your Vac-u-Gun into a handy, lightweight transfer tool. Includes the Vac-u-Gun, 10' (3 m) of vacuum hose at 1-1/2" (38 mm) I.D., brush, crevice tool, skimmer tool and two extension wands.
• Model 6392 All Purpose System: makes it easy to use your Vac-u-Gun as a lightweight vacuum or handy transfer tool. Includes the Vac-u-Gun, a reusable bag, 10' (3 m) of vacuum hose at 1-1/2" (38 mm) I.D., brush, crevice tool, skimmer tool and two extension wands.

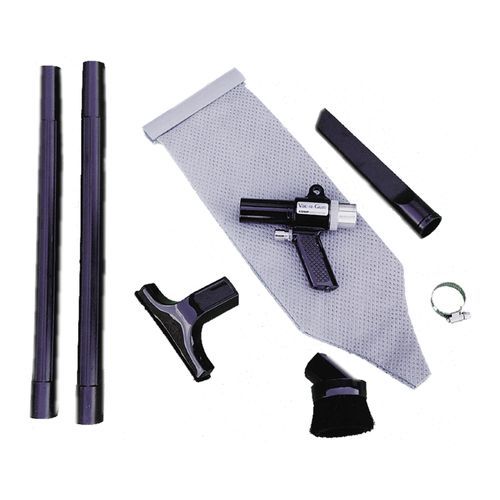

What's Included?

• Vac-u-Gun
• Reusable bag
• Brush
• Crevice tool
• Skimmer tool
• Two extension wands

Performance / Table
Vac-u-Gun Performance
Pressure Supply (PSIG / BAR) | Air Consumption (SCFM / SLPM) | Vacuum (in H2O / kPa) | Force (Ozs / Grams) | Inlet (NPT) | Sound Level (dBA)
80 / 5.5 | 13 SCFM / 368 SLPM | -29.5 in H2O / -7 kPa | 9 Ozs / 255 Grams | 1/4 NPT | 84 dBA
*tested in "vacuum" mode with bag attached

Characteristics / Technical specifications

• Model: 6192
• Pressure supply: 80 PSIG (5.5 BAR)
• Air consumption: 13 SCFM (368 SLPM)
• Vacuum: -29.5 in H2O (-7 kPa)
• Force: 9 oz (255 g)
• Inlet: 1/4 NPT
• Sound level: 84 dBA
• Construction: Die cast; no moving parts
• Includes: Vac-u-Gun, reusable bag, brush, crevice tool, skimmer tool, two extension wands
