Suction air blow gun Model 6392

vacuumcleaningsafety

Description
The EXAIR Model 6392 Vac-u-Gun All Purpose System provides the components required to use the Vac-u-Gun as a lightweight, portable vacuum, transfer tool or blow gun for small tasks. Die-cast construction with no moving parts reduces maintenance and extends service life while offering a low-cost solution for industrial housekeeping and material handling.

Applications

• Vacuum shavings
• Vacuum absorbent
• Vacuum sawdust
• Vacuum spills
• Transfer small parts
• Transfer pellets
• Transfer trim
• Blow chips
• Blow water
• Blow coolant
• Blow scrap

Advantages

• Low cost solution
• No moving parts — maintenance free
• Durable die-cast construction
• Quick switch between vacuum and blow modes
• Safe operation — no electrical supply required
• Meets OSHA pressure requirements
• Functions as vacuum or blowoff
• Lightweight and portable for shop use
• Versatile for multiple tasks

Styles
Model 6192 Collection System: configures the Vac-u-Gun as a lightweight vacuum tool. Includes Vac-u-Gun, reusable bag, brush, crevice tool, skimmer tool and two extension wands.

Model 6292 Transfer System: configures the Vac-u-Gun as a lightweight transfer tool. Includes Vac-u-Gun, 10' (3 m) of vacuum hose (1-1/2" / 38 mm I.D.), brush, crevice tool, skimmer tool and two extension wands.

Model 6392 All Purpose System: combines vacuum and transfer accessories to make the Vac-u-Gun suitable for both tasks. Includes Vac-u-Gun, reusable bag, 10' (3 m) vacuum hose (1-1/2" / 38 mm I.D.), brush, crevice tool, skimmer tool and two extension wands.

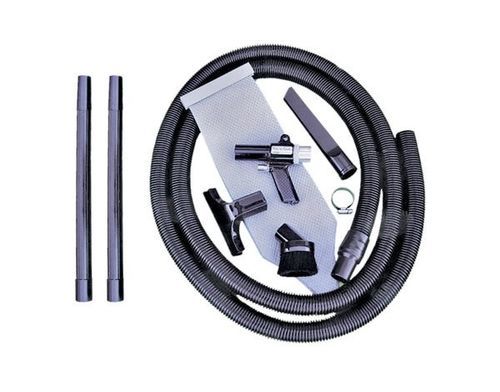

What's Included?

• Vac-u-Gun
• Reusable bag
• 10' (3 m) of vacuum hose at 1-1/2" (38 mm) I.D.
• Brush
• Crevice tool
• Skimmer tool
• Two extension wands

Performance
Vac-u-Gun Performance
Pressure Supply: PSIG / BAR | Air Consumption: SCFM / SLPM | Vacuum: "H2O / kPa | Force: Ozs / Grams | Inlet: NPT | Sound Level: dBA
80 PSIG / 5.5 BAR | 13 SCFM / 368 SLPM | -29.5 "H2O / -7 kPa | 9 Ozs / 255 Grams | 1/4 NPT | 84 dBA*
*tested in "vacuum" mode with bag attached

How It Works
Compressed air (typically 80-100 PSIG / 5.5-6.9 BAR) enters an annular plenum and is injected through directed nozzles into the gun throat. These air jets generate a vacuum at the intake, drawing material into and accelerating it through the unit. Collected chips and debris are exhausted into the attached filter bag or hose for disposal or transfer.

Technical specifications

• Brand: EXAIR
• Model / SKU: 6392
• Commercial name: Model 6392 (Vac-u-Gun All Purpose System)
• Construction: Die-cast; no moving parts
• Recommended Pressure Supply: 80-100 PSIG (5.5 - 6.9 BAR)
• Tested Pressure (data): 80 PSIG (5.5 BAR)
• Air Consumption: 13 SCFM (368 SLPM)
• Vacuum: -29.5 "H2O (-7 kPa)
• Force: 9 Ozs (255 grams)
• Inlet: 1/4 NPT
• Sound Level: 84 dBA (tested in vacuum mode with bag attached)
• Included hose: 10' (3 m) of vacuum hose at 1-1/2" (38 mm) I.D. (in All Purpose System)
• Includes: reusable bag, brush, crevice tool, skimmer tool, two extension wands
• Price (as listed): $189.50 USD
