Chip vacuum cleaner Model 6198

industrialwetliquids

Overview

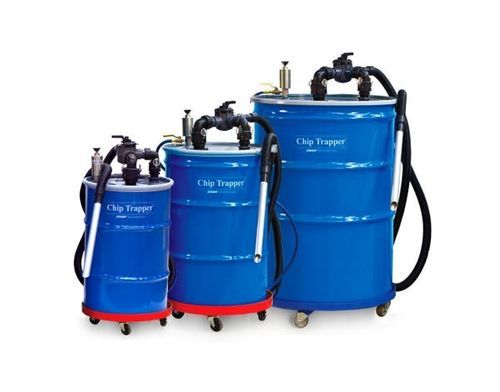

EXAIR's patented* Chip Trapper™ provides a fast, simple method to remove chips, swarf and shavings from used coolants and other liquids. The unit vacuums contaminated liquid into a drum and traps solids in a reusable filter bag while clean liquid is returned to service. Ideal for machine sumps, parts washers, tanks and storage containers of contaminated fluids. *Patent #8153001

Warning
Do not use with low flash point or flammable liquids such as fuel oil, alcohol, mineral spirits, gasoline or kerosene.

Applications

• CNC machines
• Lathes
• Saws
• Mills
• Drills
• Parts washers
• Pits
• Tanks
• Storage containers
• Grinders

Advantages

• Removes solids from liquids
• Enables coolant recycling
• No moving parts in the filtration path
• No electric motors to clog or wear
• Self-priming stainless steel pump
• Safe operation without electricity
• Built-in pressure/vacuum relief
• Drum included
• Spill-free auto safety shutoff
• Quiet operation

What's Included?

• Two-way pump assembly (1/4 NPT)
• Directional flow valve
• 30, 55 or 110 gallon drum
• Lever-lock drum lid
• Safety shutoff valve
• 10' (3 m) flexible vacuum hose, 1-1/2" (38 mm) I.D.
• 20' (6.1 m) compressed air hose
• Chip wand
• Two reusable filter bags
• Drum dolly

How the EXAIR Chip Trapper Works
The vacuum hose attaches to the barbed connection on the Chip Trapper. Set the directional flow valve on the drum and the pump knob to "fill." Open the air supply to provide 80-100 PSIG (5.5–6.9 BAR) to the pump; compressed air drives the pump, drawing contaminated liquid through the vacuum hose into the reusable filter bag. When the drum is full, the air supply automatically shuts off. To return filtered liquid, set the directional valve and pump knob to "empty" and reopen the air supply; the air pressure pushes the clean liquid back through the hose while solids remain in the bag.

Performance
Pressure supply: 80 PSIG (5.5 BAR)
Air consumption: 19 SCFM (538 SLPM)
Water flow rate: 30 GPM (114 LPM)
Sound level: 86 dBA

Technical specifications

• Patent: #8153001
• Model / SKU on page: P6198
• Available drum capacities: 30, 55 and 110 gallons
• Pump: Two-way, self-priming stainless steel pump (1/4 NPT)
• Directional flow valve on drum
• Reusable filter bags (two included)
• Vacuum hose: 10' (3 m) flexible, 1-1/2" (38 mm) I.D.
• Compressed air hose: 20' (6.1 m)
• Includes chip wand and drum dolly
• Safety features: safety shutoff valve and spill-free auto safety shutoff
• Recommended air supply: 80-100 PSIG (5.5–6.9 BAR)
• Measured air consumption: 19 SCFM (538 SLPM)
• Measured water flow rate: 30 GPM (114 LPM)
• Sound level: 86 dBA
• No electrical power required for operation
