Vacuum air blow gun Model 6292

cleaningwith extensionkit

Description
Portable, lightweight Vac‑u‑Gun Transfer System Model 6292 converts compressed air into a vacuum or blow tool for material transfer and cleaning in industrial environments. Die‑cast construction with no moving parts provides a low‑maintenance solution for handling chips, dust, spills and small parts.

Applications

• Vacuuming shavings and sawdust
• Collecting absorbents and spills
• Transferring small parts, pellets and trim
• Blowing off chips, coolant and scrap

Advantages

• Cost‑effective pneumatic transfer and vacuum function
• No moving parts — minimal maintenance
• Die‑cast construction
• Quick switch between vacuum and blow modes
• No electrical supply required
• Meets OSHA pressure requirements
• Lightweight and portable for point‑of‑use tasks
• Versatile for multiple housekeeping and transfer tasks

Styles

• Model 6192 Collection System: Vac‑u‑Gun with reusable bag, brush, crevice tool, skimmer tool and two extension wands — optimized for vacuuming.
• Model 6292 Transfer System: Vac‑u‑Gun with 10' (3 m) flexible vacuum hose (1‑1/2" / 38 mm I.D.), brush, crevice tool, skimmer tool and two extension wands — optimized for transfer tasks.
• Model 6392 All Purpose System: Vac‑u‑Gun with reusable bag, 10' (3 m) hose (1‑1/2" / 38 mm I.D.), brush, crevice tool, skimmer tool and two extension wands — vacuum and transfer combined.

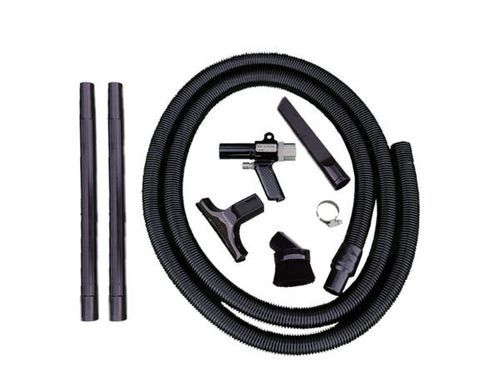

What's Included?

• Vac‑u‑Gun
• 10' (3 m) flexible vacuum hose, 1‑1/2" (38 mm) I.D.
• Brush
• Crevice tool
• Skimmer tool
• Two extension wands

Performance
Typical Vac‑u‑Gun performance at supply 80 PSIG (5.5 BAR):

• Air consumption: 13 SCFM (368 SLPM)
• Vacuum: -29.5 inH2O (-7 kPa)
• Force: 9 oz (255 g)
• Inlet: 1/4 NPT
• Sound level: 84 dBA (tested in vacuum mode with bag attached)

How It Works
Compressed air flows into an annular plenum and is injected through directed nozzles into the throat of the gun. The resulting jets create a vacuum at the intake to draw and accelerate material through the unit. Collected material is exhausted into the attached filter bag or hose for disposal or transfer.

Specifications

• Brand: EXAIR
• Model (SKU): 6292
• Commercial name: Vac‑u‑Gun Transfer System
• Construction: Die‑cast, no moving parts
• Functions: Switchable vacuum and blow modes
• Included hose: 10' (3 m), 1‑1/2" (38 mm) I.D.
• Typical supply pressure: 80 PSIG (5.5 BAR)
• Air consumption: 13 SCFM (368 SLPM)
• Vacuum: -29.5 inH2O (-7 kPa)
• Force: 9 oz (255 g)
• Inlet connection: 1/4 NPT
• Sound level: 84 dBA (tested in vacuum mode with bag attached)
• Meets OSHA pressure requirements
• Lightweight, portable, maintenance‑free
