Heavy-duty drum vac Model 6399

industrialwetliquids

Overview
The Premium Reversible Drum Vac System upgrades the EXAIR Reversible Drum Vac for fast, maintenance-free liquid transfer. The compressed-air operated pump fills a 55 gallon drum in under two minutes and, by turning a simple knob, reverses to empty the drum. The unit has no electrical components and no moving parts, reducing maintenance needs.

Warning
Do not use with any material that has a low flash point or with flammable liquids such as fuel oil, alcohol, mineral spirits, gasoline or kerosene.

Applications

• Coolant sumps
• Food processing
• Lathes
• Floor cleanup
• EDM machines
• Pits
• Screw machines
• Machining centers
• Tanks

Advantages

• No moving parts
• Maintenance free
• Stainless steel construction
• Safe - no electricity
• Built-in pressure/vacuum relief
• Compact and portable
• Installs quickly
• Spill free - auto safety shutoff
• Fits standard closed head drums

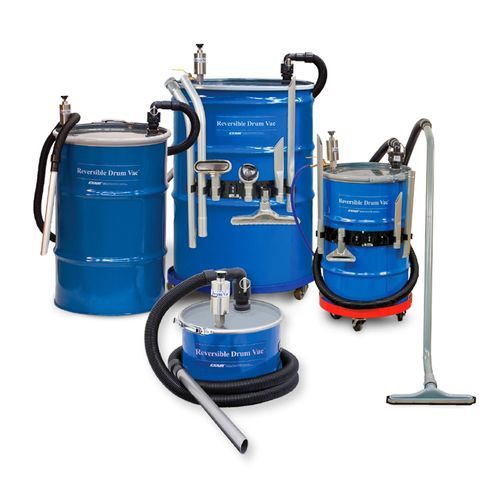

Styles

• Reversible Drum Vac (standard) – compressed air powered stainless steel two-way pump assembly, shutoff valve, 10' (3m) of 1-1/2" (38mm) I.D. vacuum hose with 90° quick release elbow and aluminum wand sized for closed head drums (30, 55 or 110 gallons).
• Deluxe Reversible Drum Vac System – includes everything with the Reversible Drum Vac plus drum dolly, ABS spill recovery kit, two extension wands, crevice tools, skimmer tool and tool holder, sized for closed head drums (30, 55 or 110 gallons).
• Premium Reversible Drum Vac System – adds a 30, 55 or 110 gallon drum, matching lid and locking ring, and 20' (6.1m) of air hose to the Deluxe system.
• 5 Gallon Mini Reversible Drum Vac – same features as Reversible Drum Vac but sized for a 5 gallon drum; Mini systems include 5 gallon drum with lid and locking ring, 10' (3m) of 1-1/2" (38mm) I.D. vacuum hose with 90° quick release elbow, aluminum wand, ABS spill recovery kit, two extension wands, crevice tool and skimmer tool.
• Variants available as Reversible Drum Vac Only (pump only) and other accessory combinations.

What's Included?

• Two-way pump assembly (1/4 NPT)
• Automatic safety shutoff valve
• 10' (3m) flexible vacuum hose at 1-1/2" (38mm) I.D.
• 90° quick release elbow for 1-1/2" (38mm) vacuum hose
• ABS spill recovery kit
• One aluminum wand
• Two extension wands
• Crevice tool
• Skimmer tool
• Tool holder
• Drum dolly
• 5, 30, 55, or 110 gallon closed head drum (depending on selection)
• 20' (6.1m) of compressed air hose

Performance (representative)
Pressure Supply (PSIG | BAR) | Air Consumption (SCFM | SLPM) | Lift ("H2O | mm Hg) | Water Flow Rate (GPM | LPM) | Sound Level (dBA)
80 | 5.5 | 19 | 538 | 96" H2O | 179 mm Hg | 30 GPM | 114 LPM | 86 dBA

How It Works (summary)
The flex hose attaches to the barbed connection on the Reversible Drum Vac. Set the pump knob to "fill" and open the air supply (recommended 80-100 PSIG / 5.5-6.9 BAR) to pull liquid through the hose into the drum. When full, turn off the air supply; the safety shut-off prevents overfilling. To empty, set the knob to "empty" and open the air supply to pump liquid back out through the hose. The system requires compressed air and has no electrical components.

Specifications / Technical data

• Brand: EXAIR
• Commercial name: Premium Reversible Drum Vac System
• Model / SKU shown on page: P6396 (configurable options available)
• Available drum capacities: 5, 30, 55, or 110 gallons (Premium available in 30, 55, 110)
• Included compressed air hose: 20' (6.1 m) (Premium system)
• Vacuum hose included: 10' (3 m) flexible vacuum hose, 1-1/2" (38 mm) I.D.
• Air supply: 80-100 PSIG (5.5-6.9 BAR) recommended
• Air consumption (representative): 19 SCFM (538 SLPM)
• Lift (representative): 96" H2O (179 mm Hg)
• Water flow rate (representative): 30 GPM (114 LPM)
• Sound level (representative): 86 dBA
• Construction: stainless steel pump; no moving parts, no electricity required
• Safety: automatic safety shutoff valve to prevent overfilling; not for use with flammable/low flash point liquids
• Included accessories (Deluxe/Premium variations): drum dolly, ABS spill recovery kit, extension wands, crevice and skimmer tools, tool holder
