Industrial drum vac 6199

drydustfine dust

Overview

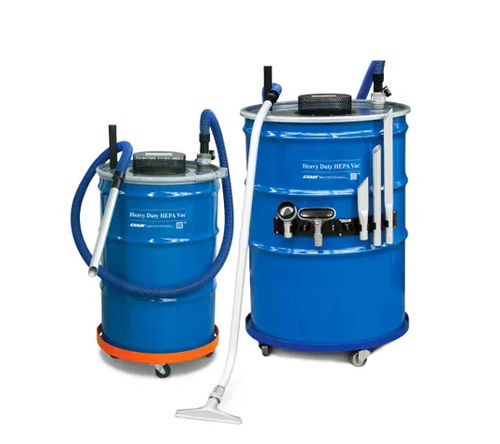

EXAIR’s compressed air operated Heavy Duty HEPA Vac™ attaches to an ordinary 30, 55 or 110 gallon open top drum to turn it into a powerful, HEPA (High Efficiency Particulate Air) quality, industrial vacuum cleaner. Powerfully designed to move more material with less wear. Engineered to filter contaminants to HEPA requirements in dusty environments requiring frequent cleaning. 110 Gallon available as premium system only. (drum not included for standard and deluxe versions.)

Warning
Do not use with any material that has a low flash point or with flammable liquids such as fuel oil, alcohol, mineral spirits, gasoline or kerosene. Do not use with combustible dust.

Applications

• Critical dust removal
• Clean up around grit and dust producing equipment
• Abrasive media
• Shop floors
• Drywall refinishing
• Industrial contaminants
• Mold and allergen removal
• Trapping dust and airborne irritants
• Eliminate exhaust debris

Advantages

• For frequent use in dusty environments
• Hardened construction resists wear
• No moving parts - maintenance free
• No motors to clog or wear out
• No electricity required
• Static resistant hose
• Dust free operation
• Reduces exposure to airborne particulates
• Includes accessories
• Quiet operation

Styles

• Heavy Duty HEPA Vac (standard): Good for dustless heavy dry cleanup and transfer. Includes Heavy Duty Dry Vac vacuum, lever lock drum lid, automatic safety shutoff valve, pre-filter, HEPA filter, 10' (3m) polyethylene static resistant vacuum hose (1-1/2" / 38mm I.D.), hose hanger, 1/2 NPT quick connect coupling, 20' (6.1m) compressed air hose with swivel fitting, pressure gauge, and aluminum chip wand. (Drum not included.)
• Deluxe Heavy Duty HEPA Vac System: Improves on the standard by adding a drum dolly, heavy duty aluminum tools (2-piece double bend wand, 12" floor tool, 11" crevice tool, 24" crevice tool, skimmer tool with detachable brush, tool holder), and a 3-1/2" diameter dust brush with conductive bristles. (Drum not included.)
• Premium Heavy Duty HEPA Vac System: Upgrades the system further by including a 30, 55, or 110 gallon drum with the Deluxe package.

What’s Included (standard system)

• Heavy Duty Dry Vac
• Lever lock drum lid
• Automatic safety shutoff valve
• Pre-filter
• HEPA filter
• 10' (3m) polyethylene static resistant vacuum hose, 1-1/2" (38mm) I.D.
• Hose hanger
• 1/2 NPT quick connect coupling(s)
• 20' (6.1m) compressed air hose with swivel fitting
• Pressure gauge
• Aluminum chip wand

Performance
Heavy Duty HEPA Vac System Performance
Drum Size | Pressure Supply (PSIG / BAR) | Air Consumption (SCFM / SLPM) | Inlet (NPT) | Sound Level (dBA)
30, 55 & 110 | 80 PSIG / 5.5 BAR | 68 SCFM / 1,924 SLPM | 3/8 NPT | 82 dBA

How It Works
Compressed air (typically 80-100 PSIG / 5.5-6.9 BAR) flows through an inlet into an annular plenum chamber and is injected into the throat through directed nozzles. These jets create a vacuum at the intake, drawing material in, accelerating it through the unit and directing it to the bottom of the drum. Airflow passes first through the pre-filter and then through the 0.3 micron HEPA filter, trapping airborne particles, then exhausts through the vent in the drum lid. The vacuum unit and tools are built to resist wear.

Caractéristiques / spécifications techniques

• Manufacturer: EXAIR
• Product family / Denomination: Heavy Duty HEPA Vac™ System
• Model / SKU on page: P6199
• Available drum capacities: 30 gallon, 55 gallon, 110 gallon (premium drum included only with Premium system)
• Compressed air supply (recommended): 80 PSIG (5.5 BAR)
• Air consumption: 68 SCFM (1,924 SLPM)
• Inlet connection: 3/8 NPT
• Vacuum hose: 10' (3m) polyethylene static resistant, 1-1/2" (38mm) I.D.
• Sound level: 82 dBA
• Filtration: Pre-filter plus 0.3 micron HEPA filter
• Included accessories (standard): lever lock drum lid, auto safety shutoff valve, hose hanger, 1/2 NPT quick connect, 20' compressed air hose with swivel fitting, pressure gauge, aluminum chip wand
• Additional items in Deluxe: drum dolly, heavy duty aluminum tools, tool holder, conductive bristle dust brush
• Premium version: includes drum (30, 55 or 110 gallon) with Deluxe components
• Warnings: Not for use with low flash point or flammable liquids; not for combustible dust
