Heavy-duty drum vac Model 6299

industrialwetliquids

Overview

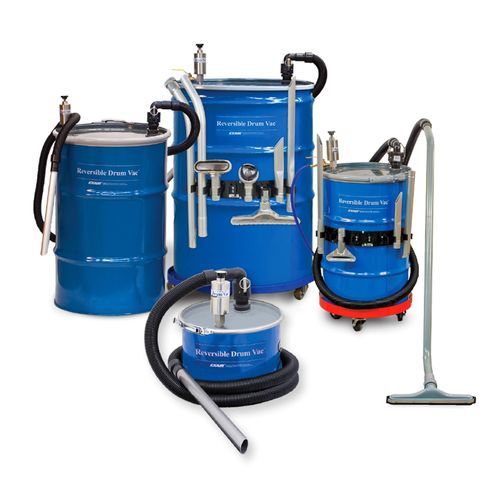

EXAIR's compressed air operated Reversible Drum Vac™ System attaches quickly to any closed head 30, 55 or 110 gallon drum. The compressed air powered vacuum fills a 55 gallon drum in less than two minutes and, with the simple turn of a knob, the same stainless steel pump quickly empties the drum. The Reversible Drum Vac has no moving parts and does not use electricity, providing maintenance free operation. An automatic safety shutoff valve prevents spills or overfilling. The Deluxe system adds accessories to make everyday tasks easier.

Applications

• Coolant sumps
• Food processing
• Lathes
• Floor cleanup
• EDM machines
• Pits
• Screw machines
• Machining centers
• Tanks

Advantages

• No moving parts
• Maintenance free
• Stainless steel construction
• Safe - no electricity required
• Built-in pressure/vacuum relief
• Compact and portable
• Installs quickly
• Spill free - automatic safety shutoff
• Fits standard closed head drums

Deluxe Package Description
The Deluxe Reversible Drum Vac System includes the standard Reversible Drum Vac components plus additional accessories to simplify routine use. Standard features include a compressed-air two-way pump assembly and automatic safety shutoff valve. Deluxe additions include a drum dolly, ABS spill recovery kit, two extension wands, crevice tool, skimmer tool and tool holder.

Reversible Drum Vac Performance
Reversible Drum Vac Performance table (units and typical value):
Pressure Supply: 80 PSIG, 5.5 BAR
Air Consumption: 19 SCFM, 538 SLPM
Lift: 96" H2O, 179 mm Hg
Water Flow Rate: 30 GPM, 114 LPM
Sound Level: 86 dBA

What's Included (Deluxe)

• Two-way pump assembly (1/4 NPT)
• Automatic safety shutoff valve
• 10' (3 m) flexible vacuum hose, 1-1/2" (38 mm) I.D.
• 90° quick release elbow for 1-1/2" (38 mm) vacuum hose
• ABS spill recovery kit
• One aluminum wand
• Two extension wands
• Crevice tool
• Skimmer tool
• Tool holder
• Drum dolly
• Note: 5 gallon Mini Deluxe system includes a 5 gallon closed head drum

Warning
Do not use with any material that has a low flash point or with flammable liquids such as fuel oil, alcohol, mineral spirits, gasoline or kerosene.

Caractéristiques / Spécifications techniques

• Marque: EXAIR
• Modèle (SKU): P6296
• Dénomination commerciale: Deluxe Reversible Drum Vac™ System
• Compatible drum capacities: 30, 55, 110 gallons (and 5 gallon variants for mini models)
• Pump: Compressed-air operated two-way stainless steel pump (1/4 NPT)
• Hose: 10' (3 m) flexible vacuum hose, 1-1/2" (38 mm) I.D., with 90° quick release elbow
• Construction: Stainless steel pump; aluminum wands; ABS spill recovery kit components
• Safety: Automatic safety shutoff valve to prevent overfilling
• Operation: No electricity required; no moving parts
• Typical operating pressure: 80 PSIG (5.5 BAR)
• Air consumption: 19 SCFM (≈538 SLPM)
• Maximum lift: 96" H2O (≈179 mm Hg)
• Typical water flow rate: 30 GPM (≈114 LPM)
• Sound level: 86 dBA (typical at stated conditions)
