Reversible drum vac Model 6295

industrialwetliquids

Overview
EXAIR's Deluxe High Lift Reversible Drum Vac System is a pneumatic liquid transfer and recovery solution that attaches to standard closed-head 30, 55 or 110 gallon drums. The stainless steel two-way pump lifts liquids up to 15 feet (180" H2O) and can fill a 55 gallon drum in under 85 seconds. With a simple valve action the pump reverses to empty the drum, enabling fast transfer from sumps, tanks or below-grade areas. (Drum not included; see Premium version for drum-supplied option.)

Warning
Do not use with materials that have a low flash point or with flammable liquids such as fuel oil, alcohol, mineral spirits, gasoline or kerosene.

Applications

• Below-grade coolant sumps
• Deep wells
• Underground storage tanks
• Pits
• Drains
• Deep hole broaching
• Bulk storage tanks
• Cisterns

Advantages

• No moving parts in the pump mechanism
• Maintenance-free pneumatic operation (no electrical supply required)
• Stainless steel construction for corrosion resistance
• Built-in pressure/vacuum relief and automatic safety shutoff to prevent spills
• Compact, portable and quick to install on standard closed-head drums

High Lift Reversible Drum Vac Styles

• Standard: compressed-air powered stainless steel two-way pump assembly, 1/4 NPT shutoff valve, 20' (6.1 m) of 1-1/2" (38 mm) I.D. vacuum hose with 90° quick-release elbow and one aluminum wand (sized for 30, 55 or 110 gallon closed-head drums).
• Deluxe (this product): includes Standard contents plus drum dolly, ABS spill recovery kit, two extension wands, crevice tools, skimmer tool and tool holder (sized for 30, 55 or 110 gallon closed-head drums).
• Premium: includes Deluxe contents and adds a 30, 55 or 110 gallon drum, lid with locking ring and 20' (6.1 m) air hose for easier startup.
• Pump only: high-lift stainless steel two-way pump without attachments or accessories.

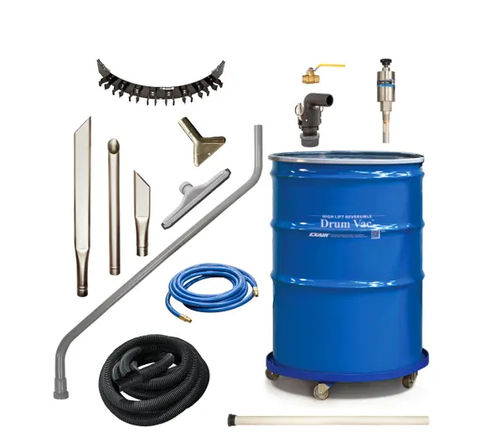

What's Included?

• Two-way pump assembly (1/4 NPT)
• Automatic safety shutoff valve
• 20' (6.1 m) flexible 1-1/2" (38 mm) I.D. vacuum hose
• 90° quick-release elbow for 1-1/2" (38 mm) vacuum hose
• ABS spill recovery kit
• One aluminum wand
• Two extension wands
• Crevice tool
• Skimmer tool
• Tool holder
• Drum dolly

Performance
Pressure supply: 80 PSIG (5.5 BAR)
Air consumption: 43 SCFM (1,218 SLPM)
Lift: 180" H2O (336 mm Hg) — up to 15 feet
Water flow rate: 30 GPM (114 LPM)
Sound level: 83 dBA

Caractéristiques / Spécifications techniques

• Commercial name / Model: Deluxe High Lift Reversible Drum Vac System
• Manufacturer / Brand: EXAIR
• SKU / Model code: P6295
• Compatible drum capacities: 30, 55 or 110 gallon closed-head drums
• Maximum lift: up to 15 feet (180" H2O)
• Typical fill time: fills a 55 gallon drum in less than 85 seconds
• Pump material: stainless steel two-way pump (compressed-air powered)
• Hose: 20' (6.1 m) 1-1/2" (38 mm) I.D. vacuum hose
• Flow / consumption at 80 PSIG: 43 SCFM (1,218 SLPM)
• Lift specification: 180" H2O (336 mm Hg)
• Water flow capacity: 30 GPM (114 LPM)
• Sound level: 83 dBA
• Safety: automatic safety shutoff valve (spill-free)
• Power: pneumatic (no electrical power required)
• Mounting: fits standard closed-head drums; installs quickly; compact and portable
