Dry aspiration air vacuum blower Model 6194

for wet aspiration

Description
EXAIR's Model 6194 Deep Hole Vac-u-Gun with Bag includes a reusable bag. It provides a low-cost, pneumatic solution to quickly remove chips and contaminants from grooves, containers and drilled holes where blow guns could create hazardous flying debris. Position the Vac-u-Gun over the hole and press the trigger: a small blow tube dislodges and lifts the chips while the larger suction tube vacuums them into the bag or attached hose. The clear suction tube and bag contain contaminants for operator protection.

Applications

• Holes in fixtures
• Drilled plastics
• T-slots – groove cleaning
• Coolant evacuation from parts
• Woodworking
• Container cleaning
• Tapped holes
• Cupped surfaces
• Cavity evacuation
• Bottle cleaning
• Punch press tables

Advantages

• Low cost
• No moving parts – maintenance free
• Durable die cast construction
• Eliminates shock hazard - no electricity
• Meets OSHA pressure and chip guard requirements
• Safe operation - no flying chips
• Lightweight and portable
• Quiet
• Low air consumption

Styles

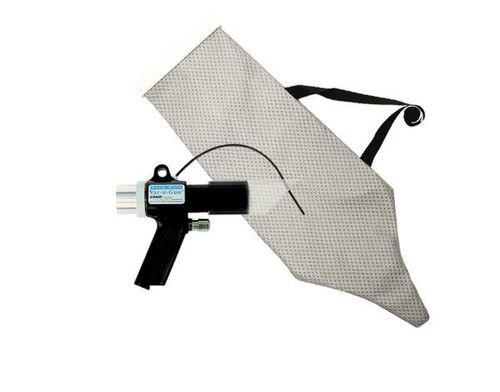

• Model 6194 Deep Hole Vac-u-Gun with Bag: includes the Deep Hole Vac-u-Gun and reusable bag.
• Model 6394 Deep Hole Vac-u-Gun All Purpose System: includes the Deep Hole Vac-u-Gun, reusable bag, and 10' (3 m) of vacuum hose at 1-1/2" (38 mm) I.D.
• Model 6094 Deep Hole Vac-u-Gun Only: the Deep Hole Vac-u-Gun without fittings or accessories.

How it works
Compressed air (typically 80–100 PSIG / 5.5–6.9 BAR) flows into an annular plenum chamber when the trigger is depressed. A small amount of air is injected into the blow tube to lift chips while larger airflow is directed into the throat through nozzles. These jets create a vacuum at the intake which draws material in and accelerates it through the unit into the filter bag or attached hose. Contaminants remain contained within the clear suction tube and bag for operator protection.

Specifications

• Model (SKU): 6194
• Maximum recommended supply pressure: 80 PSIG (5.5 BAR) (typical operation noted at 80–100 PSIG)
• Air consumption: 15 SCFM (425 SLPM)
• Vacuum: approximately -32 in. H2O (≈ -8 kPa) (tested with bag attached)
• Sound level: 84 dBA (tested in vacuum mode with bag attached)
• Effective hole cleaning: up to 1-1/4" (32 mm) diameter at depths up to 18" (457 mm)
• Construction: die cast body, clear suction tube for containment
• Includes: Deep Hole Vac-u-Gun and reusable bag (for Model 6194)
