Suction air blow gun 6394

vacuumcleaningsafety

Overview
EXAIR's Model 6394 Deep Hole Vac-u-Gun All Purpose System provides a portable pneumatic vacuum tool to remove chips and contaminants from grooves, containers and drilled holes. A small blow tube dislodges debris while the large clear suction tube contains and conveys material into a reusable bag, protecting the operator from flying chips. Suitable for holes up to 1-1/4" (32 mm) diameter and depths up to 18" (457 mm). Recommended compressed air: 80-100 PSIG (5.5-6.9 BAR).

Applications

• Holes in fixtures
• Drilled plastics
• T-slots and groove cleaning
• Coolant evacuation from parts
• Woodworking debris removal
• Container and bottle cleaning
• Tapped holes
• Cupped surfaces and cavities
• Punch press tables

Advantages

• Low cost solution
• No moving parts — maintenance free
• Durable die-cast construction
• No electrical supply required — eliminates shock hazard
• Meets OSHA pressure and chip guard requirements
• Safe operation — particles contained within the clear suction tube
• Lightweight and portable
• Quiet operation
• Low compressed air consumption

Styles

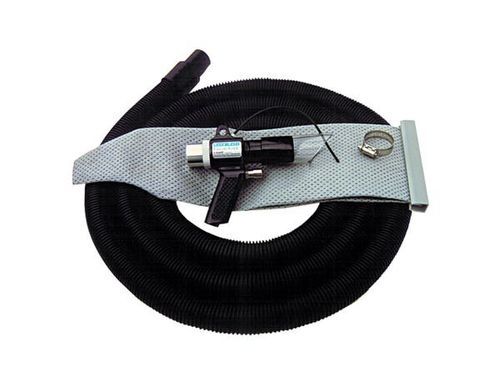

Available Deep Hole Vac-u-Gun styles: Model 6194 with Bag; Model 6394 All Purpose System (this product: includes Deep Hole Vac-u-Gun, reusable bag, and 10' (3 m) of vacuum hose at 1-1/2" (38 mm) I.D.); Model 6094 Deep Hole Vac-u-Gun Only (gun without fittings or accessories).

What's Included?

• Deep Hole Vac-u-Gun
• Reusable bag
• 10' (3 m) of vacuum hose, 1-1/2" (38 mm) I.D.

Performance
Typical conditions (tested in vacuum mode with bag attached): Supply pressure: 80 PSIG (5.5 BAR); Air consumption: 15 SCFM (425 SLPM); Vacuum: -32" H2O (approx. -8 kPa); Sound level: 84 dBA.

How It Works
When the trigger is depressed compressed air flows into an annular plenum. A small portion of air is directed into the blow tube to lift chips while larger jets inject air into the throat to create vacuum at the intake. Material is drawn through the clear suction tube and exhausted into the filter bag or connected hose.

Technical specifications

• Model / SKU: 6394
• Brand: EXAIR
• Product type: Deep Hole Vac-u-Gun All Purpose System
• Suitable hole diameter: up to 1-1/4" (32 mm)
• Maximum effective depth: 18" (457 mm)
• Typical supply pressure: 80 PSIG nominal; recommended 80-100 PSIG (5.5-6.9 BAR)
• Air consumption: 15 SCFM (425 SLPM)
• Vacuum: -32" H2O (approx. -8 kPa) (tested in vacuum mode with bag attached)
• Sound level: 84 dBA (tested in vacuum mode with bag attached)
• Included hose: 10' (3 m) vacuum hose, 1-1/2" (38 mm) I.D.
• Construction: die-cast body; no moving parts
• Operation: pneumatic (no electricity), portable and lightweight
• Compliance: meets OSHA pressure and chip guard requirements
