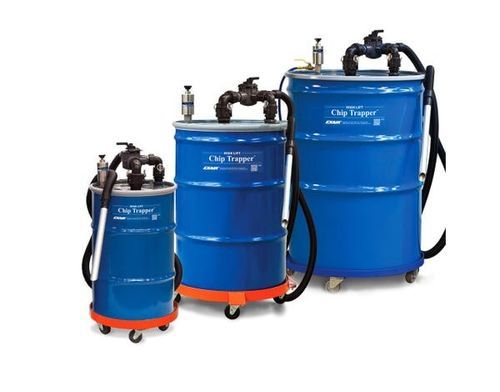

Chip drum vac Model 6190

industrialwetliquids

Overview
EXAIR's patented High Lift Chip Trapper™ provides an efficient method to remove chips, swarf and shavings from used coolants and other contaminated liquids in sumps, pits and tanks. The unit vacuums liquid containing solids into a reusable filter bag and returns only the filtered liquid to the process or storage drum. It is suited for machine sumps, parts washers, tanks and bulk storage of contaminated fluids.

Warning
Do not use with low flash point or flammable liquids such as fuel oil, alcohol, mineral spirits, gasoline, or kerosene.

Applications

• Below-grade coolant sumps
• Deep wells and pits
• Underground storage tanks and cisterns
• Drains and collection pits
• Deep hole broaching and machining sumps
• Bulk storage tanks and parts washers

Advantages

• Separates and removes solids from liquids for cleaner coolant reuse
• No electrical components — safe for wet environments
• No rotating or clog-prone mechanical parts
• Self-priming stainless-steel pump for reliable lift
• Built-in pressure/vacuum relief and automatic safety shutoff to prevent spills
• Includes drum and dolly for immediate deployment
• Quiet operation suitable for workshop environments

What's Included?

• High Lift Reversible Drum Vac two-way pump assembly (1/4 NPT)
• Directional flow valve
• 30, 55 or 110 gallon drum (choice of capacity)
• Lever-lock drum lid and safety shutoff valve
• 20' (6.1 m) flexible vacuum hose, 1-1/2" (38 mm) I.D.
• 20' (6.1 m) compressed air hose
• Chip wand
• Two reusable filter bags
• Drum dolly

Performance (typical)

• Pressure supply: 80 PSIG / 5.5 BAR
• Air consumption: 43 SCFM / ~1,218 SLPM
• Maximum lift: 180 in H2O / 336 mm Hg
• Water flow rate (filtered): ~30 GPM / 114 LPM
• Sound level: ~83 dBA

Specifications

• Brand: EXAIR
• Model / SKU: P6190
• Commercial name: High Lift Chip Trapper™ Vacuum System
• Available drum capacities: 30, 55 or 110 gallon (114 / 208 / 416 L)
• Pump assembly: High Lift Reversible Drum Vac two-way pump (1/4 NPT), self-priming stainless steel
• Air supply required: 80–100 PSIG (5.5–6.9 BAR)
• Air consumption: 43 SCFM (~1,218 SLPM)
• Maximum lift: 180 in H2O (336 mm Hg)
• Filtered liquid flow: ~30 GPM (114 LPM)
• Filter: Reusable filter bags (two included); typical rating referenced: 5 micron (see accessories)
• Hoses: 20' (6.1 m) flexible vacuum hose (1-1/2" / 38 mm I.D.) and 20' compressed air hose
• Included accessories: chip wand, lever-lock lid, safety shutoff valve, drum dolly
• Safety: No electricity required; built-in pressure/vacuum relief; automatic safety shutoff
• Noise level: ~83 dBA
• Patents: #8153001 and #8268179
