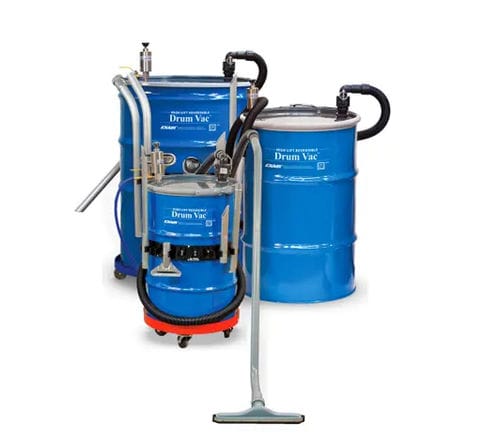

Reversible drum vac Model 6195

industrialwetliquids

Description
Compressed-air operated High Lift Reversible Drum Vac System from EXAIR attaches to closed-head 30, 55 or 110 gallon drums. The stainless steel two-way pump lifts liquids up to 15 feet (≈4.6 m) and can fill a 55 gallon drum in under 85 seconds. A simple knob reverses the pump to empty the drum. Not for use with low flash-point or flammable liquids (fuel oil, alcohol, mineral spirits, gasoline, kerosene).

Applications

• Below-grade coolant sumps
• Deep wells
• Underground storage tanks
• Pits and drains
• Deep hole broaching
• Bulk storage tanks
• Cisterns

Advantages

• No moving parts in the pump
• Maintenance-free operation
• Stainless steel construction
• No electricity required (air-powered)
• Built-in pressure/vacuum relief
• Compact and portable
• Quick installation
• Automatic safety shutoff to prevent spills
• Fits standard closed-head drums

Styles

• Standard: Compressed-air powered stainless steel two-way pump assembly with 1/4 NPT shutoff valve, 20' (6.1 m) of 1-1/2" (38 mm) I.D. vacuum hose with 90° quick-release elbow, and an aluminum wand; sized to selected closed-head drum (30, 55 or 110 gallons).
• Deluxe: Standard system plus drum dolly, ABS spill recovery kit, two extension wands, crevice tools, skimmer tool and tool holder; sized to chosen closed-head drum.
• Premium: Deluxe configuration plus a 30, 55 or 110 gallon drum, lid with locking ring and 20' (6.1 m) air hose for easier initial setup.
• Pump Only: High lift stainless steel two-way pump without attachments or accessories.

What's Included?

• Two-way pump assembly (1/4 NPT)
• Automatic safety shutoff valve
• 20' (6.1 m) flexible vacuum hose, 1-1/2" (38 mm) I.D.
• 90° quick-release elbow for 1-1/2" (38 mm) hose
• One aluminum wand

Performance
Pressure supply: 80 PSIG (5.5 BAR)
Air consumption: 43 SCFM (1,218 SLPM)
Lift: 180" H2O (≈336 mm Hg) / up to 15 ft (≈4.6 m)
Water flow rate: 30 GPM (114 LPM)
Sound level: 83 dBA

How It Works
The flexible vacuum hose connects to the pump's barbed fitting. Set the pump knob to "fill" and open the compressed air supply (recommended 80–100 PSIG / 5.5–6.9 BAR); the pump draws liquid through the hose into the drum. Close the air supply when filling is complete; the automatic safety shutoff prevents overfilling. To empty, set the knob to "empty" and open the air supply to pump liquid out through the hose. Warning: Do not use with low flash-point or flammable liquids such as fuel oil, alcohol, mineral spirits, gasoline or kerosene.

Caractéristiques / Spécifications techniques

• Brand: EXAIR
• Product: High Lift Reversible Drum Vac System
• Product SKU (example): P6195
• Available drum capacities: 30, 55, 110 gallon (closed-head drums)
• Pump construction: Stainless steel two-way pump (no moving parts)
• Maximum lift: up to 15 feet (≈4.6 m)
• Recommended air supply: 80–100 PSIG (5.5–6.9 BAR)
• Air consumption: 43 SCFM (1,218 SLPM)
• Lift rating: 180" H2O (≈336 mm Hg)
• Water flow rate: 30 GPM (114 LPM)
• Sound level: 83 dBA
• Hose: 20' (6.1 m) of 1-1/2" (38 mm) I.D. vacuum hose
• Connections: 90° quick-release elbow for 1-1/2" hose; pump 1/4 NPT shutoff
• Included accessories (standard): aluminum wand, safety shutoff valve
• Deluxe/Premium options: dolly, spill recovery kit, extension wands, crevice & skimmer tools, tool holder, optional drum and lid with locking ring (Premium)
• Safety: automatic safety shutoff to prevent overfilling; not for flammable/low flash-point liquids
• Operation: compressed-air powered, no electricity required
