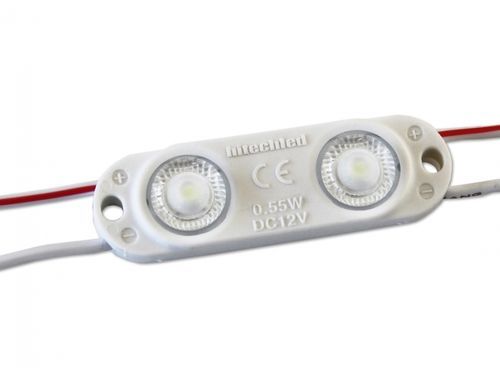

LED light module HM55-2 series

Overview
LED module for signage backlighting with a prismatic lens providing a 160° viewing angle for uniform light diffusion. Recommended for panels 40 mm to 120 mm thick. Equipped with high-quality 3M VHB adhesive and a removal tab for safe, fast installation.

Features

• Dimension: 47 x 14 mm
• Modules per chain: 70 pcs
• Fixing: 3M VHB adhesive with removal tab
• Consistent white light: < 3 SDCM
• Protection class: IP66/IP67
• Modules per packaging: 140 pcs

Available Models
Model | Color | CCT / λ | Luminous flux | Voltage | Power
HM55-2CW12 | Cool white | 8000 K | 60 Lm | 12 VDC | 0.55 W
HM55-2W12 | White | 6500 K | 60 Lm | 12 VDC | 0.55 W
HM55-2NW12 | Natural white | 4000 K | 60 Lm | 12 VDC | 0.55 W
HM55-2WW12 | Warm white | 3000 K | 58 Lm | 12 VDC | 0.55 W
HM55-2R12 | Red | 620/630 nm | 22 Lm | 12 VDC | 0.55 W
HM55-2G12 | Green | 520/530 nm | 41 Lm | 12 VDC | 0.55 W
HM55-2B12 | Blue | 460/470 nm | 11 Lm | 12 VDC | 0.55 W

Technical characteristics / specifications

• Lens: prismatic, 160° viewing angle
• Recommended panel thickness: from 40 mm to 120 mm
• Mounting: 3M VHB adhesive with removal tab
• Dimensions: 47 x 14 mm
• Operating voltage: 12 VDC
• Power: 0.55 W per module
• Luminous flux: typical 60 Lm (white variants); see Available Models for color-specific flux
• Color temperatures (white variants): 3000 K / 4000 K / 6500 K / 8000 K (depending on model)
• LED color peaks (colored variants): Red 620/630 nm, Green 520/530 nm, Blue 460/470 nm
• Color consistency: < 3 SDCM
• Protection rating: IP66 / IP67
• Modules per chain: 70 pcs
• Modules per packaging: 140 pcs
