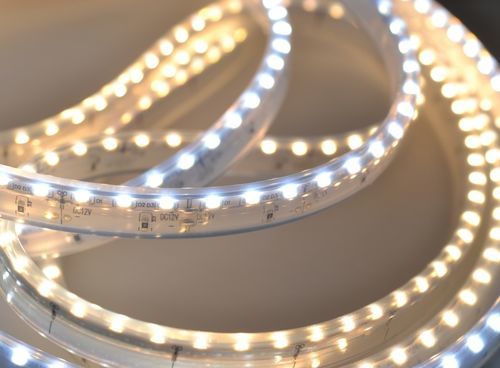

Strip lighting HS9-SV-120-12

LEDIP67IP30

Description HS9-SV is a side-flexible LED strip for linear lighting and luminous decoration where a very thin profile and lateral emission are required. Available in standard IP30 and in IP67 with extruded silicone for outdoor or wet environments. The strip is subdividable and the IP67 version can be terminated with special opal end caps to avoid visible light interruptions.

Features

• Fixing: 3M adhesive
• Subdivision: 25 mm
• End caps: Silicone caps (IP67 version: opal luminous caps available to avoid light interruptions)
• Voltage: 12 V DC
• LED density: 120 LEDs/m
• Power consumption: 9.6 W/m
• Standard length: 5 m
• Protection: IP30 or IP67 (extruded silicone)

Available models (Model | Color | Protection | CCT | Luminous flux) HS9-SV-120W12 | White | IP30 | 6000/6500 K | ~960 lm.
HS9-SV-120NW12 | Natural white | IP30 | 4000/4500 K | ~960 lm.
HS9-SV-120WW12 | Warm white | IP30 | 2700/3200 K | ~940 lm.
HS9-SV-120W12 | White | IP67 Extruded silicone | 6000/6500 K | ~960 lm.
HS9-SV-120NW12 | Natural white | IP67 Extruded silicone | 4000/4500 K | ~960 lm.
HS9-SV-120WW12 | Warm white | IP67 Extruded silicone | 2700/3200 K | ~940 lm.

Technical specifications

• Model: HS9-SV-120-12 (series HS9-SV)
• Voltage: 12 V DC
• LED density: 120 LEDs/m
• Power consumption: 9.6 W/m
• Standard length: 5 m
• Subdivision: 25 mm
• Fixing method: 3M adhesive
• End caps: Silicone caps (IP67 version: special opal luminous caps available)
• Protection rating: IP30 (standard) or IP67 (extruded silicone)
• Available CCT options: 6000/6500 K (White), 4000/4500 K (Natural White), 2700/3200 K (Warm White)
• Luminous flux (typical): ~960 lm (white/natural white variants), ~940 lm (warm white variants)
• Form factor: Side-flexible linear strip suitable for lighting applications and luminous decorations
• Notes: Subdividable; IP67 version avoids visible light interruptions when terminated with opal caps
