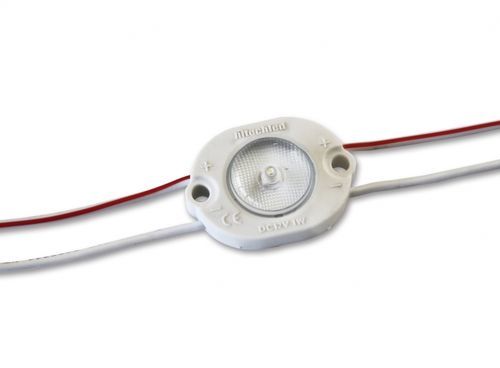

LED light module HM100-1

Product overview
LED module designed for backlighting low-thickness signage and lightboxes. Features a prismatic lens with a 165° viewing angle to ensure uniform light diffusion on textile and plexiglass panels. Recommended front panel thickness: 40–120 mm. High-quality 3M VHB adhesive with tab facilitates removal of the protective film for faster and safer installation.

Key features

• Prismatic lens with 165° viewing angle for uniform diffusion on textile and plexy.
• Recommended front panel thickness: 40 mm to 120 mm.
• High-quality adhesive: 3M VHB with tab for easy removal of protection film.
• Dimensions: 33 x 24 mm.
• Modules per chain: 50 pcs.
• Fixing: 3M VHB adhesive.
• Consistent white light: < 3 SDCM.
• Protection rating: IP66/IP67.
• Modules per packaging: 100 pcs.

Available Models
Model | Color | CCT | Luminous flux | Voltage | Power
HM100-1W12 | White | 6500 K | 98 lm | 12 VDC | 1 W

Technical specifications

• Product type: LED module for low-thickness signage backlighting.
• Viewing angle: 165° (prismatic lens).
• Recommended front panel thickness: 40 mm to 120 mm.
• Adhesive: 3M VHB with tab for easy removal of protection film.
• Dimensions: 33 x 24 mm.
• Protection rating: IP66/IP67.
• Color consistency: < 3 SDCM.
• Modules per chain: 50 pcs.
• Modules per packaging: 100 pcs.
• Electrical data (example model HM100-1W12): White, 6500 K, 98 lm, 12 VDC, 1 W.
