T8 LED tube LINEA

Product description

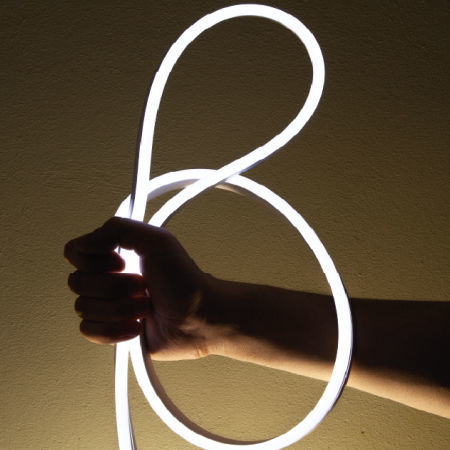

LINEA is a very thin flexible LED tube made from opal silicone. It is shapeable and designed for luminous decorations, ideal for creating letters and neon-like shapes. The profile and dimensions provide mechanical reliability and continuous light distribution. The tube can be cut at defined pitches and terminated with special opal silicone end-caps that become luminous to avoid visible dark spots.

Features

• Fixing: Polycarbonate transparent clips
• Subdivision (cut): 8.3 mm
• Ends: Silicone caps
• Voltage: 12 VDC
• LED density: 120 LEDs/m
• Power: 9.6 W/m
• Length: 5 m

Available models
HLC9E-120W12-5 | White | Cut 8.3 mm | 12 VDC – 9.6 W/m – 120 LEDs/m – 105 µm copper thickness – Colored silicone in paste – Rear soldering pads
HLC9E-120NW12-5 | Natural White | Cut 8.3 mm | 12 VDC – 9.6 W/m – 120 LEDs/m – 105 µm copper thickness – Colored silicone in paste – Rear soldering pads
HLC9E-120P12-5 | Pink | Cut 8.3 mm | 12 VDC – 9.6 W/m – 120 LEDs/m – 105 µm copper thickness – Colored silicone in paste – Rear soldering pads
HLC9E-120R12-5 | Red | Cut 8.3 mm | 12 VDC – 9.6 W/m – 120 LEDs/m – 105 µm copper thickness – Colored silicone in paste – Rear soldering pads
HLC9E-120Y12-5 | Yellow | Cut 8.3 mm | 12 VDC – 9.6 W/m – 120 LEDs/m – 105 µm copper thickness – Colored silicone in paste – Rear soldering pads
HLC9E-120G12-5 | Green | Cut 8.3 mm | 12 VDC – 9.6 W/m – 120 LEDs/m – 105 µm copper thickness – Colored silicone in paste – Rear soldering pads
HLC9E-120B12-5 | Blue | Cut 8.3 mm | 12 VDC – 9.6 W/m – 120 LEDs/m – 105 µm copper thickness – Colored silicone in paste – Rear soldering pads

Technical specifications

• Voltage: 12 VDC
• Power consumption: 9.6 W/m
• LED density: 120 LEDs/m
• Cutting pitch / subdivision: 8.3 mm
• Length: 5 m
• Copper thickness: 105 µm (for listed models)
• Material: Opal silicone profile (shapeable)
• Ends: Silicone caps (luminous when applied)
• Fixing accessory: Polycarbonate transparent clips
• Rear soldering pads: present on listed models
• Colored silicone in paste: used for colored models
