Visible LED HBK5-HE

stripscrew-infor lighting

Product overview

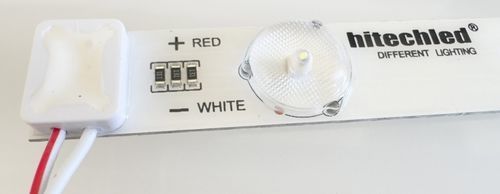

LED Bar Kit for linear contour channel lighting. Kit of 5 high-efficiency LED bars, each 960 mm long, forming a continuous light run of 4800 mm when connected. Suitable for moulding and logo lighting in petrol station canopies. Designed for quick, stable installation and protected with a full silicone resin coating for humid environments.

Key features

• Fixing: 3M adhesive and holes for screws
• Connection: Cables on both ends of the kit for series connection
• Voltage: 24 V DC
• LED quantity: 12 pcs per bar
• Power: 30 W per bar (or as specified in product data)
• Protection: IP65

Technical specifications

• Model: HBK5-HE (kit configuration)
• Configuration: Kit of 5 LED bars
• Length per bar: 960 mm
• Total light run length (connected): 4800 mm
• LEDs per bar: 12 pcs
• Rated voltage: 24 V DC
• Power: 30 W per bar
• Protection rating: IP65
• Fixing method: 3M adhesive and screw holes
• Connection: Cables on both ends of the kit for series connection
• Coating: Entire surface coated with silicone resin for protection in humid environments
• Application: Designed for moulding and logo lighting in petrol station canopies; suitable for linear contour channel lighting
• Design: Quick and stable application for installation
