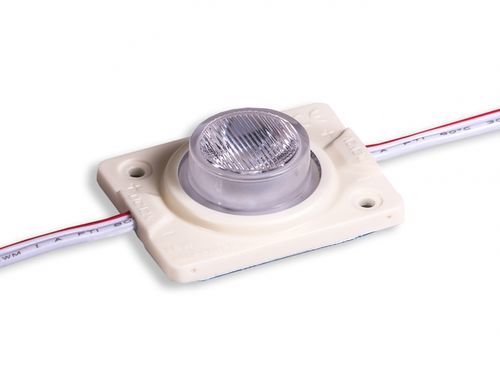

LED light module HM1LD

Product descriptionLED module designed for double-sided light boxes and signboards. Narrow-beam lens (52° × 12°) concentrates emission to generate optimal internal reflected illumination across both faces of the light box. Recommended box thickness: 100–200 mm. Thermal adhesive backing enables quick and secure mounting.

Features

• Dimensions: 43 × 36 × 14.8 mm
• Modules per chain: 30 pcs
• Fixing method: 3M thermal adhesive
• Protection class: IP65
• Modules per packaging: 60 pcs
• Operating voltage: 12 VDC
• Power (HM1LD): 1.8 W

Available modelsModel | Color | CCT | Luminous flux | Voltage | Power
HM30LAD-1W12 | White | 6000/6500 K | 158 lm | 12 VDC | 1.8 W
HM30LAD-1WW12 | Warm white | 2700/3200 K | 153 lm | 12 VDC | 1.8 W

Technical specifications

• Beam angle: 52° × 12° (narrow beam lens)
• Recommended light box thickness: 100 mm – 200 mm
• Thermal adhesive backing for fast, secure installation
• Dimensions: 43 × 36 × 14.8 mm
• Power (HM1LD): 1.8 W
• Operating voltage: 12 VDC
• Modules per chain: 30 pcs
• Modules per packaging: 60 pcs
• Fixing: 3M adhesive
• Protection class: IP65
