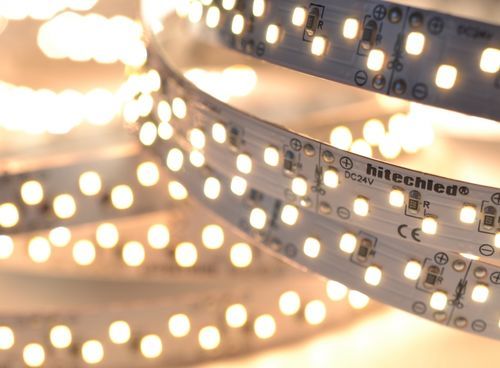

Strip lighting HS14-240-24

LEDIP30high-efficiency

Overview
Flexible LED strip for general lighting, luminaire manufacturing and architectural applications. Uses high-efficiency mini 2216 LEDs with low luminous decay; LEDs are arranged alternately behind an opal cover to reduce the point effect. Color Rendering Index (CRI) 90 enhances color fidelity of illuminated objects.

Features

• Fixing: 3M adhesive
• Subdivision (cutting pitch): 25 mm
• Ends: wires on both ends
• Voltage: 24 V DC
• LED density: 240 LED/m
• Power consumption: 14 W/m
• Standard length: 5 m

Available models (table)
Model | Color | Protection | CCT | Luminous flux
HS14N-240W24 | White | IP30 | 6500 K | 1250 lm/m
HS14N-240NW24 | Natural white | IP30 | 4000 K | 1250 lm/m
HS14N-240WW24 | Warm white | IP30 | 2800 K | 1200 lm/m
HS14S-240W24 | White | IP52 Dropped silicone | 6500 K | 1250 lm/m
HS14S-240NW24 | Natural white | IP52 Dropped silicone | 4000 K | 1250 lm/m
HS14S-240WW24 | Warm white | IP52 Dropped silicone | 2800 K | 1200 lm/m

Technical specifications

• LED type: mini 2216
• Color Rendering Index (CRI): 90
• Arrangement: LEDs arranged alternately to reduce point effect behind opal cover
• Low luminous decay
• Voltage: 24 V DC
• LED density: 240 LED/m
• Power consumption: 14 W/m
• Standard length: 5 m
• Fixing: 3M adhesive
• Subdivision (cutting pitch): 25 mm
• Ends: wires on both ends
