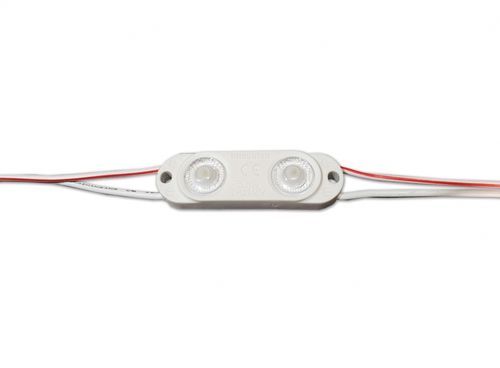

LED light module HM80-2 series

Product description
LED module designed for signage backlighting. Batwing lens with a 170° viewing angle provides homogeneous illumination for shallow sign boxes. Recommended panel thickness: 50–150 mm. 3M VHB adhesive with an integrated tab speeds removal of the protection film, reducing installation time by approximately 30%.

Key features

• Dimensions: 47 x 14 x 10 mm
• Modules per chain: 6 pcs
• Modules per packaging: 12 pcs
• Fixing: 3M VHB adhesive (tab for quick removal of protection film)
• Viewing angle: 170° (batwing lens)
• Recommended panel thickness: 50–150 mm
• Protection class: IP66 / IP67
• Operating voltage: 12 VDC
• Power: 0.8 W
• Luminous flux: 85 lm
• Available CCTs: 6500 K (W), 8000 K (CW)

Available models
HM80-2CW12 | Cool white | 8000 K | 85 lm | 12 VDC | 0.8 W
HM80-2W12 | White | 6500 K | 85 lm | 12 VDC | 0.8 W

Technical specifications

• Lens type: Batwing, 170° viewing angle
• Recommended panel thickness: 50–150 mm
• Dimensions: 47 x 14 x 10 mm
• Modules per chain: 6 pcs
• Modules per packaging: 12 pcs
• Fixing: 3M VHB adhesive (tab for quick removal of protection film)
• Protection class: IP66 / IP67
• Operating voltage (models): 12 VDC
• Power (models): 0.8 W
• Luminous flux (models): 85 lm
• Available CCTs: 6500 K (W), 8000 K (CW)
