Backlit backlight system HBK10-HE

Product description

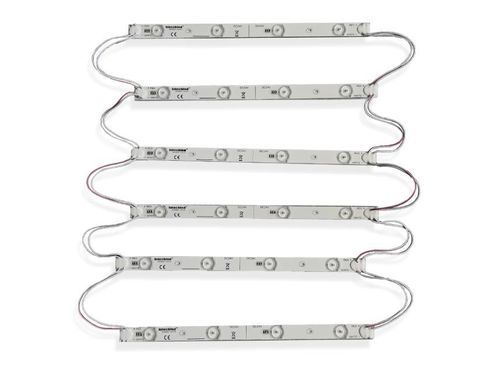

Kit of 10 high-efficiency LED bars connected together, designed for backlighting shallow lightboxes with tensioned textile or opal plexiglass. Prism optics combined with high-efficiency LEDs provide uniform light diffusion. Available in two bar lengths: 960 mm and 320 mm.

Features

• Fixing: 3M adhesive and holes for screws
• Connection: wired connection at both ends
• Voltage: 24 VDC
• Power per bar: 6 W (960 mm) or 2 W (320 mm)
• LED count: 12 LEDs (960 mm), 4 LEDs (320 mm)
• Recommended LED-to-surface distance: 30–80 mm

Model variants
HBK10-HE-12W24 | White | 7000 K | 960 Lm | 24 VDC – 6W | 960 mm
HBK10-HE-12NW24 | Natural white | 4000 K | 900 Lm | 24 VDC – 6W | 960 mm
HBK10-HE-12WW24 | Warm white | 3000 K | 870 Lm | 24 VDC – 6W | 960 mm
HBK10-HE-4W24 | White | 7000 K | 310 Lm | 24 VDC – 2W | 320 mm
HBK10-HE-4NW24 | Natural white | 4000 K | 300 Lm | 24 VDC – 2W | 320 mm
HBK10-HE-4WW24 | Warm white | 3000 K | 290 Lm | 24 VDC – 2W | 320 mm

Technical specifications

• Product type: Kit of 10 modular LED bars for backlighting shallow lightboxes
• Available lengths: 960 mm (6 W) and 320 mm (2 W)
• Nominal voltage: 24 VDC
• Power per bar: 6 W (960 mm) / 2 W (320 mm)
• Luminous flux per bar: 960 Lm (HBK10-HE-12W24), 900 Lm (HBK10-HE-12NW24), 870 Lm (HBK10-HE-12WW24), 310 Lm (HBK10-HE-4W24), 300 Lm (HBK10-HE-4NW24), 290 Lm (HBK10-HE-4WW24)
• Colour temperatures: 7000 K (white), 4000 K (natural white), 3000 K (warm white)
• LED configuration: 12 LEDs for 960 mm bar, 4 LEDs for 320 mm bar
• Optics: prism optics for high-efficiency light diffusion
• Mounting: 3M adhesive plus screw holes
• Connection: wired connections at both ends
• Recommended LED-to-surface distance: 30–80 mm
• Intended use: backlighting with tensioned textile or opal plexiglass
