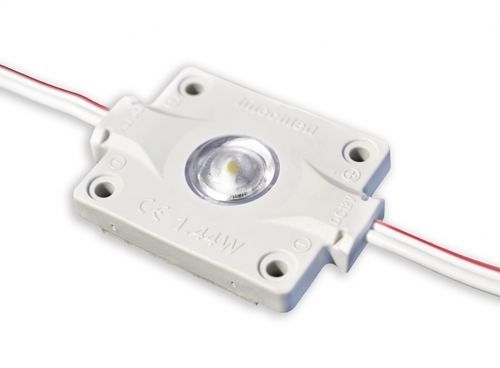

LED light module HM1P

Product overview
LED module for large-format signage backlighting with a prismatic lens providing a 160° viewing angle for uniform light diffusion on textile and plexy. Recommended panel thickness: 100 mm to 250 mm. High-quality 3M VHB adhesive with tab for quick and safe installation.

Features

• Prismatic lens with 160° viewing angle for uniform diffusion
• Recommended panel thickness: 100 mm to 250 mm
• High-quality 3M VHB adhesive with tab for easy removal of protection film
• Protection class: IP65
• Consistent white light: < 3 SDCM
• Modules per chain: 30 pcs
• Modules per packaging: 60 pcs

Dimensions
42 x 36 mm.

Available Models (listed on the page)

• HM30M-2 — 0,3 W
• HM30M-1 — 0,3 W
• HM55-2 — 0,55 W
• HM80-2 — 0,8 W
• HM100-1 — 1 W
• HM150-3 — 1,5 W
• HM48-HE-2 — 0,48 W
• HM82-HE-2 — 0,82 W
• HM96-HE-4 — 0,96 W
• HM164-HE-4 — 1,64 W
• HM3RGB — 0,72 W
• HM1P — 1,44 W
• HM1LD — 1,8 W
• HM35LADPN — 2,8 W

Product table (as shown on page)
Model | Color | CCT | Luminous flux | Voltage | Power
HM57-1W12 | White | 6500/7000 K | 132 Lm | 12 VDC | 1.44 W

Technical specifications

• Model: HM1P
• Power: 1.44 W
• Voltage: 12 VDC
• Dimension: 42 x 36 mm
• Fixing: 3M VHB adhesive (with tab for easy film removal)
• Recommended application thickness: 100 mm to 250 mm
• Modules per chain: 30 pcs
• Modules per packaging: 60 pcs
• Protection class: IP65
• Consistent white light: < 3 SDCM
