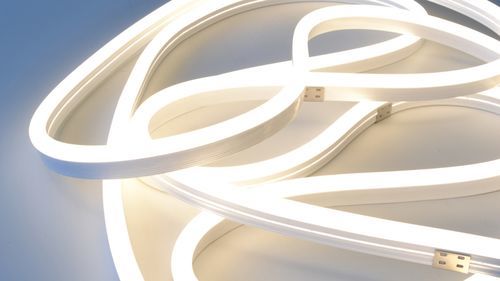

LED tube SPIRALE

Product overview
SPIRALE is a flexible LED tube made of opal silicone, designed for linear lighting applications. It can be mounted on an aluminium guide for straight runs or fixed with aluminium or steel clips for decorative shapes and letters simulating neon.

Key features

• Fixing: steel clips or aluminium guide
• Subdivision (cut step): 50 mm
• Ends: silicone caps with 4 types of cable entry
• Voltage: 24 V DC
• LED density: 120 LEDs per meter
• Power: 9.6 W per meter
• Standard length: 5 m

Available models
Model | Color | CCT / λd | LED luminous flux
HN9E-120W24-5-2 | White | 6000/6500 K | 540 lm/m
HN9E-120NW24-5-2 | Natural white | 4000/4500 K | 530 lm/m
HN9E-120WW24-5-2 | Warm white | 2700/3200 K | 480 lm/m
HN9E-120R24-5-2 | Red | 620–630 nm | 300 lm/m
HN9E-120G24-5-2 | Green | 520–525 nm | 455 lm/m
HN9E-120B24-5-2 | Blue | 463–475 nm | 130 lm/m

Characteristics / technical specifications

• Material: opal silicone tube
• Application: linear lighting, decorative shapes and letters (neon effect)
• Installation options: aluminium guide for straight runs or aluminium/steel clips for decorative fixings
• Cuttable and terminable with luminous opal end caps to avoid light interruptions
• Fixing: steel clips or aluminium guide
• Subdivision (cut step): 50 mm
• End caps: silicone caps with 4 cable entry types
• Rated voltage: 24 V DC
• LED density: 120 LEDs/m
• Power consumption: 9.6 W/m
• Standard length: 5 m
• Available colors and models with corresponding CCT / wavelength and luminous flux as listed above
